Over view:

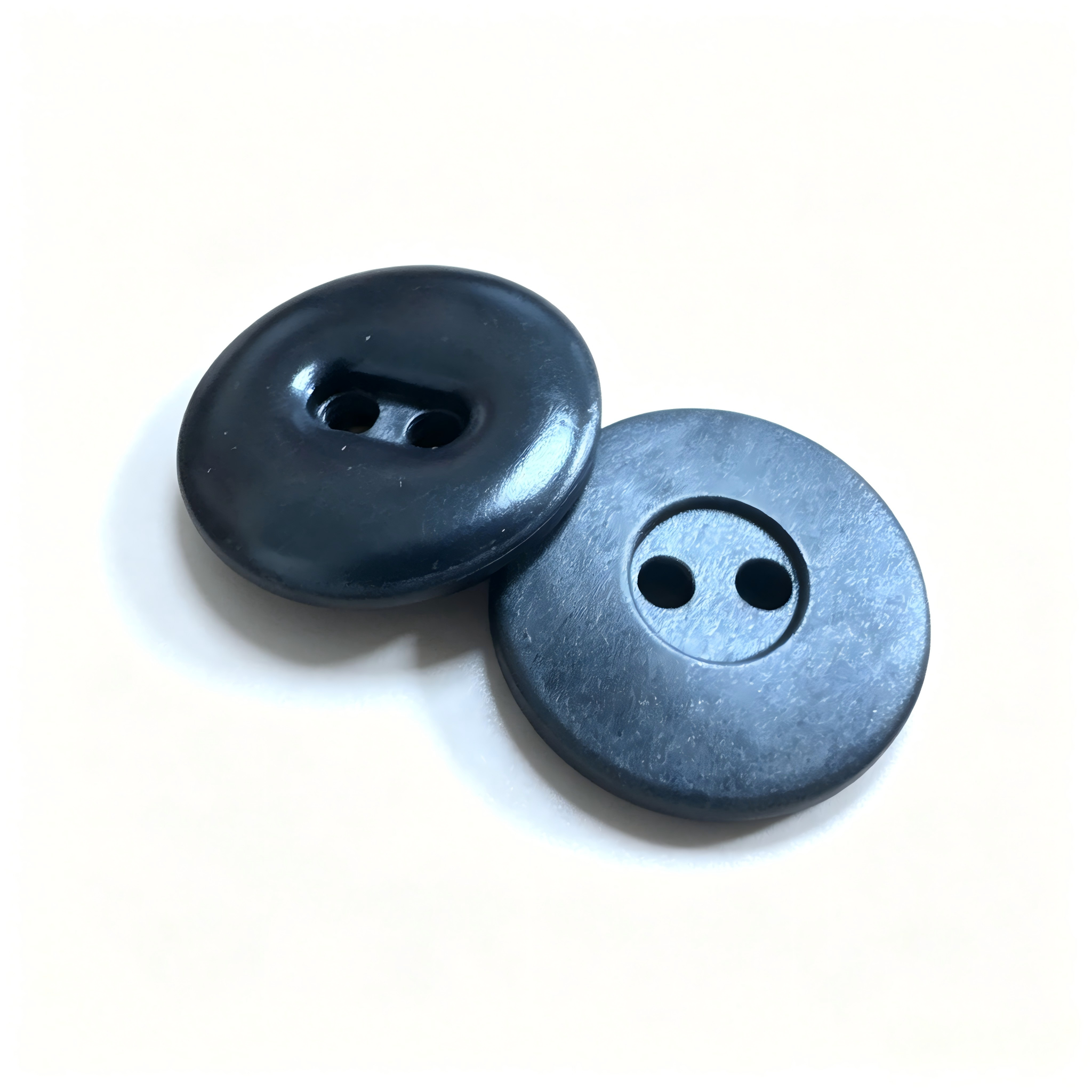

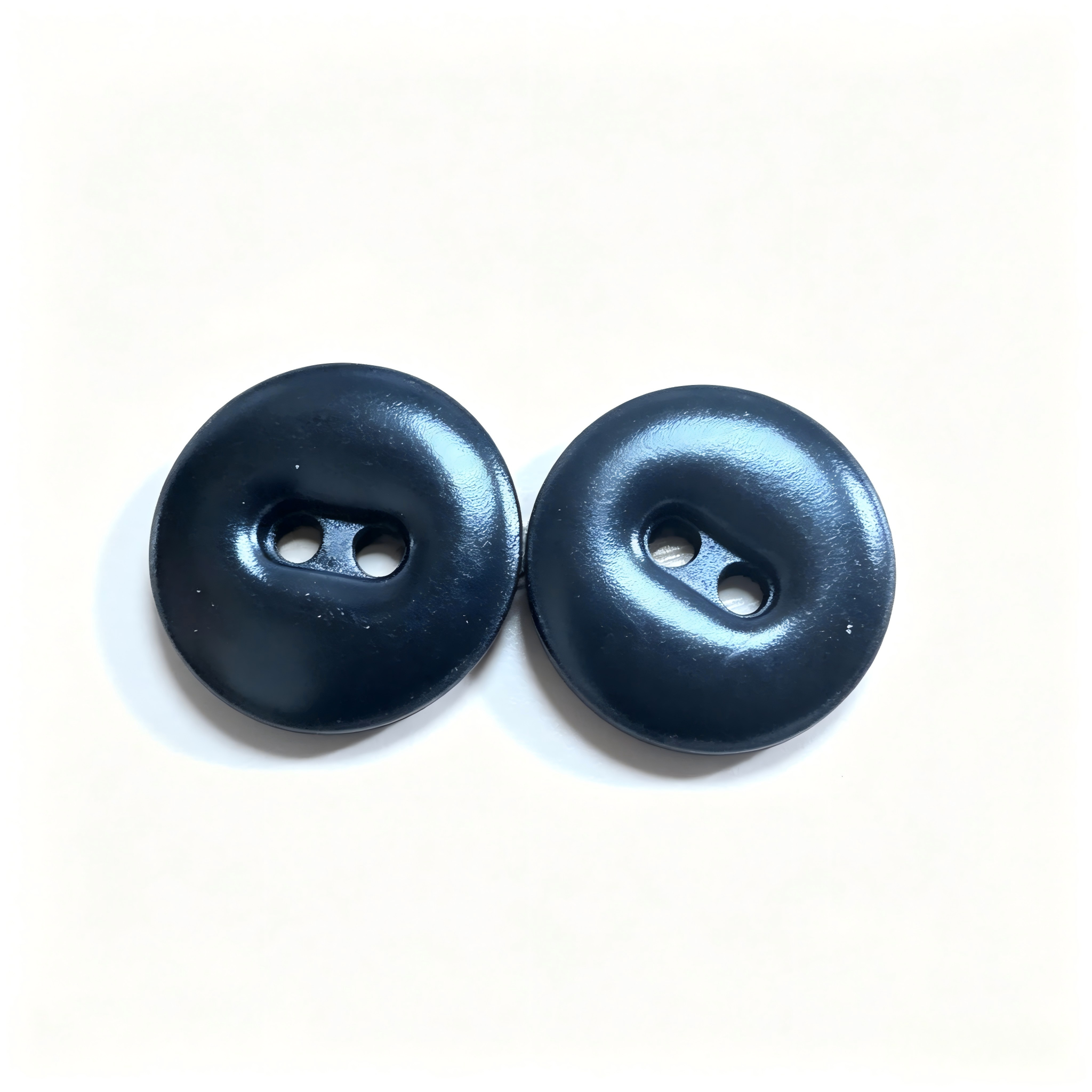

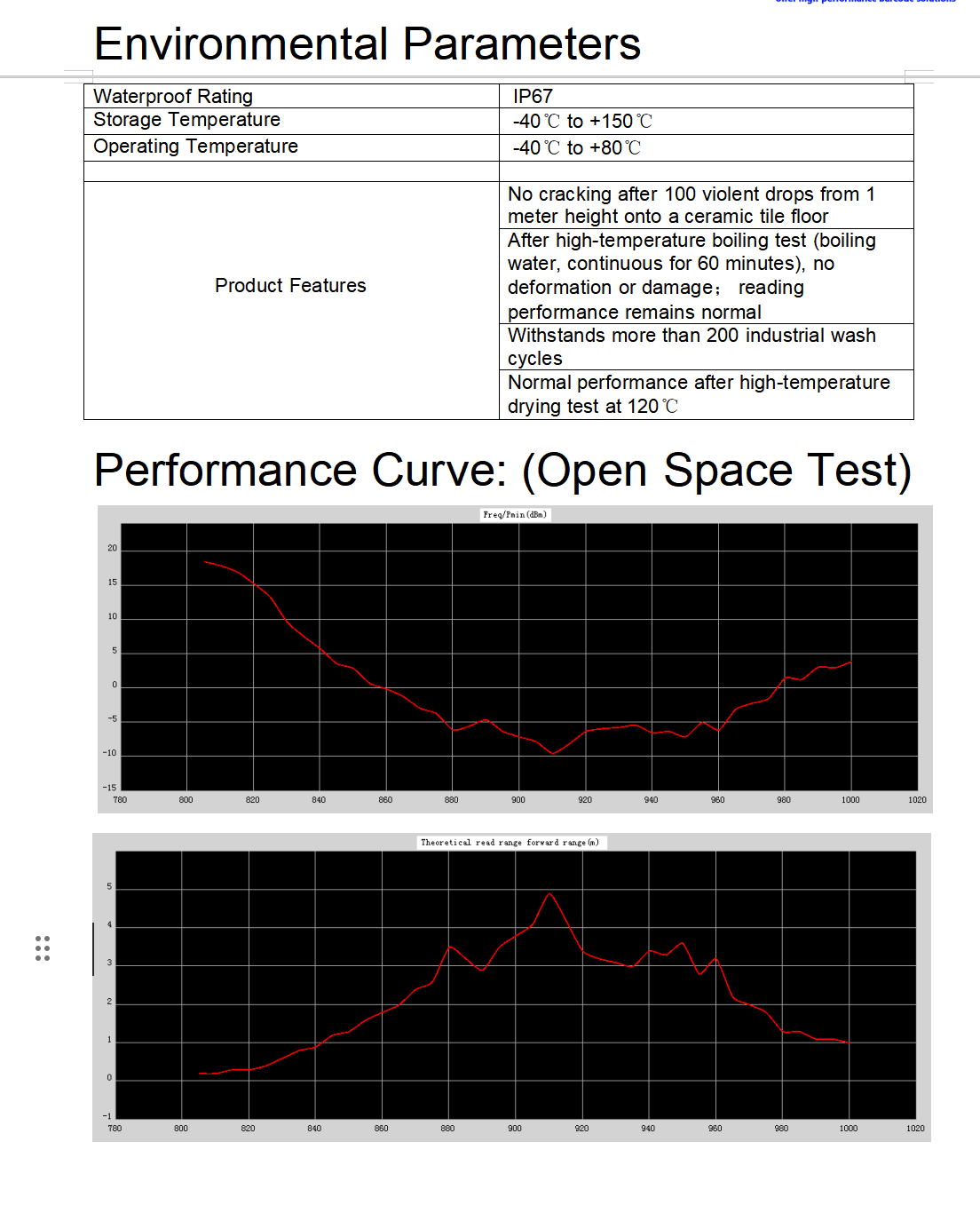

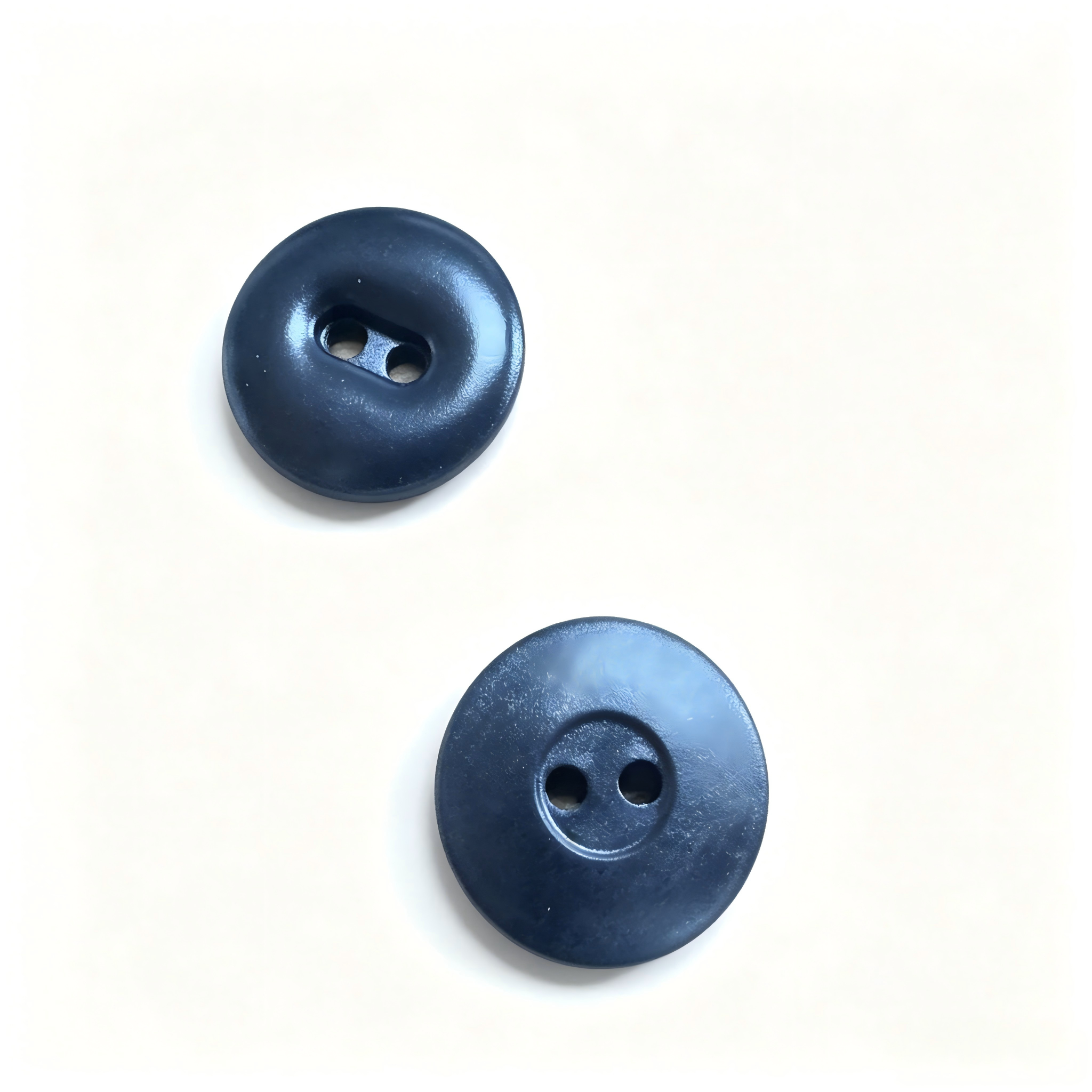

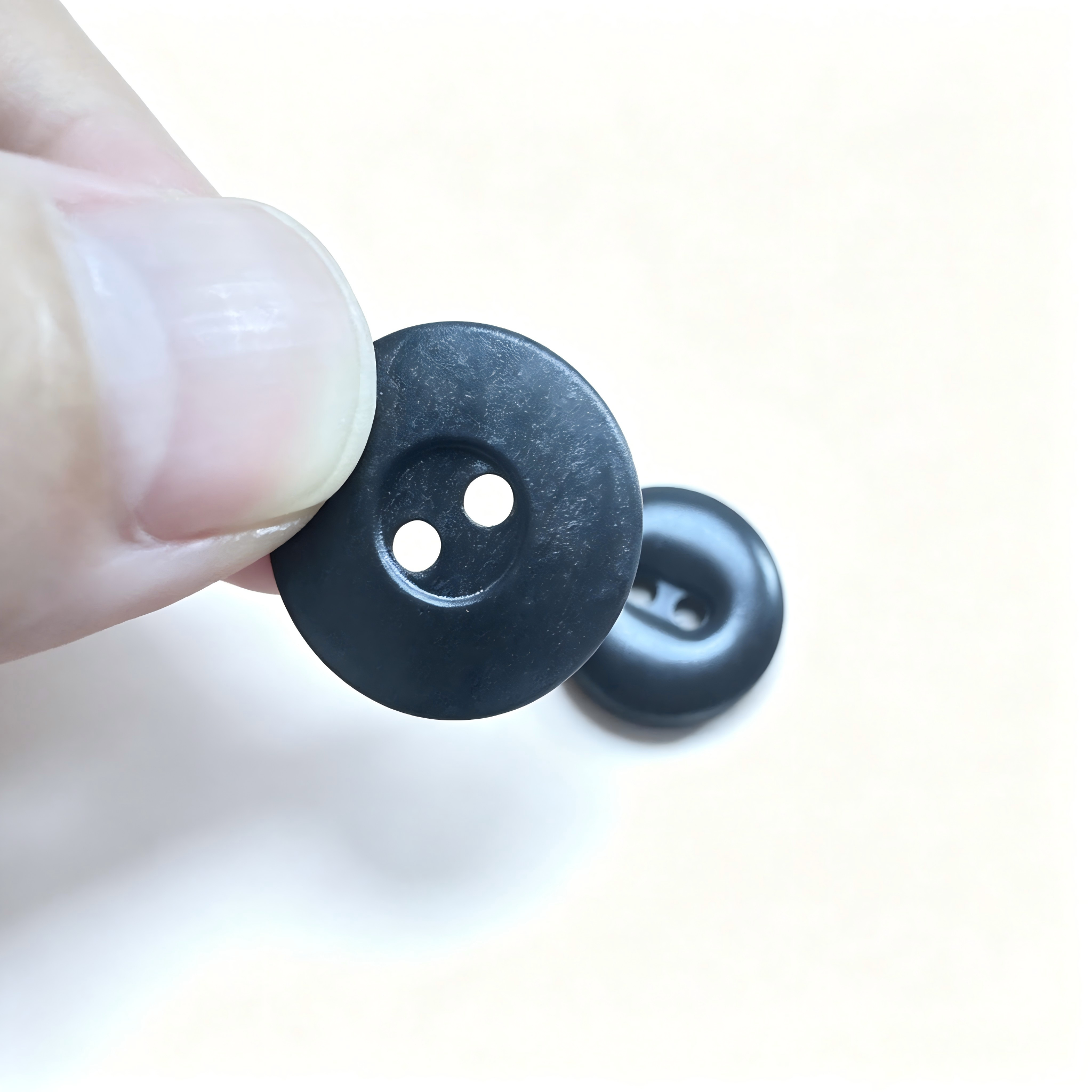

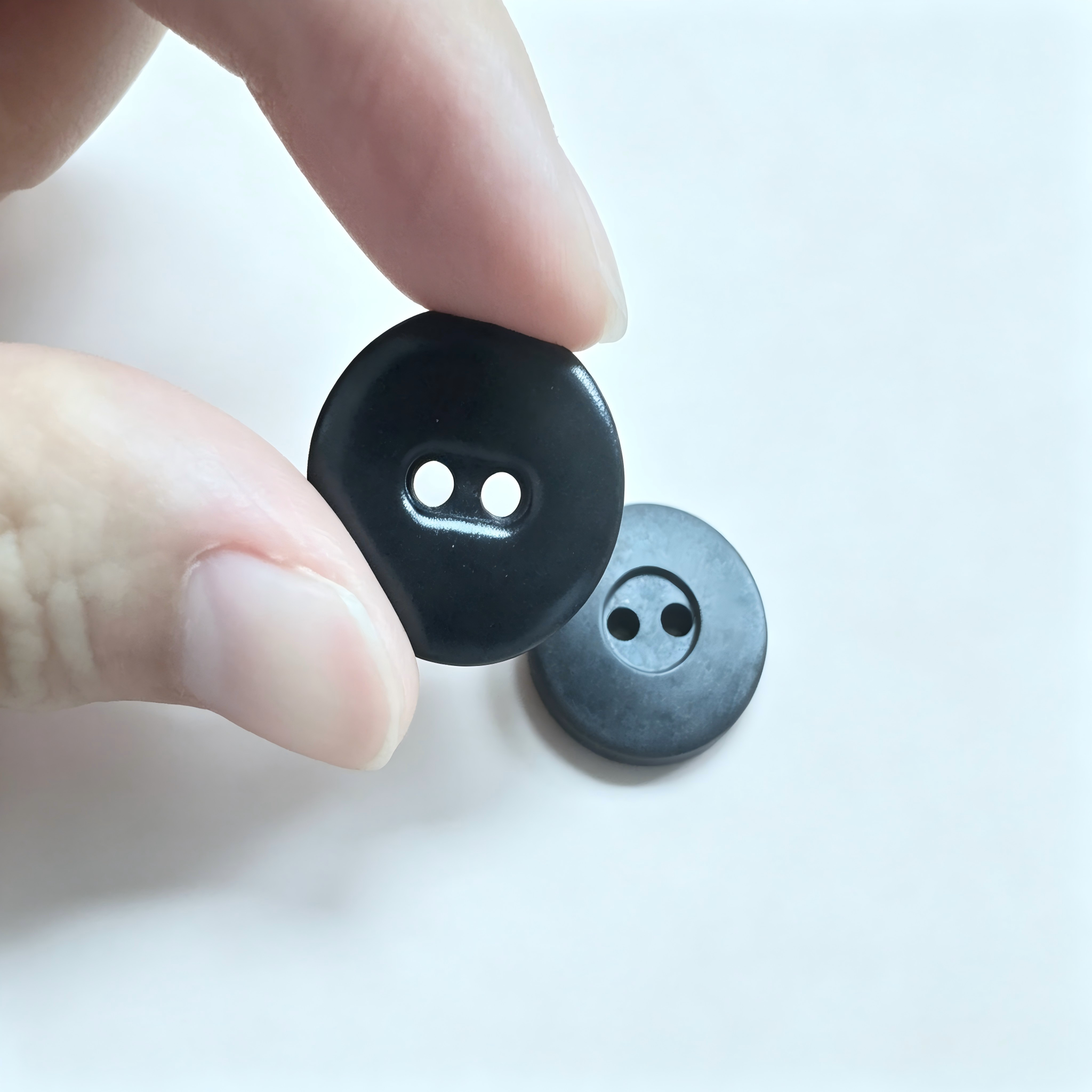

The 18mm UHF RFID PPS tag is built for industrial laundry, workwear, and medical garment tracking. Made of black PPS with high-temperature epoxy adhesive, it features two-hole sewing mounting and laser engraving. Utilizing the NXP U9/U9XE chip (EPC Class1 Gen2, ISO18000-6C), it offers 96/128-bit EPC memory. IP67 rated, it withstands 200+ wash cycles, 120°C drying, 60-minute boiling water, and 100+ 1-meter drops. Read range reaches 1.8m (fixed reader) or 0.6m (handheld). Operating temperature: -40°C to +80°C; storage: -40°C to +150°C. Data retention: 10 years; write endurance: 100,000 cycles.
Application :
Industrial Laundry
Used for linen and workwear washing management, withstanding over 200 industrial wash cycles.
Medical Garment Management
Used for tracking and inventory management of surgical gowns, patient uniforms, etc., meeting requirements for high-temperature disinfection and washing.
Personnel Patrol Management
Used for checkpoint identification of security or industrial patrol personnel, suitable for outdoor and harsh environments.

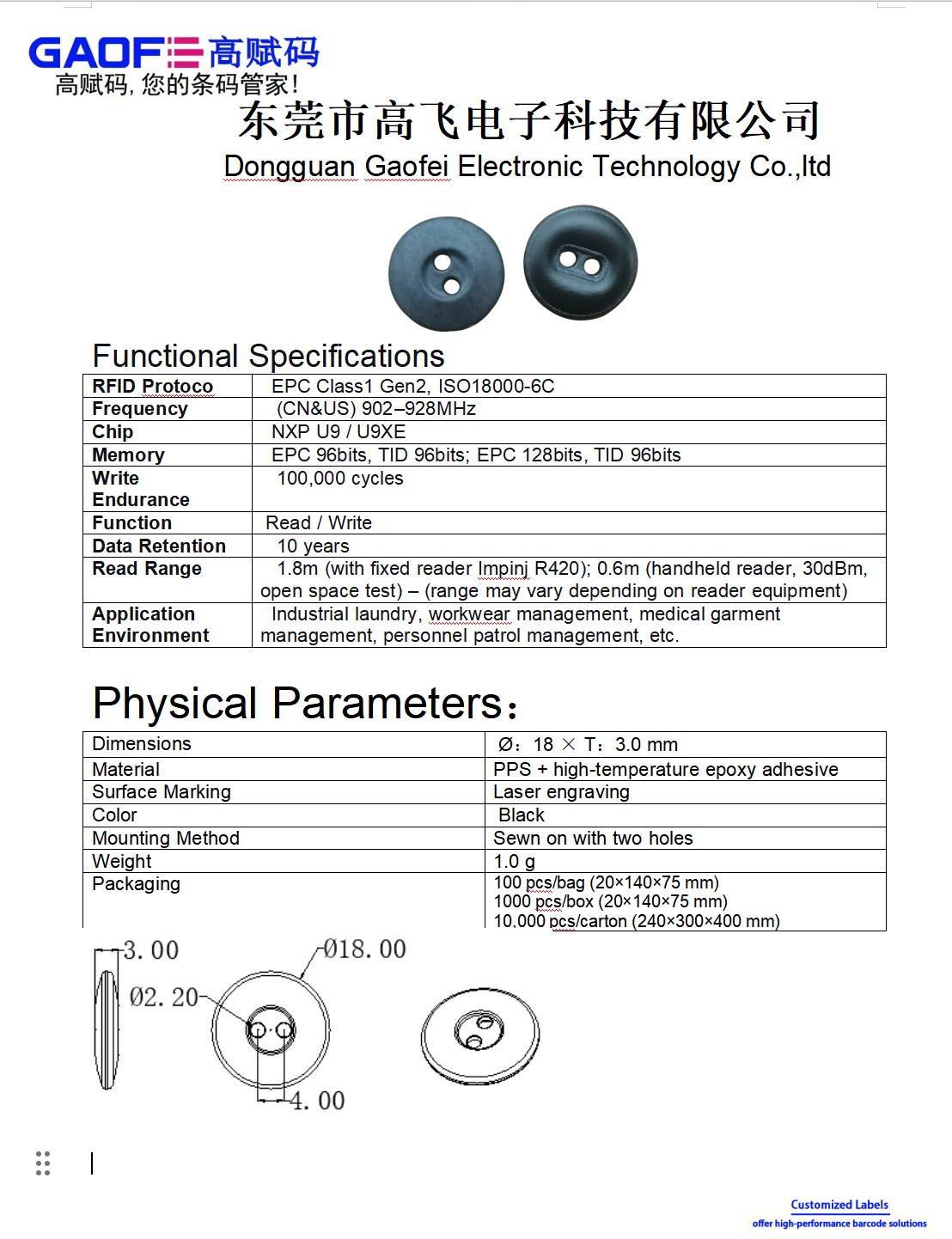

Specification
