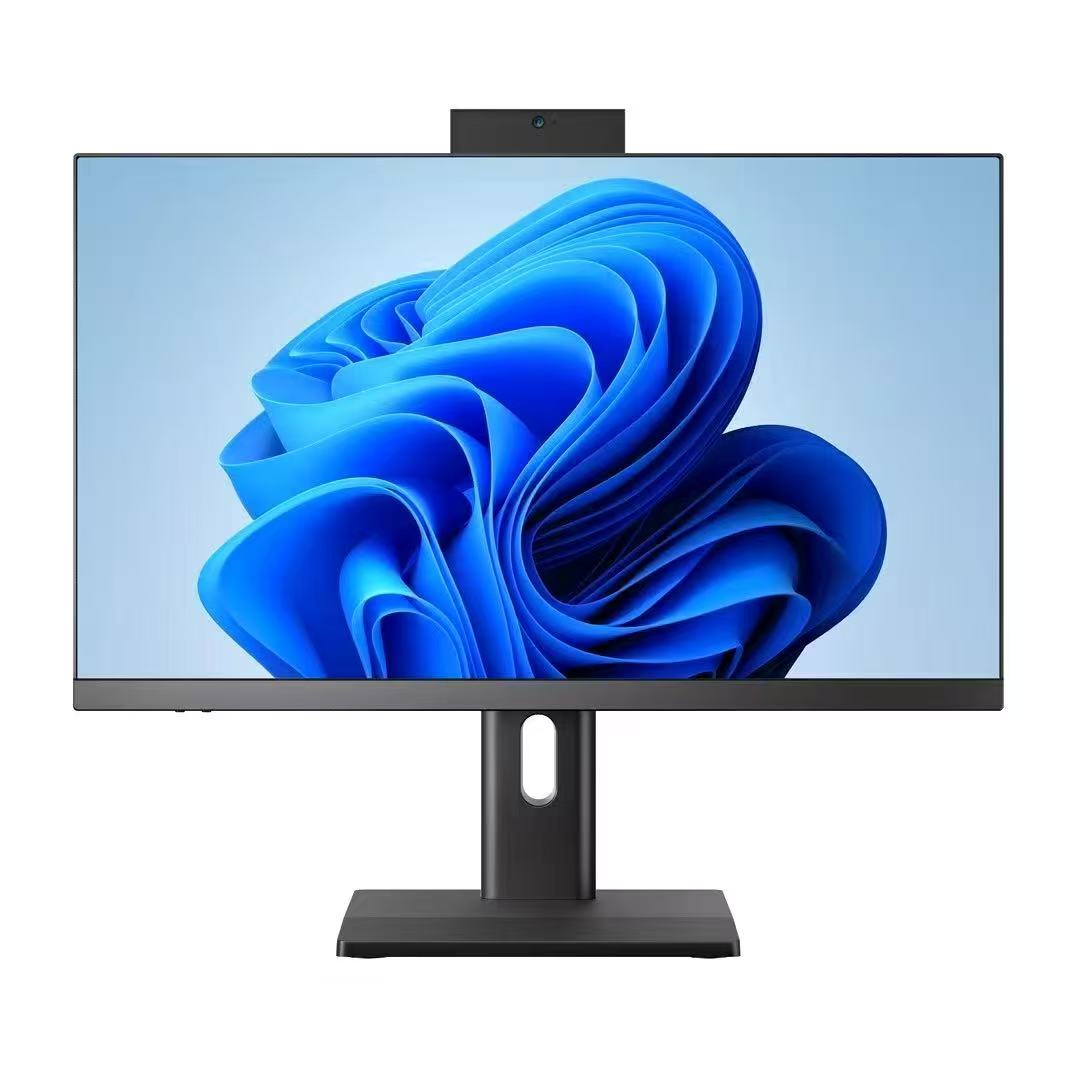

23.8'' Industrial Panel PC | Touch Screen All-in-One Computer with Intel i3/i5, 1080P Display, Fanless Mini-ITX, Windows/Linux Support

Overview

The 23.8-inch Industrial Panel PC is a rugged all-in-one solution designed for factory automation, industrial control, and HMI applications. Featuring a Full HD 1920×1080 display, optional capacitive touch screen, and Intel® Core™ i3/i5 processor, this Panel PC delivers high performance and reliable operation in demanding environments. With fanless design, Mini-ITX motherboard, multiple I/O ports, and compatibility with Windows and Linux systems, it offers excellent flexibility for industrial integration.

Feature

• 23.8" Full HD Display (1920×1080) – clear and sharp visuals for industrial applications

• Optional Multi-Point Capacitive Touch Screen – intuitive and user-friendly operation

• Powerful CPU Options – Intel® Core™ i3/i5 processors for stable performance

• Mini-ITX Motherboard – compact and reliable industrial-grade design

• Fanless Design – silent operation with enhanced reliability in dusty or harsh environments

• Flexible Storage Options – supports 2.5" SATA SSD/HDD and mSATA expansion

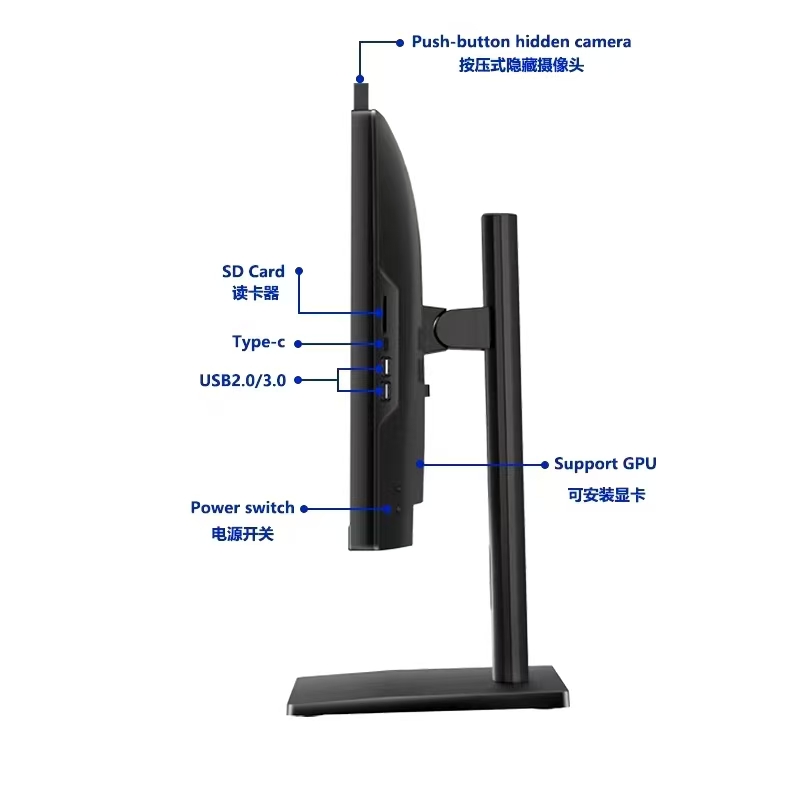

• Rich I/O Interfaces – USB 2.0/3.0, COM ports, LAN for wide connectivity

• OS Compatibility – Windows 7/8/10 and Linux Ubuntu supported

• Rugged & Durable – designed for continuous 24/7 operation in industrial environments

Appliacation

• Factory Automation – production line monitoring, machine control, and HMI systems

• Process Control – real-time data collection and equipment management

• Logistics & Warehousing – barcode scanning, tracking, and order management systems

• Energy & Utilities – monitoring power stations, water treatment, and smart grids

• Transportation – use in railways, ports, and intelligent transport systems

• Kiosk & Retail – interactive kiosks, digital signage, and POS terminals

Other Option

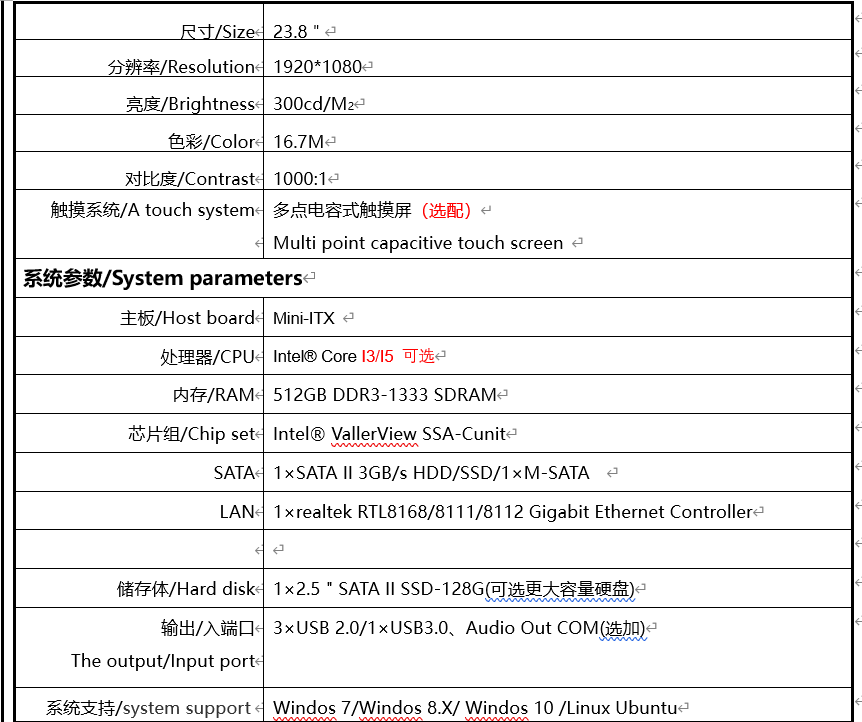

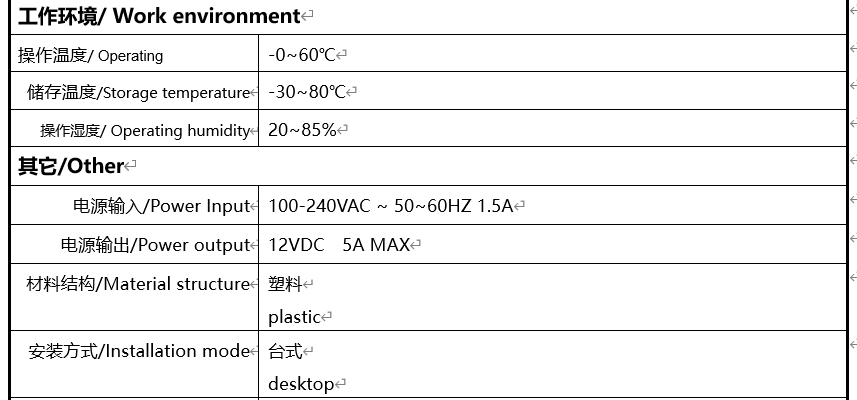

Specification
