B-536
GAOFE
Overview

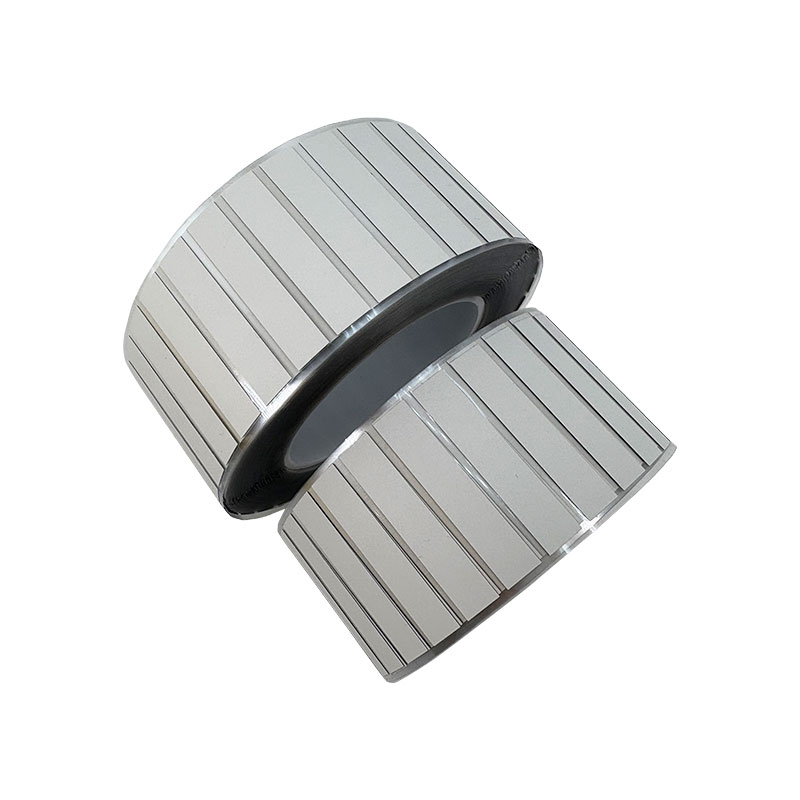

The B-536G high-temperature vulcanization label is designed specifically for the tire manufacturing industry and other high-heat applications. With excellent adhesion properties, it withstands the intense heat involved in the vulcanization process, offering a long-lasting, durable solution for identifying and tracking tire components. Ideal for use with both rubber and other vulcanized materials, these labels ensure reliable performance in even the most demanding environments.
Feature
High-Temperature Resistance: Capable of withstanding vulcanization temperatures from 170°C to 260°C, with short-term exposure to higher temperatures, making it perfect for automotive tire production and engine components.
Permanent Adhesion: Forms a permanent bond with the rubber or metal surface post-vulcanization, ensuring labels cannot be peeled off.
Chemical Resistance: Offers resistance to steam and vapors released during the rubber vulcanization process, including sulfur and ozone, ensuring label durability.
Print Compatibility: Compatible with thermal transfer and laser printers, ensuring that barcodes and other printed information remain scannable even after vulcanization.
Material: White PET substrate (125U), offering robust durability with no adhesive residue after heat application.
Matte Finish: Provides a glare-free surface, optimizing the label’s readability for automated visual inspection in production lines.
Application :
Tire Manufacturing: Ideal for high-temperature vulcanization processes in tire factories. The label remains firmly attached during and after the curing process.
Engine Components: Suitable for labeling components exposed to high temperatures, such as those found in automotive and engine manufacturing.
Rubber Parts: Can be applied to various rubber products that undergo heat treatment, ensuring strong adhesion and clear labeling through the vulcanization process.
Optimal Printing Solutions
Recommended Ribbons:
GAOFE TR4133 Vulcanized Resin Ribbon（https://www.dggaofe.com/GAOFE-TR4133-Resin-Ribbons-for-Vulcanized-Labels-Reliable-Long-Lasting-pd557183948.html）
Superior Temperature Resistance，Withstands continuous exposure to 200°C+ environments
Exceptional Adhesion Performance，Achieves ≥3N/inch bond strength post-vulcanization
Recommended Printer
Zebra ZT610 Industrial Printer (600DPI)
1.Wide Thickness Compatibility:
Supports labels from 0.06–0.51mm, ideal for thick vulcanized labels (typically 0.2–0.4mm), preventing jams or print pressure issues.
2. 600DPI Ultra-High Resolution:
Delivers crisp text, high-density barcodes
3.Fast Printing Without Compromise:
Up to 14 IPS (356 mm/s) speeds maintain efficiency for bulk tire label production.
Specification
| Performace | Test method | Typical test results | |
| Tested as per ASTMD 1000 | |||
| thickness | base | 0.125±0.005mm | |
| gule 1 | 0.014±0.002mm | ||
| gule2 | 0.025±0.003mm | ||
| Totally thickness | 0.164±0.007mm | ||
| Adhesion For stainless steel | Tested as per ASTM D1000 Test speed: 300mm/min, pasting 20min | ≥3N/inch | |
| Initial viscosity | The J.Dow method shall be tested according to the Chinese national standard GB-4852 | ≥3# | |
| glossiness | ≤10GU | ||
| Special carbon tape printing | clear | ||
| Vulcanization property | QLB-D:170'℃/20min | The label does not fall off , and the barcode is clear Clear scanning ,reading | |
Composition
Component | C.A.S. No. | Weight percentage |
Pressure sensitive adhesive | mixture | 10 - 15 |
PET polyester film | 25038 - 59 - 9 | 52 – 72 |
PET release membrane | mixture | 13 - 28 |
Hazardous ingredients: | none |
Health hazards
Main hazard: substances harmful to health may be produced if they are not treated according to the method
First aid measures
Skin contact: harmless
Eye contact: the gas generated by combustion will cause pain, red spots and other injuries to the skin.
Explosion characteristics and fire protection
Extinguishing method: foam, carbon dioxide and dry powder extinguishers.
Hazardous characteristics: produce irritating gas when burning.
Fire protection: wear self-contained breathing apparatus.
Leakage emergency treatment
Personal protection: avoid eye contact and other skin to prevent long-term contact with materials.
Environmental protection: recycle as much as possible. Those that cannot be recycled shall be burned and destroyed at the designated place.
Precautions for storage, transportation and use
Protective measures: avoid long-term contact and wear gloves.
Storage conditions: The storage environment should be cool and dry, keep good ventilation,and avoid rain and moisture.
Protective measures
Protective measures: speed up air circulation and/or install appropriate air extractors in the plant area.
Personal protection:
Hands: Do not touch for a long time.
Eyes: Do not touch directly, wear goggles.
Skin/body: Do not touch for a long time.
Physical and chemical properties
Property | Value |
Odor and color | white PET label |
Form | solid |
Natural temperature | not suitable |
Flash point | not applicable |
Burning point – LEL | not applicable |
Burning point – UEL | not applicable |
Boiling point | inadaptable |
Density | not applicable |
Steam density | not applicable |
Steam pressure | not applicable |
Specific gravity | not applicable |
PH value | not applicable |
Melting point | not applicable |
Solubility in water | zero |
Evaporation rate | not applicable |
Volatile content | not applicable |
Viscosity | not applicable |
Stability and reactivity
Stability: Stable under normal use and storage temperature.
Reactivity: basically inert at room temperature.
Harmful substances that can be decomposed into: irritating gas will be generated when burning.
Toxicological data
Inhalation: The dense steam at high temperature is irritating.
Skin contact: no irritation.
Environmental data
Residual time and degradability: non-biodegradable.
Ecological toxicity: insoluble in water, not directly released in water or environment.
Abandonment
Waste disposal of finished products: incinerate at the designated place.
Waste disposal of packaging materials: only incinerate at the approved waste disposal site.
Transportation information
International regulations: This product is not subject to international RID-ADR, IMO-IMDG and OACI-IATA regulations.
Regulatory information
Identification: This product is not subject to 88/379EEC.
Symbol: None.
Other information: comply with relevant regulations.
Others
Recommended use: vulcanization label labeling
Version No.: 4
Updated on: May 7, 2021
Note: This safety technical specification follows the international standard ISO 11014-1. This information is based on the best professional knowledge of our company at the time of the release of the safety technical specification. The information and data are accurate and true. Users should pay attention to other possible hazards when using this product outside the recommended range. In this case, the user needs to conduct a comprehensive evaluation of the item. This safety data sheet can only be used and copied if necessary measures have been taken for health protection, safety and environmental protection. The codes of reference information, control clauses and use documents of legislative bodies are not exhaustive. It is the user's responsibility to pass all the information contained in this manual to any subsequent personnel who will contact, use and dispose of this product in any way.
