CAB Squix 4 Industrial Label Printer – High Efficiency and High Resolution Printer

Overview

The SQUIX 4 is a professional-grade industrial barcode printer from cab's bestselling A+ series successor line. Made in Germany, it combines intuitive operation with rugged reliability for demanding environments. Key highlights include:

• Modular design with aluminum chassis for extreme durability

• Supports both thermal transfer (300 dpi) and direct thermal printing

• Features a 4.3" color touchscreen with multilingual interface

•

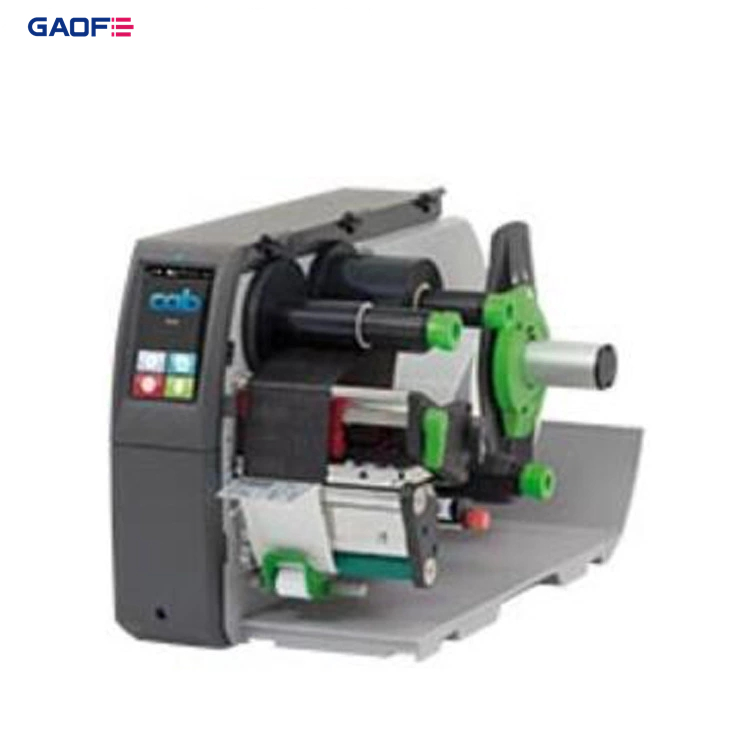

• Automatic label peeling option available (P-version shown below)

 Industry Applications

Core Industries Served:

• Electronics Manufacturing
  Scenario: PCB labeling (handles tiny 4x4mm labels)
  Solution: Precise tracking of circuit boards through production

• Industrial Logistics
  Scenario: Pallet/outer case labeling (up to DIN A5 size)
  Solution: High-speed shipping label printing at 300mm/s

• Aerospace & Automotive
  Scenario: Serial number plates (600dpi high-resolution)
  Solution: Permanent asset identification with crisp barcodes

• Pharmaceuticals
  Scenario: Compliance labeling
  Solution: Meets strict regulatory marking requirements

Problem-Solving Capabilities

Pain Points Addressed:

• Space Constraints
  Processes ultra-small labels (from 4mm) for compact components

• Harsh Environments
  Withstands temperatures 5-40°C at 85% humidity (IP rating not specified)

• Integration Challenges
  Offers multiple connectivity: Ethernet, WLAN, Bluetooth, USB, RS232

• Downtime Reduction

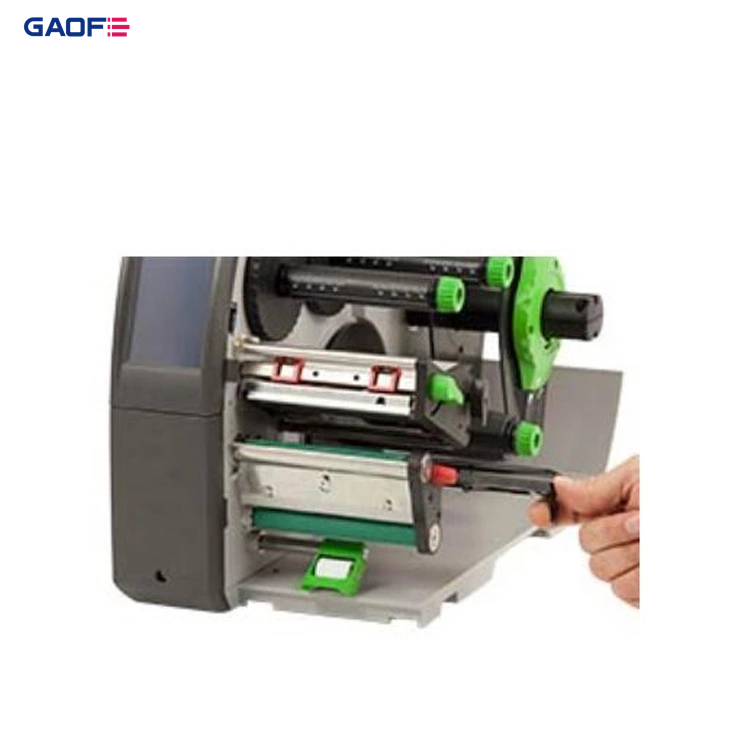

  Quick-change printhead system (<5 min replacement)

Technical Specifications

Advanced Features:

• SAP-certified integration

• Built-in label rewinder for peeler models

• Supports cablabel S3 design software and major third-party label programs

The SQUIX 4 delivers German-engineered precision for industrial identification needs, backed by global support from cab's service network. Its modular design allows customization for specialized applications through optional accessories like the G1000 labeling arm.

Optimal Printing Solutions

1. Recommended Ribbons

2. Recommended Labels

• universal thermal transfer label、high temperature label


Other Options

Accessories:

• External cutter (for continuous shrink tube cutting)

• Unwinder (supports large rolls up to 390mm diameter)

• USB Bluetooth adapter (wireless barcode scanner pairing)

Software:

• CABLabel S3 Pro (advanced label design + database integration)

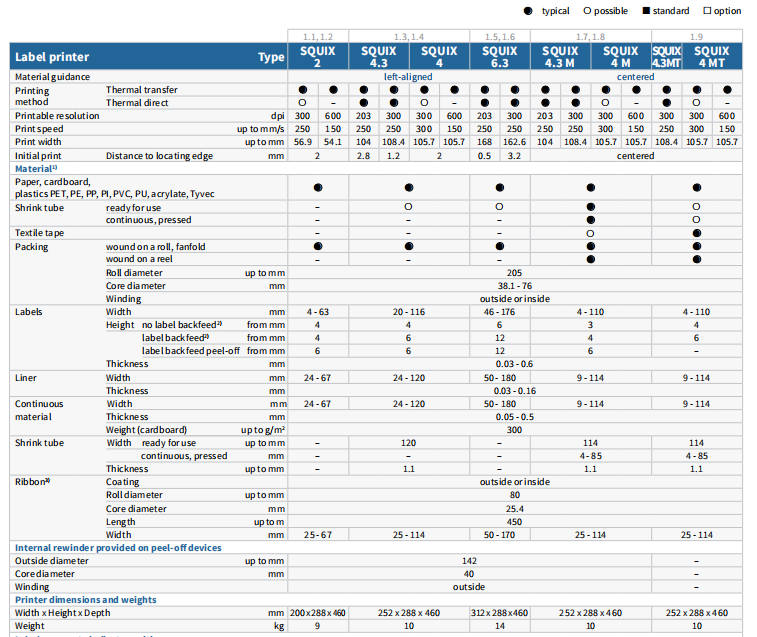

Specifications
