Overview

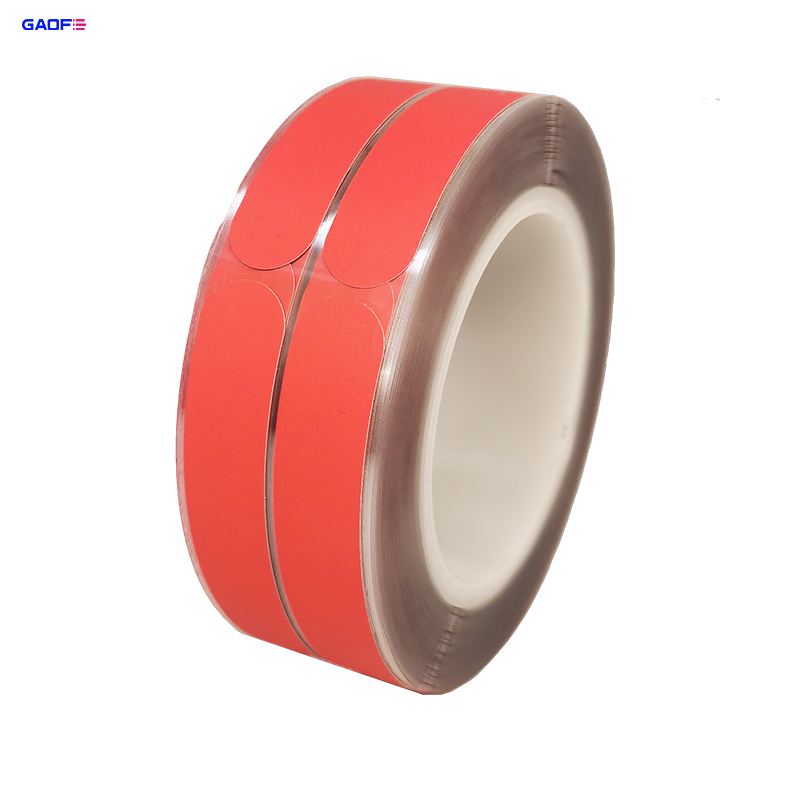

The Colorful PET Polyester Film Vulcanized Tire Label is specifically engineered for extreme conditions in tire manufacturing and rubber vulcanization processes. Made from high-performance polyester (PET) film, this label maintains excellent stability, adhesion, and print clarity during high-temperature curing cycles.
Designed for modern tire factories, it provides reliable identification throughout the vulcanization stage, ensuring traceability, batch control, and process efficiency. The colorful design enhances visibility, making it ideal for fast-paced industrial environments.
Specification
| Performace | Test method | Typical test results |
| Tested as per ASTMD 1000 |
|
| thickness | base | 0.125±0.005mm |
| gule 1 | 0.014±0.002mm |
| gule2 | 0.025±0.003mm |
| Totally thickness | 0.164±0.007mm |
Adhesion
For stainless
steel | Tested as per ASTM D1000
Test speed: 300mm/min, pasting 20min | ≥3N/inch |
|
|
| Initial viscosity | The J.Dow method shall be tested according
to the Chinese national standard GB-4852 | ≥3# |
| glossiness |
| ≤10GU |
| print | Special carbon tape printing | clear |
| Vulcanization property | QLB-D:170'℃/20min | The label does not fall off ,
and the barcode is clear
Clear scanning ,reading |
Composition
Component | C.A.S. No. | Weight percentage |
Pressure sensitive adhesive | mixture | 10 - 15 |
PET polyester film | 25038 - 59 - 9 | 52 – 72 |
PET release membrane | mixture | 13 - 28 |
Hazardous ingredients: | none |
|
Health hazards
Main hazard: substances harmful to health may be produced if they are not treated according to the method
First aid measures
Skin contact: harmless
Eye contact: the gas generated by combustion will cause pain, red spots and other injuries to the skin.
Explosion characteristics and fire protection
Extinguishing method: foam, carbon dioxide and dry powder extinguishers.
Hazardous characteristics: produce irritating gas when burning.
Fire protection: wear self-contained breathing apparatus.
Leakage emergency treatment
Personal protection: avoid eye contact and other skin to prevent long-term contact with materials.
Environmental protection: recycle as much as possible. Those that cannot be recycled shall be burned and destroyed at the designated place.
Precautions for storage, transportation and use
Protective measures: avoid long-term contact and wear gloves.
Storage conditions: The storage environment should be cool and dry, keep good ventilation,and avoid rain and moisture.
Protective measures
Protective measures: speed up air circulation and/or install appropriate air extractors in the plant area.
Personal protection:
Hands: Do not touch for a long time.
Eyes: Do not touch directly, wear goggles.
Skin/body: Do not touch for a long time.
Physical and chemical properties
Property | Value |
Odor and color | white PET label |
Form | solid |
Natural temperature | not suitable |
Flash point | not applicable |
Burning point – LEL | not applicable |
Burning point – UEL | not applicable |
Boiling point | inadaptable |
Density | not applicable |
Steam density | not applicable |
Steam pressure | not applicable |
Specific gravity | not applicable |
PH value | not applicable |
Melting point | not applicable |
Solubility in water | zero |
Evaporation rate | not applicable |
Volatile content | not applicable |
Viscosity | not applicable |
Stability and reactivity
Stability: Stable under normal use and storage temperature.
Reactivity: basically inert at room temperature.
Harmful substances that can be decomposed into: irritating gas will be generated when burning.
Toxicological data
Inhalation: The dense steam at high temperature is irritating.
Skin contact: no irritation.
Environmental data
Residual time and degradability: non-biodegradable.
Ecological toxicity: insoluble in water, not directly released in water or environment.
Abandonment
Waste disposal of finished products: incinerate at the designated place.
Waste disposal of packaging materials: only incinerate at the approved waste disposal site.
Transportation information
International regulations: This product is not subject to international RID-ADR, IMO-IMDG and OACI-IATA regulations.
Regulatory information
Identification: This product is not subject to 88/379EEC.
Symbol: None.
Other information: comply with relevant regulations.
Others
Recommended use: vulcanization label labeling
Version No.: 4
Updated on: May 7, 2021
Note: This safety technical specification follows the international standard ISO 11014-1. This information is based on the best professional knowledge of our company at the time of the release of the safety technical specification. The information and data are accurate and true. Users should pay attention to other possible hazards when using this product outside the recommended range. In this case, the user needs to conduct a comprehensive evaluation of the item. This safety data sheet can only be used and copied if necessary measures have been taken for health protection, safety and environmental protection. The codes of reference information, control clauses and use documents of legislative bodies are not exhaustive. It is the user's responsibility to pass all the information contained in this manual to any subsequent personnel who will contact, use and dispose of this product in any way.
