Offer High-Performance Barcode Solutions
| Quantity: | |
|---|---|
GF-7871G
GAOFE

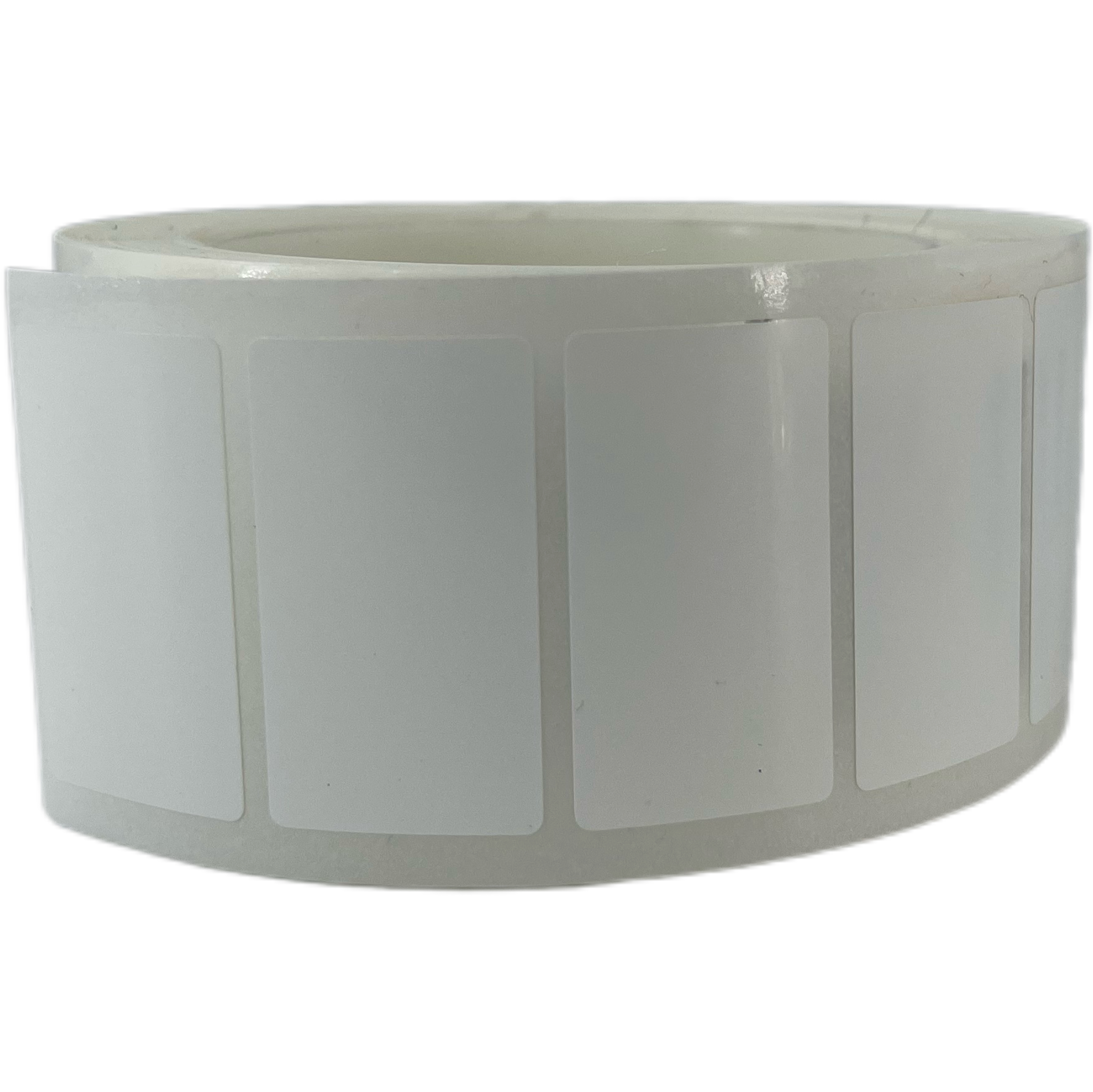

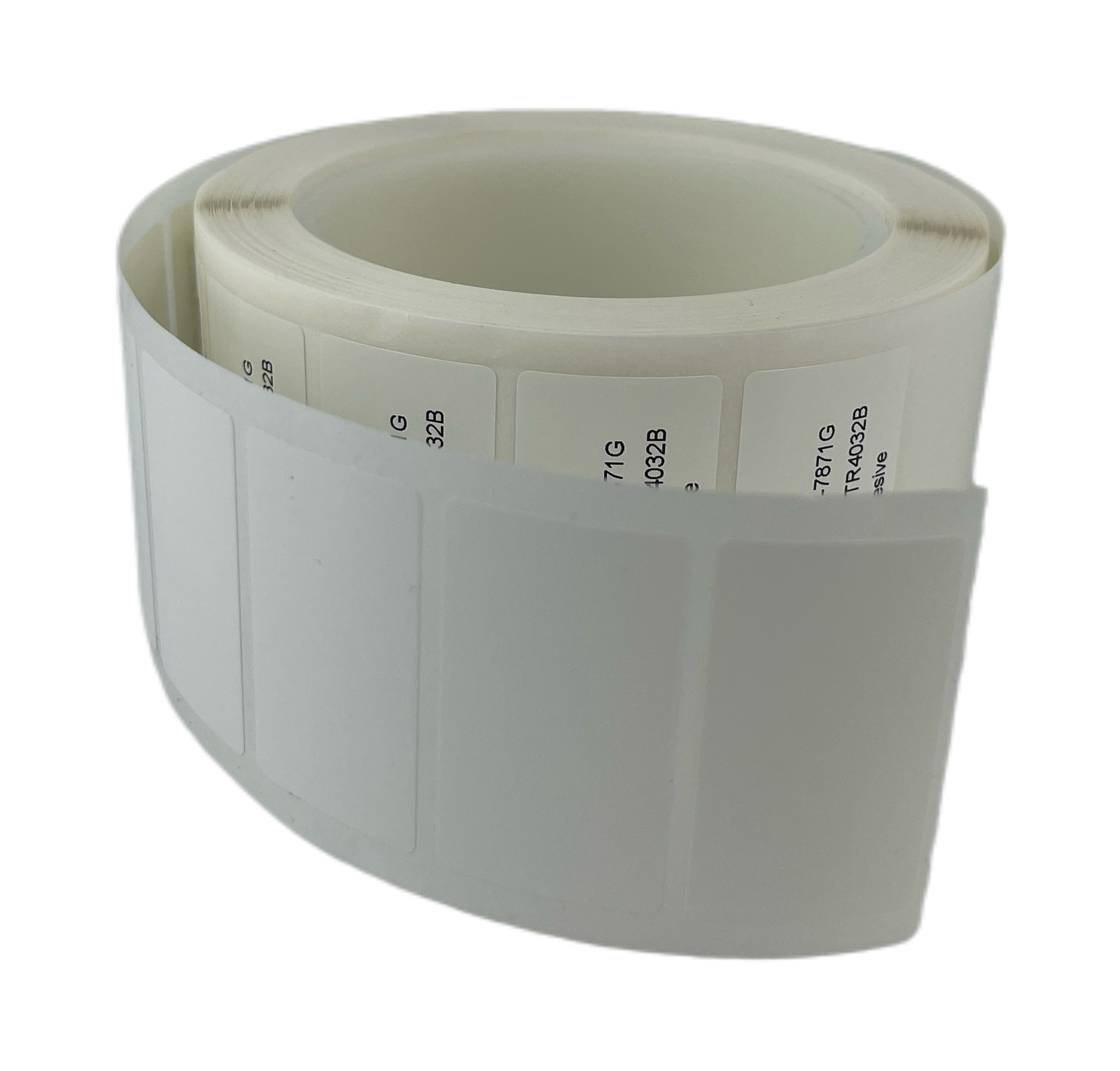

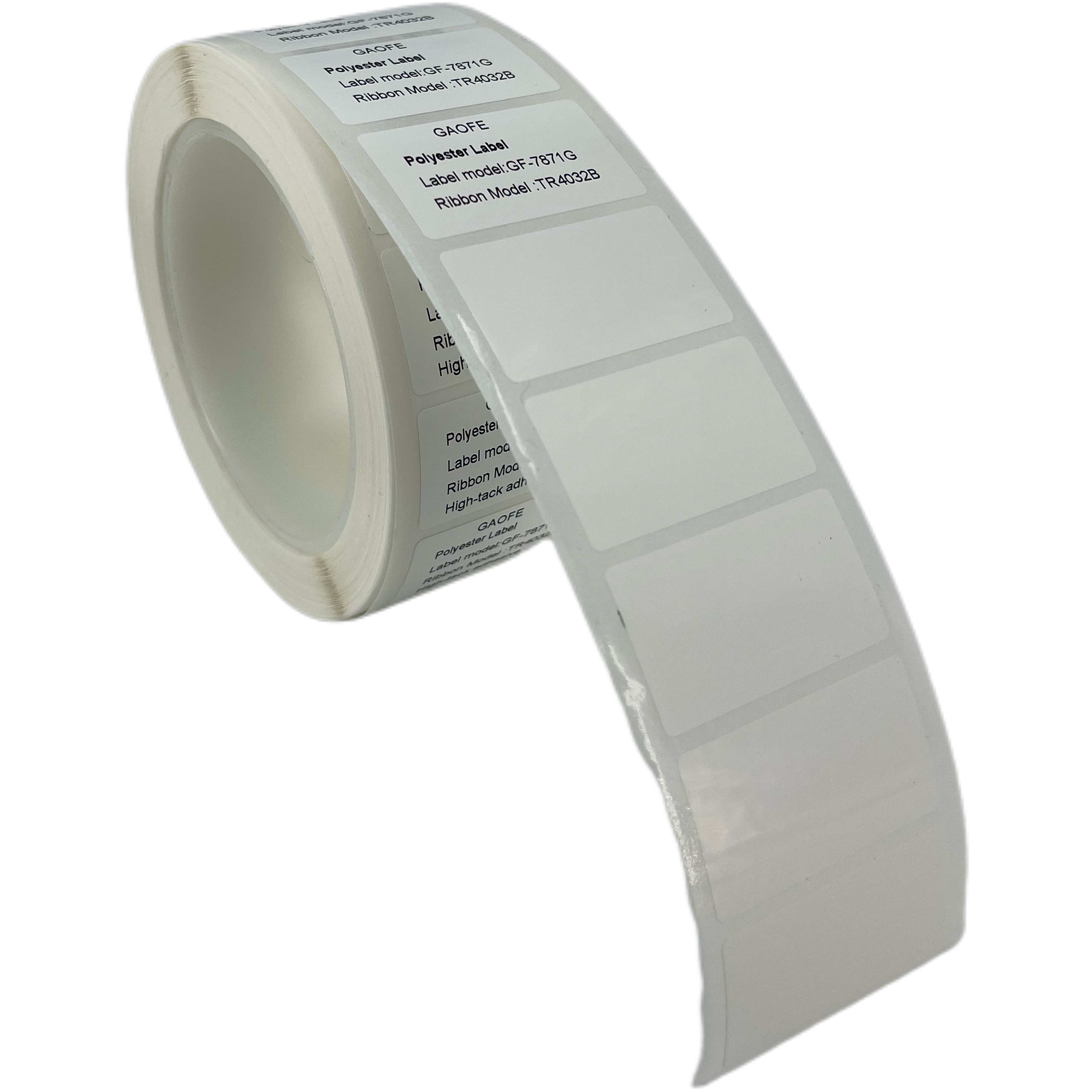

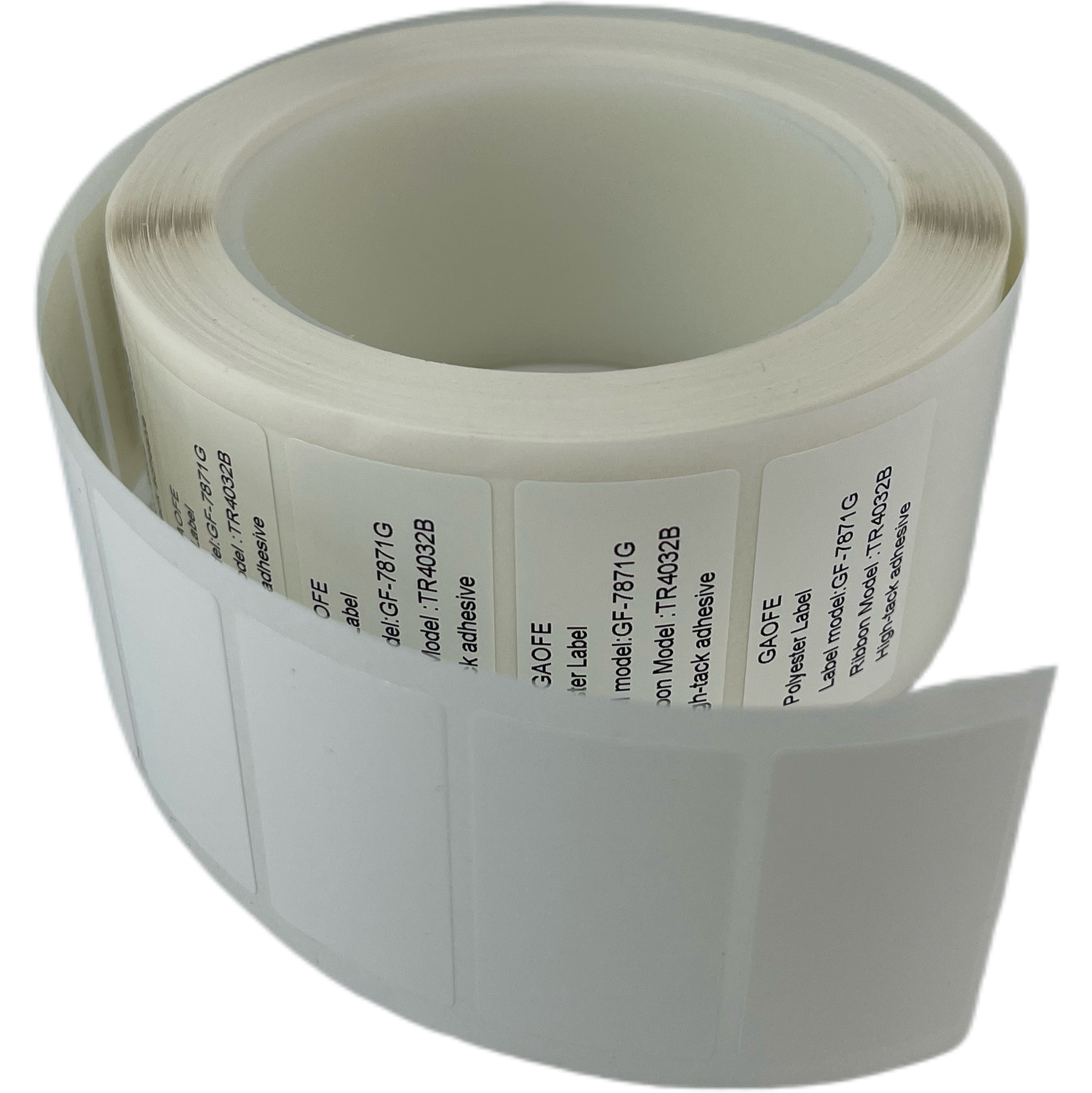

The GF-7871G is a premium gloss polyester label engineered for high/low surface energy (HSE/LSE) substrates, rough textures, and industrial environments. Featuring a high-performance acrylic adhesive, it delivers permanent adhesion even on powder-coated metals, plastics, and slightly oily surfaces. Designed for branding, safety signage, and instructional labeling, it withstands chemical exposure, extreme temperatures (-40°C to 149°C), and mechanical abrasion, ensuring long-term legibility and compliance in harsh conditions
✔Ultra-Durable Adhesion – Bonds securely to HSE/LSE plastics, textured surfaces, and powder coatings without lifting or peeling
✔ Chemical & Solvent Resistant – Withstands industrial cleaners, oils, and harsh solvents (e.g., acetone, sulfuric acid)
✔ Temperature Resilient – Performs in freezers (-40°C) to high-heat environments (149°C), ideal for automotive, manufacturing, and outdoor use
✔ UV & Weatherproof – Polyester facestock resists fading, moisture, and UV degradation for 5+ years outdoors
✔ Multi-Print Compatible – Optimized for thermal transfer (TT), UV inkjet, and laser printing with crisp barcode/legibility
✔ Tamper-Evident & Permanent – Acrylic adhesive leaves residue upon removal, deterring tampering for security labels
Engine bay labels
VIN tags & part identificatio
Battery and tire labels (high-temperature resistant.
Chemical drum labeling (GHS/OSHA compliant)
Machinery asset tags
Pipe marking (ANSI/ASME A13.1 standard)

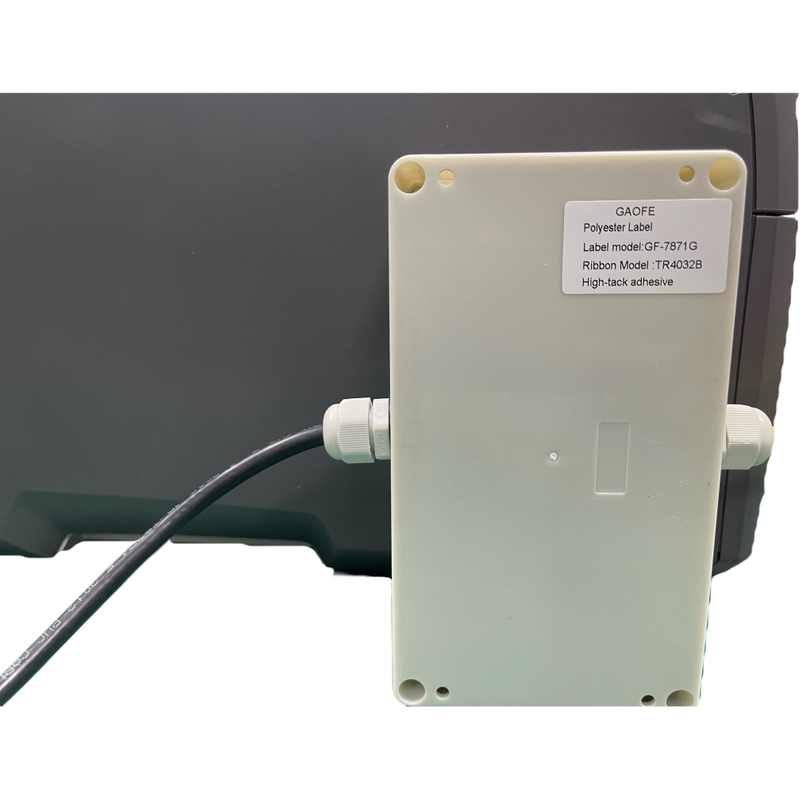

Powder-coated equipment nameplates
PCB and component labels
Outdoor machinery warning labels
Weatherproof outdoor asset tracking
Pallet/shipping labels (resists abrasion)
Optimal Printing Solutions
1.Recommended Ribbons:
Resin Thermal Transfer Ribbons
Model:TR4032 Resin Ribbon（TR4032B resin ribbon）
Features:
Optimized for PP-based materials like synthetic labels, it provides high-density printing (≥1.7 OD) on PP, PET,PE, and PVC surfaces.
Maintains print quality at 300 mm/s (12 ips) enabling efficient high-speed production.
Wax-resin hybrid formulation provides reliable adhesion on coated paper with 80°C heat resistance.
2.Recommended Printers:
Model:TSC MH641 Printer
Features:
It delivers high-resolution printing at 24 dots/mm (600 DPI) for detailed barcode and label output.
Built with an aluminum alloy chassis and large viewing window, it withstands demanding industrial environments.
The printer supports expandable memory via microSD (up to 32GB) and offers Ethernet, USB, and optional wireless connectivity.
| No. | Type | Model |
| 1 | Strong adhesive labels | GF-7816G |
Specification
| MATERIAL NAME | 50# Bright White PET (TW - 050) |
| ARTICLE CHARACTER | PET |
| BASIC WEIGHT | 0.050±0.005 mm |
| FIXED AMOUNT | 70±5 |
| THE MOLD SLICES FUNCTION | Good die - cutting performance |
| PRINTING FUNCTION | Good printability |
| COLOR | Bright white |
| BAR CODE | Bar code performance: OK |
| SMOOTHNESS | Good smoothness |
| WEATHER RESISTANCE | Good weather resistance |
| TEMPERATURE RANGE | - 20 - 149℃ |
| SURFACE ENERGY | 38D↑ |
| DIAPHANEITY | Opaque |
| ELECTROPLATE STRENGTH | — — |
| ADHESIVE | Pressure - sensitive adhesive (ZXPQN - 73) |
| ADHESIVE BASE | Solvent - based adhesive |
| BASIC WEIGHT | 0.040±0.002 mm |
| FIXED AMOUNT | 20±2 g/ |
| TACK | 3 ↑ |
| COHESION FORCE | 24 ↑ |
| STAINLESS STEEL ADHESION | 20 ↑ |
| PP ADHESION | — |
| GLASS ADHESION | — |
| RE - ADHESIDUAL | — |
| SERVICE TEMPERATURE RANGE | 120℃ |
| TEMPERATURE RANGE | -20 - 120℃ |
| MATERIAL NAME | 80g White Glassine (102) |
| ARTICLE CHARACTER | Semi - transparent release paper |
| BASIC WEIGHT | 0.060±0.007 mm |
| FIXED AMOUNT | 80±5 g/ |
| LINER RELEASE | 10 ↓ |
| DIE CUTTING | Good |
| PRINTING FUNCTION | — |
| SMOOTHNESS | Good |
| COLOR | White and semi - transparent |
| STORAGE | The shelf life is three years at 23°C and 50% humidity. |
| TESTING STANDARDS | Adhesion (N/in): GB/T2792-1998 Initial adhesion (#): GB/T4852-2002 Holding force (H): GB/T4851-1998 |
