B-231G
GAOFE
Overview

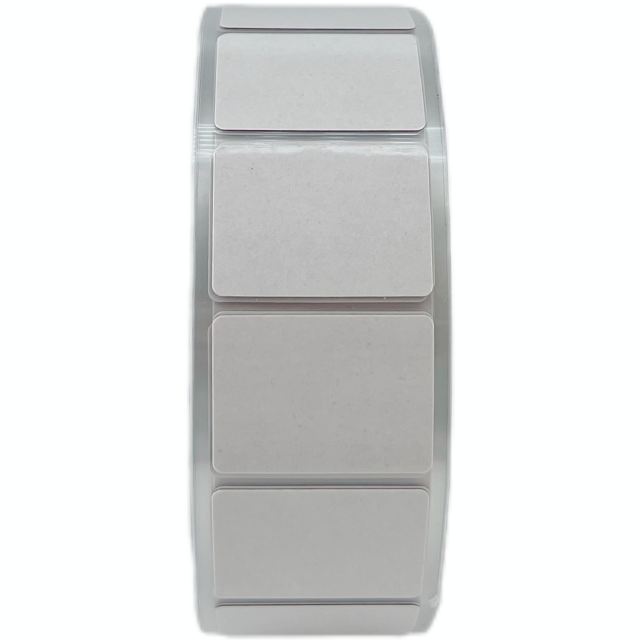

The GAOFE B-231G hydrochromic label is a smart moisture-proof traceability label designed for high-value products. It features an immediate color change to red upon contact with water, providing a visible proof of moisture exposure. This allows for quick and accurate identification of products affected by moisture during transportation, storage, or use, without the need for professional testing equipment.
Specifications
| Category | Parameter | Value | Test Method |
| Material Structure | Face Material | White Water-Sensitive Paper | - |
| Thickness (Face) | 150±3 μm | - | |
| Adhesive | Acrylic | - | |
| Adhesive Thickness | 20±2 μm | - | |
| Release Liner | PET (Polyester Film) | - | |
| Release Liner Thickness | 36±2 μm | - | |
| Initial Tack (Adhesion) | #9 (Rolling Ball Method) | FTM 8 Stickiness | |
| Peel Strength | ≥800 g/25.4 mm | FTM 1/180° Peel Test | |
| Holding Power | ≥24 hours | - | |
| Functional Properties | Moisture Reaction | White → Red (Irreversible) | - |
| Printing Compatibility | Thermotransfer, Offset, Flexography | - | |
| Die-Cutting Performance | High-speed rotary die-cutting | - | |
| Storage Conditions | Shelf Life | 1 year (24°C, 50% RH) | - |
