B-361G
GAOFE
OVERVIEW

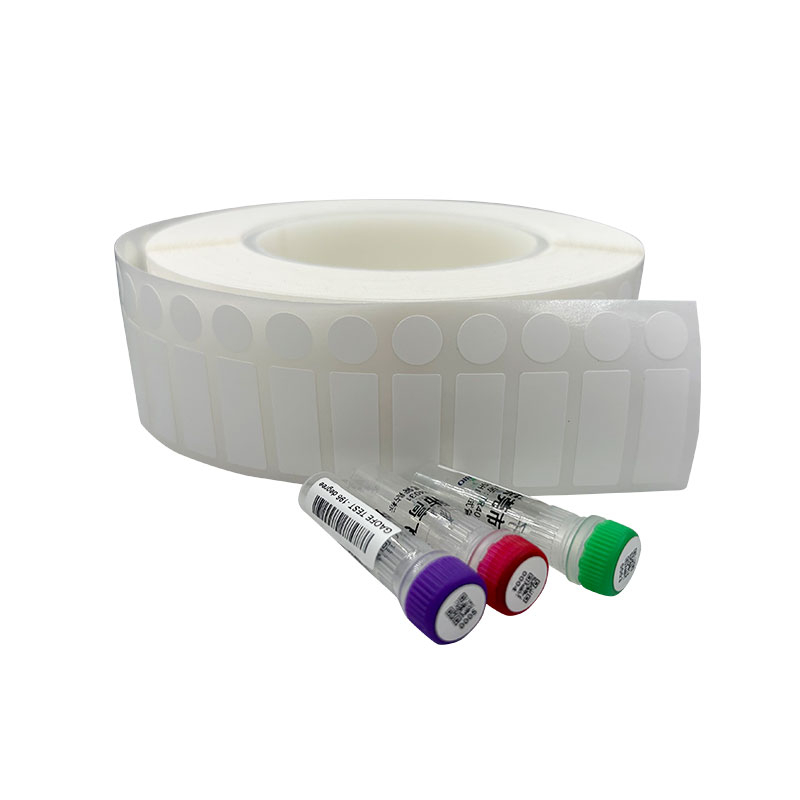

B-361G Our cryogenic labels withstand liquid nitrogen immersion down to -196°C (-320°F). Featuring a specialized adhesive, they resist cracking and lifting to ensure permanent adhesion. Perfectly suited for thermal transfer printing, they provide reliable barcode and text legibility for sample tracking in biobanking, pharmaceutical, and industrial freezing applications.
Feature
1 .Withstands extreme temperatures down to -196°C / -320°F
2.Ensures permanent adhesion and resists cracking or lifting
Applications
B-361G Cryogenic Labels
In biobanks, preserving the integrity of irreplaceable biological samples (like tissues, DNA, and stem cells) in liquid nitrogen is critical. Our cryogenic labels withstand the harsh -196°C environment, preventing adhesive failure and material cracking. This ensures permanent, scannable identification for flawless sample tracking and data integrity over decades, safeguarding vital medical research and personalized medicine.
Advanced cell and gene therapies require an unbroken cold chain in liquid nitrogen vapor from manufacturing to patient bedside. Our specialized labels maintain superior adhesion and legibility on vials and containers throughout transport. They provide reliable, scannable data for strict chain-of-custody and regulatory compliance, ensuring patient safety and the viability of these life-saving treatments.
Optimal Printing Solutions
Recommended Ribbons:
GAOFE TR4032B resin ribbonhttps://www.dggaofe.com/Resin-Ribbon-TR4032B-pd551383948.html
Low Temperature Durability:
Maintains print integrity at -196°C (liquid nitrogen immersion) without cracking or fading.
Resists thermal shock during rapid freeze-thaw cycles.
Recommended Printers:
CAB SQUIX 4 600DPIhttps://www.dggaofe.com/CAB-SQUIX-4M-Industrial-Label-Printer-pd552585548.html
600DPI Ultra-High Resolution
Produces sharp, high-density barcodes (including 2D DataMatrix) and tiny fonts for cryogenic vial labels (as small as 2mm).
Other Option :
NO. | NAME | MODEL | Temperature Range | Color |
1 | Cryogenic Nylon label | B-364G | -196 degree | white |
2 | premium synthetic label | B-365G | -50 degree | white |
3 | blood bag low temperature label | B-375G | -40 degree | white |
4 | Ordinary synthetic label | B-363G | -20 degree | white |
SPECIFICATION
Thickness | ASTM D1000 | USA Units | SI Units |
Substrate | 0.0046 inch | 0.117 mm | |
Adhesive | 0.0010 inch | 0.025 mm | |
Total | 0.0056 inch | 0.142 mm |
Technical Data
Properties | Test Method | Average Results | |
USA Units | SI Units | ||
Adhesion | |||
Stainless Steel | 20 minute dwell | ≥44 oz/in | 48N/100 mm |
24 hour dwell | ≥76 oz/in | 86N/100mm | |
Tack | |||
≥1000 g/in | |||
Weatherometer Testing | ASTM G154 | No Visible Effect | |
Short Term High Temperature | 5 minutes at 145°C | Slight discoloration | |
Long Term High Temperature | 30 days 110°C | No Visible Effect | |
Short Term Cold Temperature | 1 hour liquid Nitrogen At -196°C | No Visible Effect | |
Long Term Cold Temperature | 30 days at -80°C | No Visible Effect | |
Temperature Range | -196 to 145℃ | ||
Durability Testing
Adhesive Performance Property | Chemical Resistance | |
Chemical Re-agent | Subjective Observation of Visual Change | |
Effect label-Stock/adhesive | Dot matrix print | |
Methel Ethyl Ketone | Complete unwrap | No visible effect |
1,1,1-Trichloroethane | Complete unwrap | No visible effect |
Isopropyl Alcohol | Complete unwrap | No visible effect |
Mineral spirits | Slight unwrap | No visible effect |
SAE 20 WT oil at 70°C | No unwrap,label stained tan | No visible effect |
Mil 5606 oil | No unwrap,label stained red | No visible effect |
Gasoline | Complete unwrap,label discolored | No visible effect |
Rust Veto®342 | No unwrap,label discolored | No visible effect |
De-ionized water | No visible effect | No visible effect |
3% Alconox ® Detergent | No visible effect | No visible effect |
10%Sulfuric acid solution | No visible effect | No visible effect |
10%Sulfuric acid solution | No visible effect | No visible effect |
Buzz saw degreaser | Complete unwrap | No visible effect |
S-KUT Cutting oil 332 | No unwrap,label stained red | No visible effect |
5% salt solution | No visible effect | No visible effect |
Chemical Testing
Chemical Re-agent | Ricoh B110A-Thermal transfer ribbon | Ricoh B110C-Thermal transfer ribbon | Iimak SP330-Thermal transfer ribbon | Dai Nippon R510Thermal transfer ribbon |
Methel Ethyl Kerone | Slight print smear | Severe print smear | Severe print smear | Severe print smear |
Isopropyl alcohol | Slight print removal | Severe print smear | Severe print smear | Severe print smear |
Mineral Spirits | No visible dffect | Moderate print removal | No visible effect | No visible effect |
SAE WT Oil at 70°C | No visible effect | No visible effect | No visible effect | No visible effect |
Mil 5606 oil | Slight print smear | Slight print removal | No visible effect | No visible effect |
Gasoline | Slight print smear | No visible effect | No visible effect | No visible effect |
Rust Veto ®342 | No visible effect | No visible effect | No visible effect | No visible effect |
10% Sodium Hydroxide solution | No visible effect | No visible effect | No visible effect | Slight print smear |
10% Sulfuric Acid solution | Slight print smear | Severe print removal | Moderate print removal | Moderate print removal |
Buzz saw degreaser | No visible effect | Severe print removal | Moderate print removal | Moderate print removal |
S-kutt cutting oil 332 | No visible effect | No visible effect | No visible effect | No visible effect |
5% salt solution | No visible effect | Severe print removal | No visible effect | Slight print smear |
Product Approvals
UL"Recognised Component"
Underwriters laboratories Test Standard: UL969 Marking and labelingsystems
Product Categories: PGGU2-Materials File NO.xxx
Label Application
The surface to be labelled should be clean and dry.In order to optimise
label application,surface temperatures should be around room temperature.
Storage Conditions
Label material and labels manufactured from this material should be kept inplastic bags and stored at room temperature conditions(approx 23C and50%RH)
Shelf Life
If stored under recommended conditions,then this label material will retainit's specified performance criteria for 2years.
ROHS Compliance
With respect to European(EU)Directive 2002/95/EC on the restriction of theuse of certain hazardous substances (ROHS) in electrical and electronicequipment, MINGMA identification products can clearly state that our products do notcontain any of the concerned substances in excess of the maximumconcentration values in any homogeneous material.
Warranty & Limited liability
Important Notice To Purchaser:All statements,technical information and recommendations herein are based on tests webelieve to be reliable,but the accuracy or completeness thereof is not guaranteed, and the following is made in lieu of all warranties,expressed or implied,including the implied warranties,of merchantability and fitness for purpose: Seller's and manufacturer's only obligation shall be to replace such quantity of the product proved to be defective. Before using., user shalldetermine the suitability of the product for its intended use, and user assumes all risk and liability whatsoever in connection therewith. Neither seller nor manufacturer shall be liable either in tort or in contract for anyloss or damage,direct or indirect,incidental, or consequential, arising out of the use of or the inability to use the product. No statement or recommendation not contained herein shall have any force or effect in an agreement signed by officers of seller or manufacturer.
