Overview

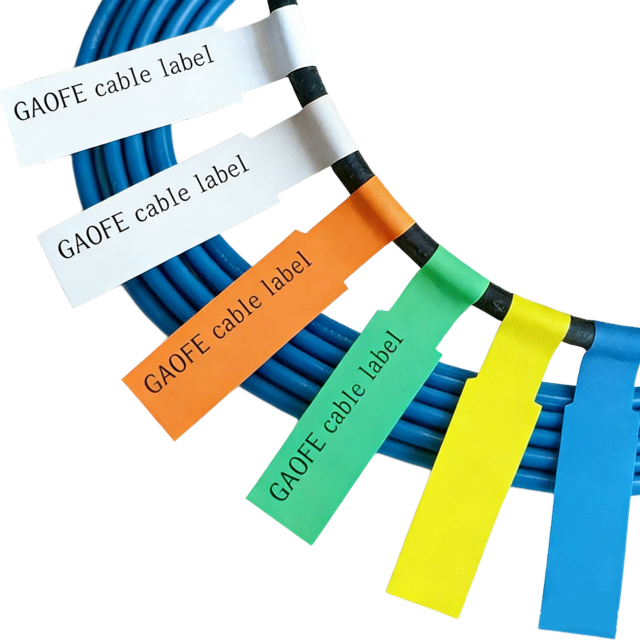

GF-766 is a professional Non-Woven Fabric fold-over cable label designed for Data Center and Communication Systems, providing clear, durable, and flexible identification for high-density cabling environments.
As part of our Data Center and Server Labels portfolio, this label is engineered for wrap-around and fold-over application on network, power, and communication cables commonly used in server rooms and data centers.
The soft yet tear-resistant non-woven fabric material allows the label to conform tightly to cable surfaces without damaging insulation, making it ideal for structured cabling, server racks, and communication infrastructure where long-term readability and organization are critical.
Feature
Non-Woven Fabric Material
Made from flexible non-woven fabric, offering excellent softness, abrasion resistance, and durability for continuous use in data center environments.
Fold-Over / Wrap-Around Design
Designed to fold over itself, enabling double-sided identification while protecting printed information from abrasion and handling.
Strong Adhesion for Cable Applications
Securely adheres to cable jackets without edge lifting or flagging, even in dense server rack installations.
Clear Print Performance
Supports barcode, QR code, alphanumeric text, and color coding, ensuring fast cable identification and maintenance efficiency.
Optimized for Data Center and Server Labels
Specifically developed for cable management, asset tracking, and network identification within data centers and communication systems.
Applications:
GF-766 Non-Woven Fabric Data Center and Server Labels are widely used in:
Data Center Cabling Systems
Identification of Ethernet, fiber optic, and power cables in server racks and cabinets.
Communication Systems Infrastructure
Cable labeling for telecom rooms, network distribution frames, and communication equipment.
Server Rooms and IT Facilities
Organized cable management for maintenance, troubleshooting, and system upgrades.
Structured Cabling Projects
Long-term cable identification in enterprise data centers and large-scale communication systems.
This label helps improve operational efficiency, reduce maintenance errors, and maintain a clean, professional cabling environment in modern Data Center and Communication Systems.
Optimal Printing Solutions
Recommended Ribbons:
GAOFE TR4032B resin ribbonhttps://www.dggaofe.com/Resin-Ribbon-TR4032B-pd551383948.html
Recommended Printers:
SQUIX 4 Industrial Printerhttps://www.dggaofe.com/CAB-SQUIX-4M-Industrial-Label-Printer-pd552585548.html
specification
| Article Name | Flame Retardant Cloth Label | Color | White | CODE | Flame retardant cloth label |
| Face Stock | Liner |
| Article Name | Polyamide Film | Article Name | 80gsm white glassine liner |
| Thickness(um) | 110±3 | Thickness(um) | 75±5 |
| Basic Weight(g/m2) | 70±3 | Basic Weight(g/m2) | 80±5 |
| Color | White | Color | White |
| Pressure Sensitive Adhesive |
| Properties | Value | Unit | Test Method |
| Thickness | 21±3 | um | GB/T 7125 |
| Dry Coating Weight | 21±3 | g/m2 | GB/T 7125 |
| Peel.Adhesive | 0.8↑ | Kg/in | GB/T 2792 |
| Release Force | 10±6 | g/in | GB/T 2791 |
| Initial Tack | 1~5 | # | GB/T 4852 |
| Holding Power | 8↑ | hr/kg*in | GB/T 4851 |
| Service Temperature | 5~125 | ℃ |
|
| Storage condition | The storage condition is at normal temperature, in a cool, ventilated and dry place (0 - 28 ℃, below 70%RH). Avoid high temperature and high humidity, and do not expose to the sun or rain. The best storage condition is 23 ± 5 ℃ and 65 ± 5%RH, and the shelf life is 12 months. (Note: If the product is stored for a long time at too high or too low temperature and humidity, the shelf life will be significantly shortened.) |
| Remark | The quality control of our company's products is inspected and controlled according to the product specifications listed in our product instruction manual. There will be differences in actual applications. Please make sure to understand the purpose, usage conditions and requirements before use, and conduct tests to confirm that there are no problems before use. Unless otherwise clearly agreed, our company will not bear the loss costs other than this material. |
Material: Flame-retardant fabric label with checkered bottom
Specifications: 30mm*12mm double row R0.5 corner
Left and right margins 2.5mm, center spacing 2mm
Bottom paper width 67mm
