PET Electrical Equipment Labels for Ultra-Thin High-Temperature and Durable Identification

Overview

GF-113G is an ultra-thin PET Electrical Equipment Label designed for long-term identification in demanding electrical and industrial environments.
Made with 25 micron bright white PET film and a high-performance acrylic pressure-sensitive adhesive, this label delivers excellent print clarity, strong adhesion, and stable performance across a wide temperature range.

Its ultra-thin construction allows the label to conform closely to electrical components, control panels, and compact equipment surfaces without edge lifting, making it ideal for electrical equipment identification, asset labeling, and compliance marking.

Features

Ultra-Thin PET Face Material

• 25# PET (≈0.025 mm thickness, ~27 g/m²)

• Bright white, smooth surface for fine text, barcodes, and QR codes

• Ideal for high-density information printing on limited space

Strong Acrylic Adhesive

• Acrylic pressure-sensitive adhesive with ≈0.020 mm glue thickness

• Initial tack ≥ 8#

• 180° peel strength ≈ 0.421 kg/in

• Holding power > 24 hours for reliable long-term bonding

Wide Temperature Resistance

• Service temperature range: -40℃ to 140℃

• Suitable for both high-heat electrical environments and cold storage conditions

• Maintains adhesion and legibility under thermal cycling

Durable & Stable Performance

• Good water resistance and weatherability

• Outdoor and indoor durability up to 12 months

• Shelf life: 12 months under recommended storage conditions

Application

GF-113G PET Electrical Equipment Labels are widely used in:

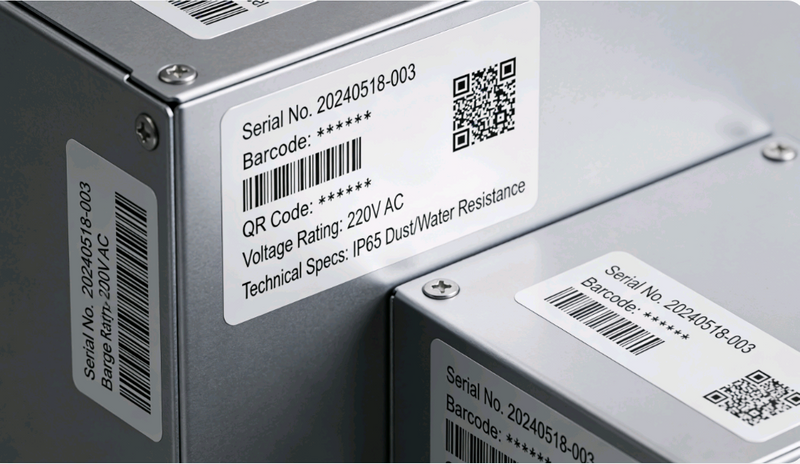

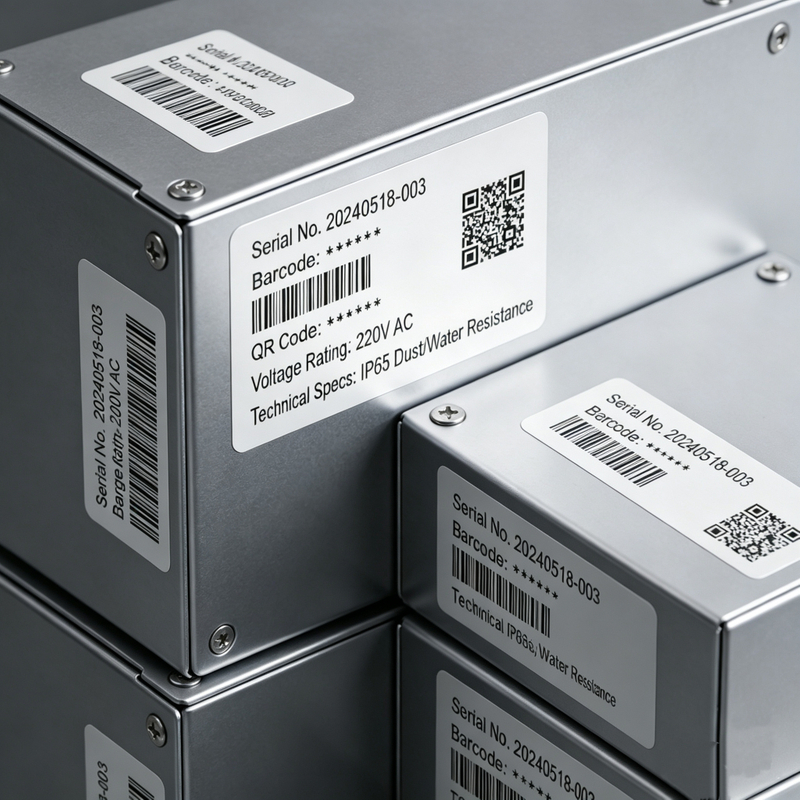

• Electrical equipment identification labels

• Control panels and electrical cabinets

• Electrical components and modules

• Industrial equipment nameplates and rating labels

• Asset identification and tracking for electrical devices

• Compliance, safety, and technical information labeling

Its ultra-thin profile and strong adhesion make it especially suitable for compact electrical assemblies and smooth metal or plastic surfaces where durability and readability are critical.

Optimal Printing Solutions

1.Recommended Ribbons:

Resin Thermal Transfer Ribbons

Model:TR4032B Resin Ribbon(https://www.dggaofe.com/High-Temperature-Resin-Ribbon-for-Durable-Printing-on-PET-Synthetic-Paper-Coated-Paper-pd551383948.html)

Features:

High Resolution Printing:

Designed for high-definition printing, it accurately reproduces fine text, complex graphics, and high-density barcodes (e.g., Data Matrix, QR codes). Typically supports 300dpi or even 600dpi resolution, ensuring high barcode scan rates and readability.

Excellent Fade Resistance:

Printed content fades significantly slower than wax-based or hybrid ribbons during long-term use or exposure to light.

2.Recommended Printers:

Model:TSC MH641 Printer

Features:

• Print speed up to 300mm/s, ideal for mass production lines – significantly boosts efficiency.

• Industrial-grade metal frame supports 24/7 continuous operation with robust stability.

Other Option

Specification
