FLS-FU3WAK
GAOFE

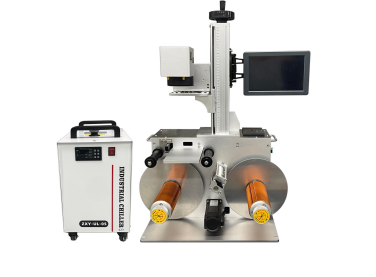

The UV Water-Cooled Laser Label Marking Machine is an industrial-grade equipment solution designed for high-precision, permanent marking on label reels and non-metal materials. Equipped with a 355nm UV laser source and compatible label rewinding system, it is purpose-built for automated production lines requiring stable, clean, and consumable-free coding.
Available in 3W and 5W configurations, this system delivers exceptional marking quality for QR codes, serial numbers, logos, dates, and variable data, even on thin films and sensitive plastic materials.
Feature
UV laser technology modifies the surface structure of the material to create permanent marks that do not fade, smear, or peel. The result is high-contrast, scan-ready codes suitable for full product traceability.
Unlike inkjet or thermal transfer systems, this laser marking machine requires no ink, ribbons, or solvents, eliminating ongoing consumable costs and reducing maintenance requirements.
With an extremely small laser spot, the system can reliably produce 3mm QR codes, high-density DataMatrix codes, and fine text, making it ideal for compact labels and limited marking areas.
The UV laser generates minimal heat, ensuring no burning, deformation, or carbonization, even on thin films and sensitive polymer labels.

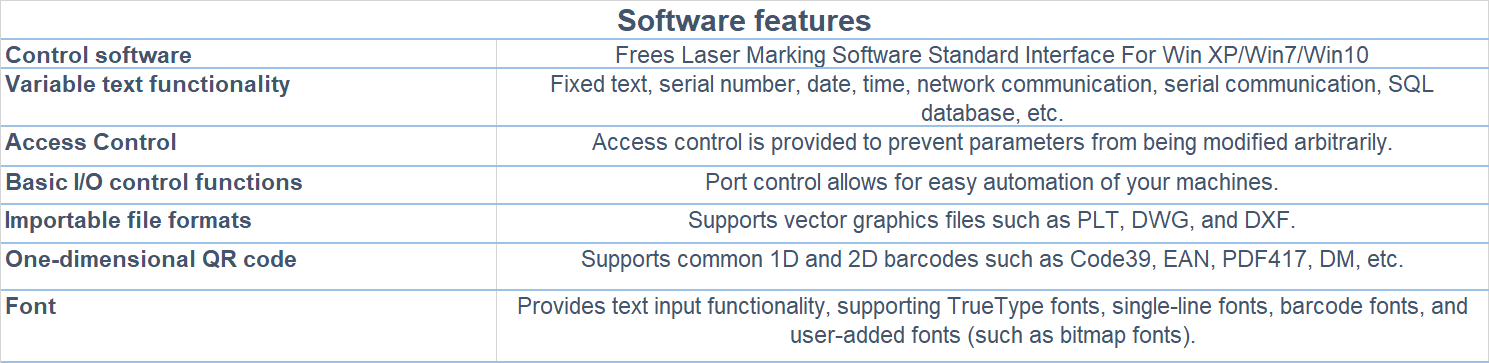

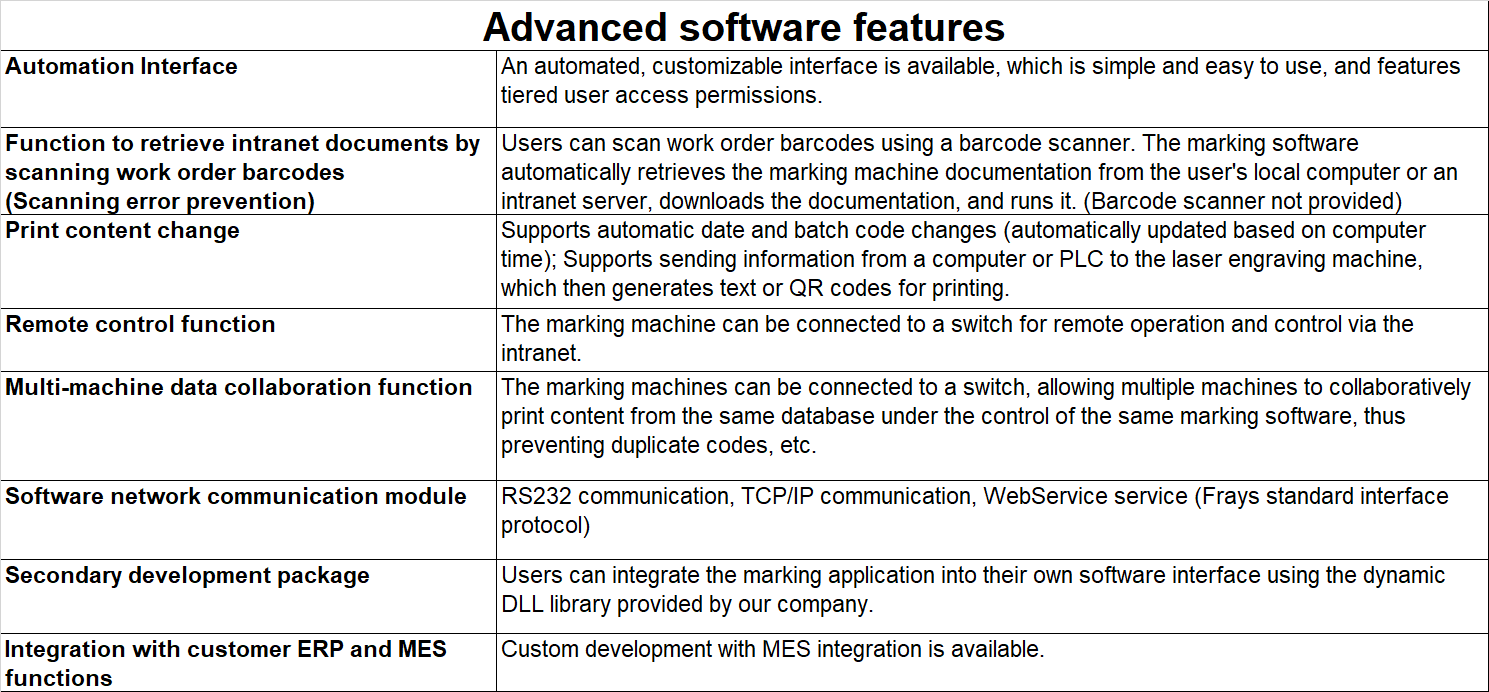

Designed for smart manufacturing environments, the system supports PLC control, IO signals, barcode-triggered file calling, and MES/ERP integration, enabling one-label-one-code production without duplication
Appliacation
Electronics and semiconductor labels
Automotive and component traceability
Medical and pharmaceutical packaging
Food and cosmetic label coding
Industrial identification and logistics labels

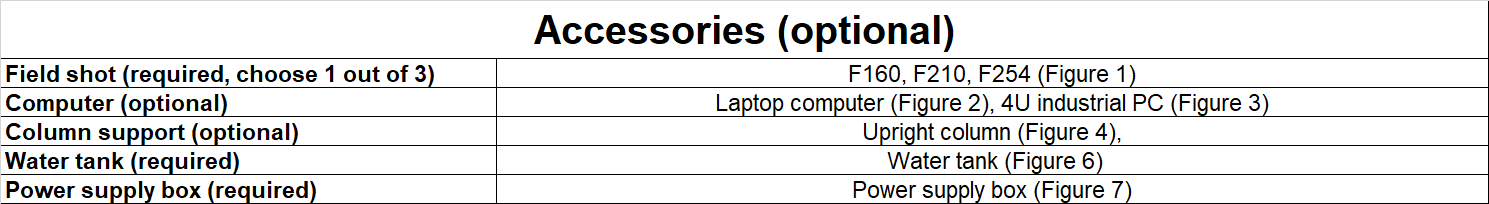

Other Option
| No. | Type | Model |
| 1 | SQUIX 4 GQ1000 labeling machine | SQUIX 4 GQ1000 |

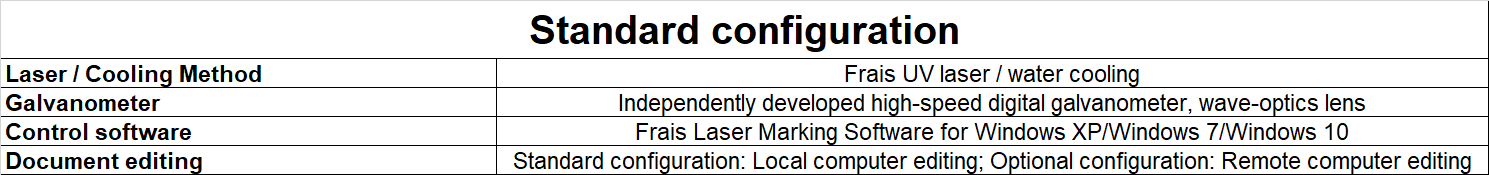

Specification

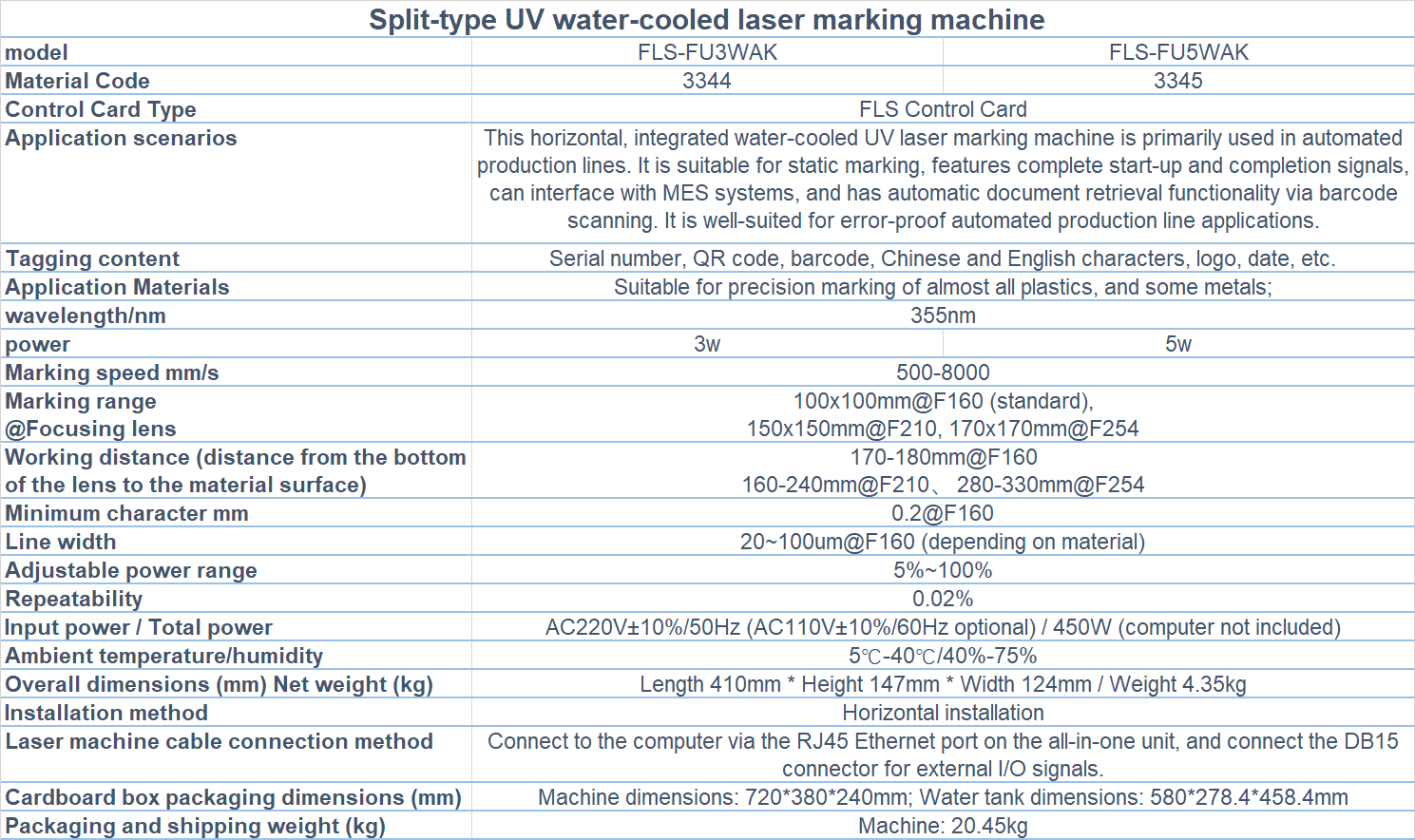

Technical parameters
