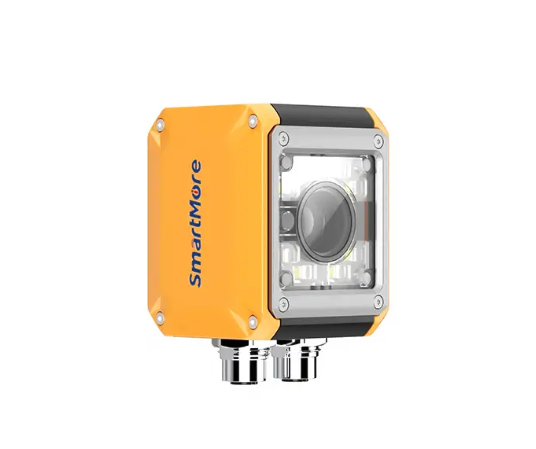

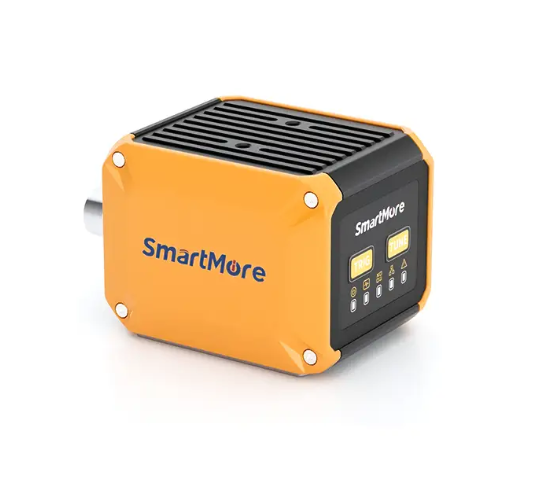

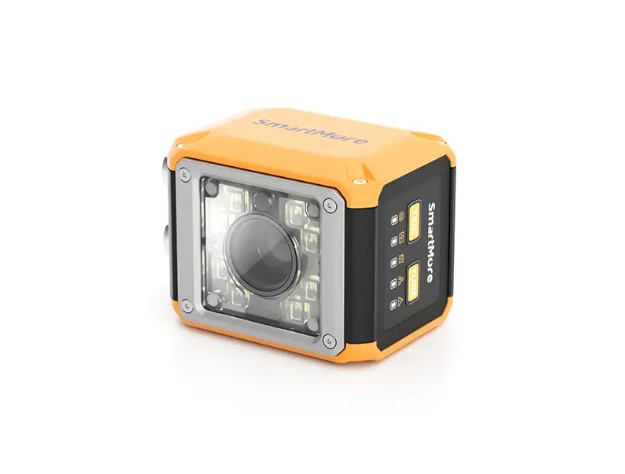

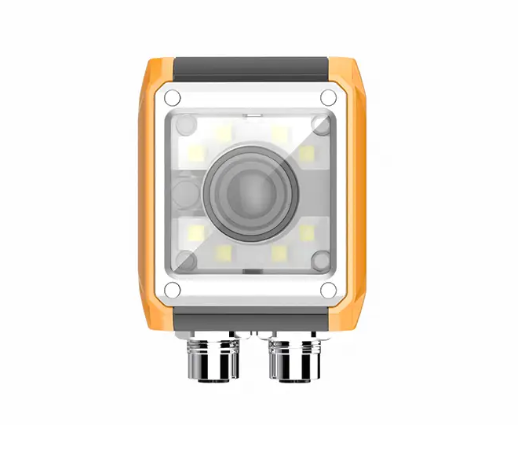

VS1000 Intelligent Code Reader — High-Performance Industrial Solution

Overview

This industrial-grade barcode scanner integrates deep learning-based decoding, wide-range adaptive scanning (100-600mm), and one-click auto-parameter optimization (focus/exposure/lighting). Equipped with a 2MP sensor, dual-color red/white illumination (16 adjustable schemes), and IP67 protection, it offers multi-interface support and precise status indicators. Designed for complex and demanding scenarios including lithium battery manufacturing, 3C electronics, semiconductors, medical/pharmaceutical, and photovoltaic industries.

Features

Intelligent Decoding Technology

Utilizes deep learning algorithms to recognize complex barcodes on reflective, damaged, curved, or low-contrast surfaces.

Supports high-performance decoding in industrial environments with challenging conditions.

Ultra-High-Speed Focusing

Equipped with red, white, and polarized light sources to read codes under different backgrounds and lighting conditions.

Four independently controlled LED units with 16 lighting modes for optimal reading, ensuring consistent performance on both reflective and non-reflective surfaces.

Modular Lighting Design

Features four fixed-focus lenses to read codes from 30mm to 125mm.

Optional multi-focal lenses (0mm/1mm/2mm/6mm) cater to various applications and distances.

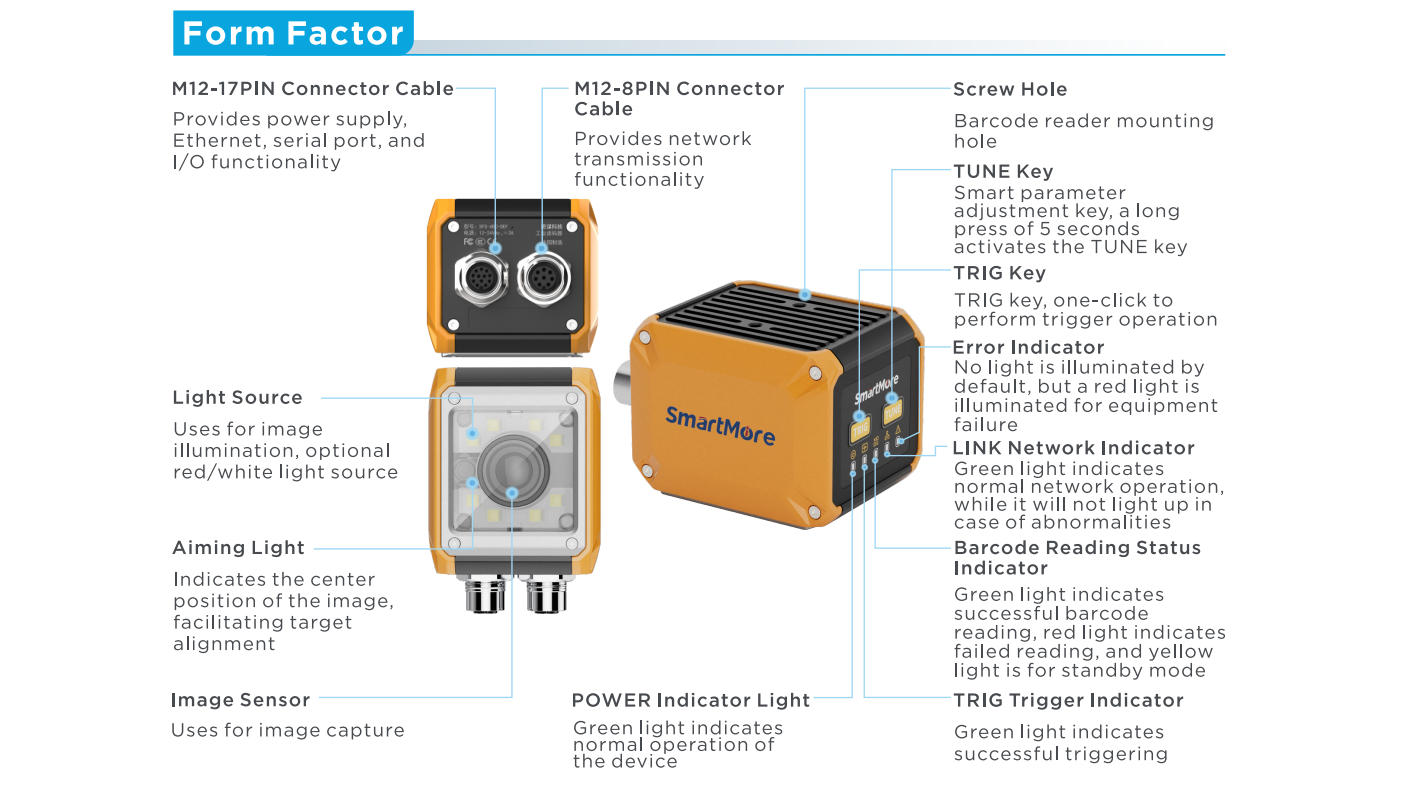

Rich Interfaces & Easy Installation

Supports M12-17PIN and M12-8PIN interfaces, integrating power, Ethernet, serial, and I/O functions.

Laser pointer for precise scanning location and standard screw holes for quick installation and mounting.

️ Industrial-Grade Design

2MP HD sensor with an f/2.3 aperture, suitable for medium and small field-of-view scenarios.

IP67-rated for dust and water protection, with resistance to oils, dust, and harsh environments.

Application

Lithium Battery Traceability Codes:On lithium battery production lines — at assembly, welding, and inspection stations.

3C Electronics Components Barcode:In electronics assembly workshops — at PCB assembly, final assembly, and quality inspection points.

Semiconductor Chip Labels:In semiconductor fabs or cleanrooms — at wafer handling, die sorting, and packaging stations.

Pharmaceutical Labels:On pharmaceutical and medical packaging lines — at labeling, filling, and inspection machines.

Photovoltaic Panel Serial Numbers:In solar panel production lines — at glass lamination, module assembly, and final inspection stations.

Other Option

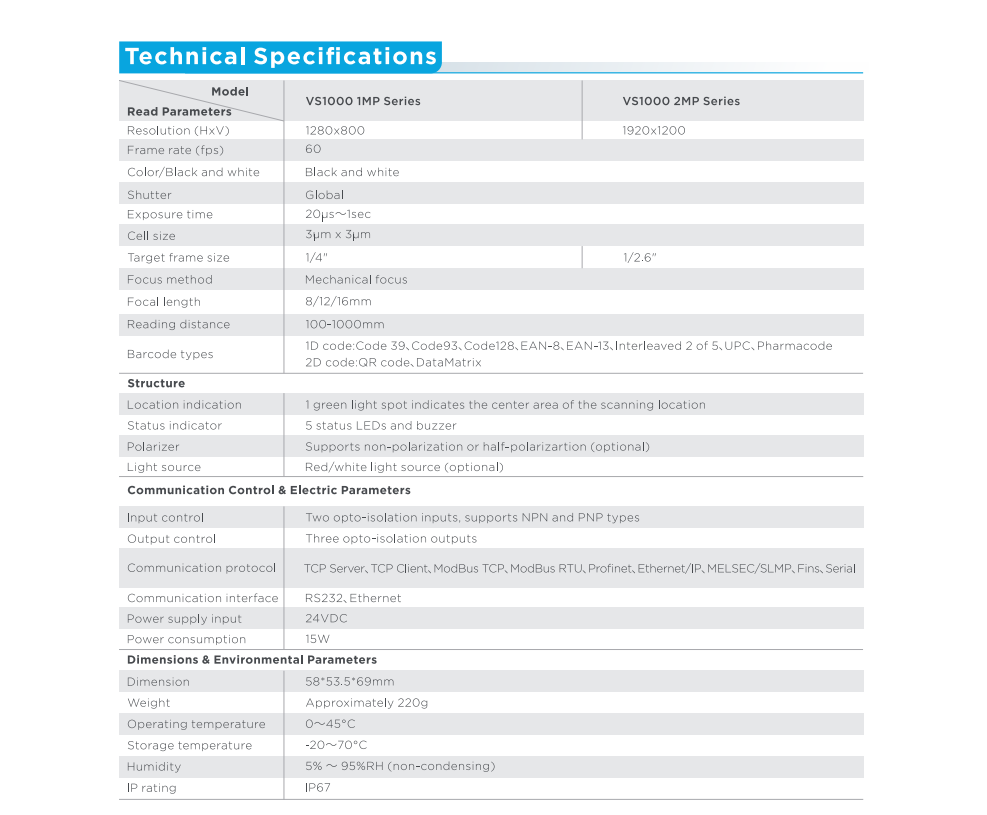

Specification
