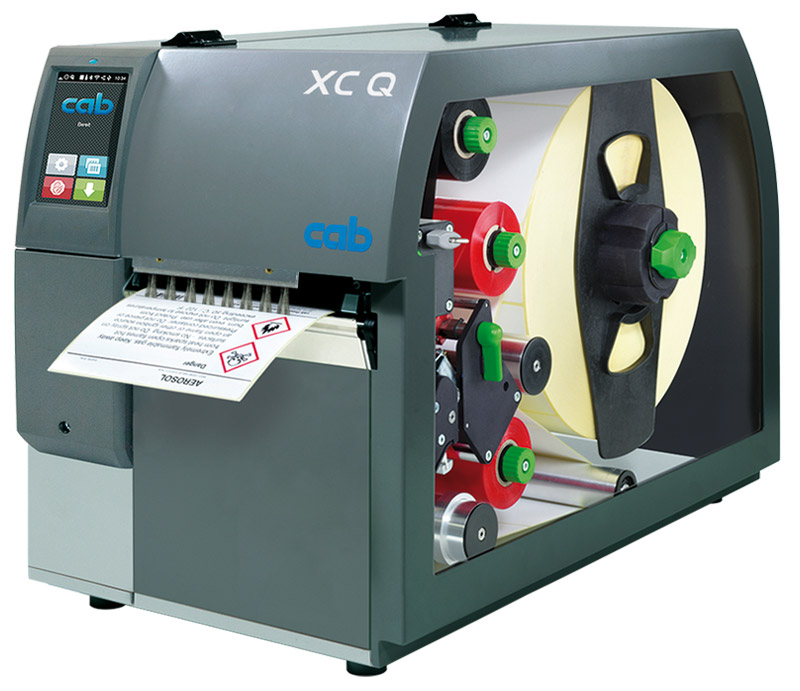

CAB XC Q4 & XC Q6.3 Industrial Label Printers – Dual-Color, 300 Dpi, High-Speed Thermal Transfer

Print resolution 300 dpi
Printable as wide as 105.7 mm or 162.6 mm
Heating can be assigned separately to each print head.
If printing only with print head 2, print head 1 is lifted by menu control.
Automated ribbon saving is provided on print head 1. The print head is lifted and the ribbon is stopped
during material feed. Opening or closing the print head may result in stress marks on wax ribbons.
Continuous print images when cutting at no backfeed
Optimized printing, so that multiple print jobs can be printed seamless
CSQ402 cutters are provided for XC Q4 printers,
CU600 cutters for XC Q6.3.

Quantity:
Availability:





Inquire Add to Basket

Model:
XC Q
Brand:
CAB

CAB industrial label printer industrial label printer Durable label printing solutions Dual-color thermal transfer printer High-resolution 300 dpi label printer

Product Description

Overview:

Models:

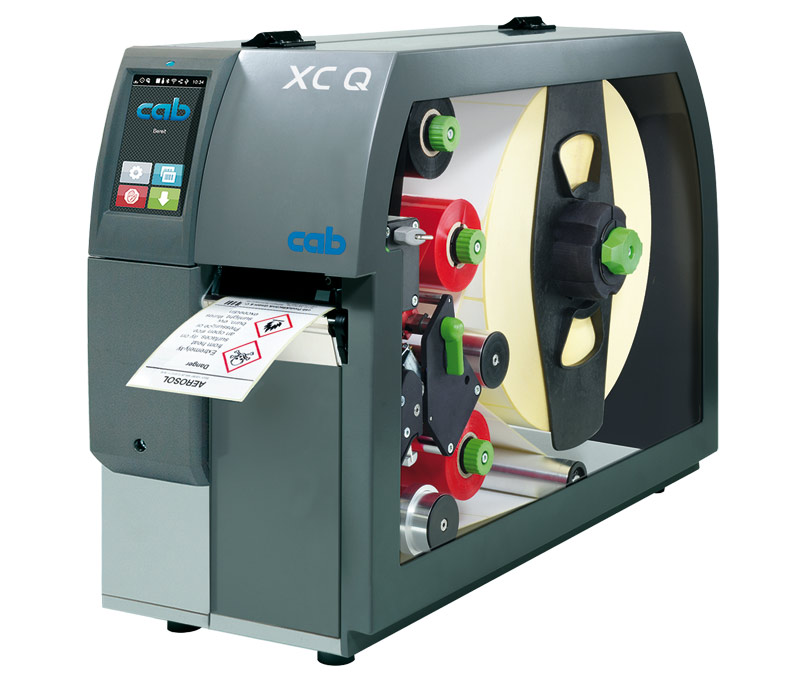

XC Q4: Max print width 105.7 mm, speed 150 mm/s, ideal for compact labels.
XC Q6.3: Max print width 162.6 mm, handles wider materials (up to 180 mm).

Key Features:
✅ 300 dpi High Resolution – Crisp text, barcodes, and graphics.
✅ Dual-Color Printing – Assign separate heating per print head for flexible designs.
✅ Automated Ribbon Saving – Print head 1 lifts during feed to reduce waste.
✅ Seamless Continuous Printing – Optimized for backfeed-free cutting.
✅ Wide Material Compatibility – Paper, synthetics (PET, PVC, PP), textiles, and more.
✅ Plug-and-Play Accessories – Supports cutters (CSQ 402/CU600), rewinding, and databases.

Applications:

✔ Logistics & Warehousing – Durable labels for tracking and shipping.
✔ Manufacturing – High-speed printing for production lines.
✔ Retail & Packaging – Custom labels with barcodes or branding.
✔ Healthcare & Laboratories – Compliant synthetic labels for harsh environments.

Other Options:

Cutting/Rewinding Units: CSQ 402 (XC Q4) / CU600 (XC Q6.3).
Software: cablabel S3 Pro for advanced design and database integration.
Connectivity: Ethernet, USB, RS232, and digital I/O for automation.
Language Support: 30+ languages for global operations.

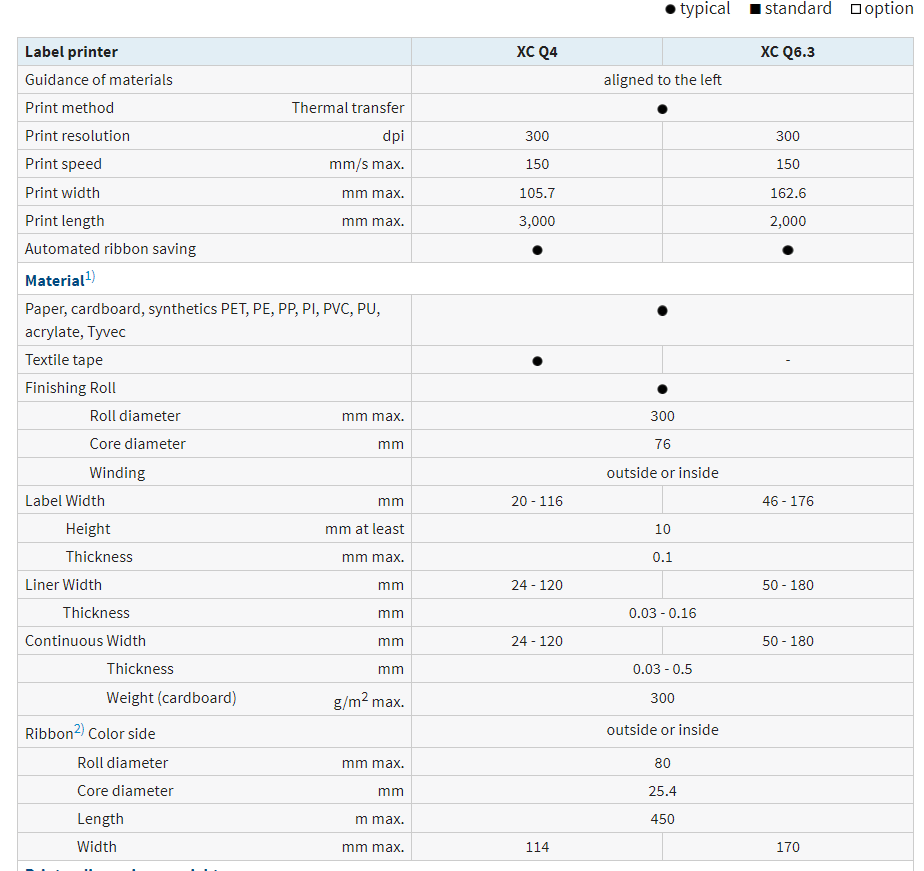

Specifications:

Model	XC Q4	XC Q6.3
Print Resolution	300 dpi	300 dpi
Max Speed	150 mm/s	150 mm/s
Max Material Width	114 mm	180 mm
Core Diameter	76 mm	76 mm
Interfaces	USB 2.0, Ethernet, RS232	USB 2.0, Ethernet, RS232
Weight	22 kg	24 kg
