Overview

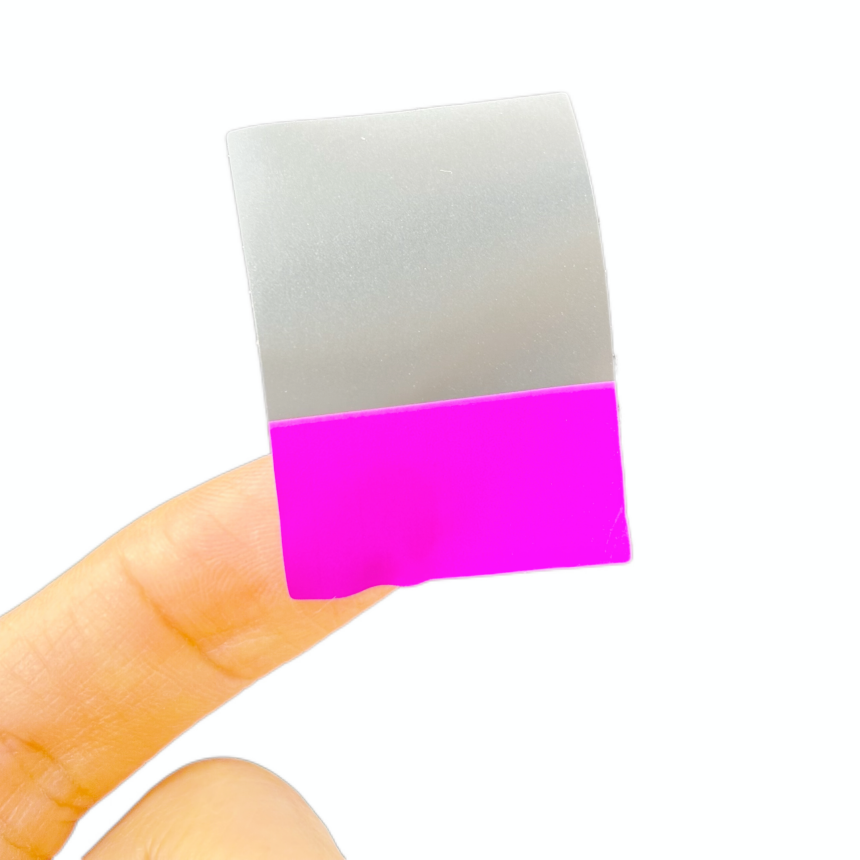

Label Model: B-674G. Specifically engineered for Data Center and Communication Systems, the B-674G is a premium professional-grade cable wrap label classified under the secondary category of Network and Cable Labels. It is constructed from a durable, clear transparent vinyl film that wraps securely around cables, providing a smooth, conforming fit. The self-laminating design features an extended clear film tail that completely covers and protects the printed text, ensuring exceptional durability and resistance to environmental factors.
Features
Excellent Water & Abrasion Resistance: The self-laminating, transparent vinyl construction creates a waterproof and scratch-proof barrier for printed information.
High-Conformity & Strong Adhesion: Flexible film wraps tightly around various cable diameters without curling or lifting, ensuring a permanent bond.
Wide Operating Temperature Range: Performs reliably in demanding environments from extreme cold to heat.
Chemical & Solvent Resistant: Withstands exposure to oils, fuels, and common cleaning agents, ideal for industrial settings.
UL/CSA Recognized: Meets industry standards for safety and performance in communication systems.
Clear, Professional Finish: Transparent material maintains a neat, low-profile appearance on cable bundles.
Application
Ideal for permanent identification and organization in critical infrastructure:

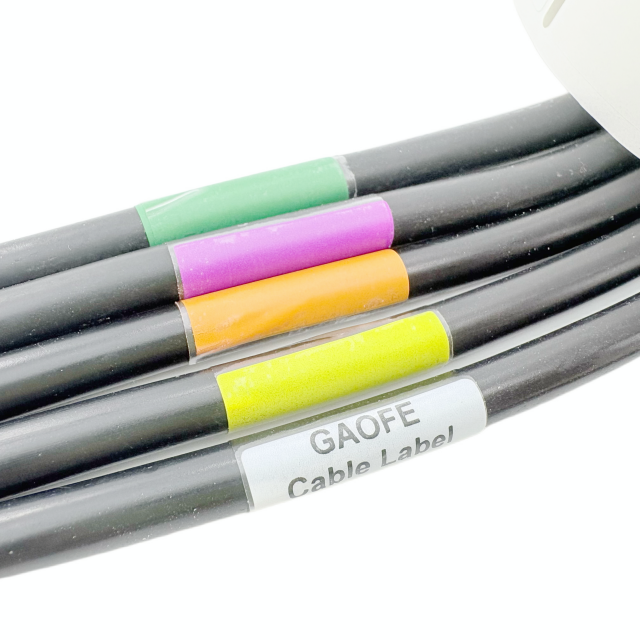

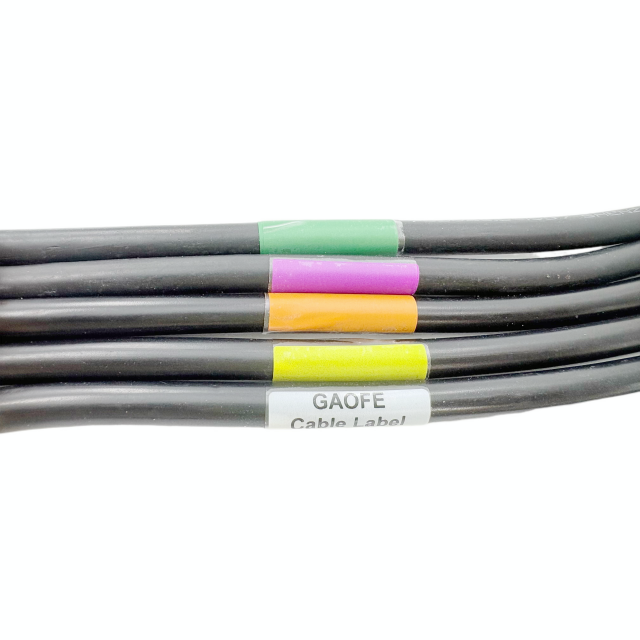

Data Center Cable Management (Ethernet, Fiber, Power Cords)
Telecommunication and Network Panels
Office LAN/WAN System Wiring
Industrial Control and PLC System Cabling
Audio/Visual and Broadcast Equipment Racks
Outdoor and Harsh Environment Communication Links
Optimal Printing Solutions
Recommended Ribbon
Recommended Printer
Other Options
| NO. | Name | Model |
1
| Anti-Static Cable Labels | B-796G |

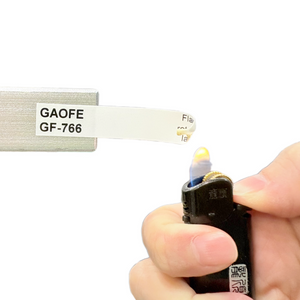

| 2 | Flame-Retardant Cable Labels | GF-766 |
| 3 | Fold cable label
| B-678G
|
Constitute
Specification
physical characteristics | test method | Average test results |
thickness | ASTM D1000 Testing -Vinyl substrate -Pressure-sensitive adhesive -Off-form paper -amount to |
0.06 mm 0.023 mm 0.074 mm 0.16 mm |
Paste to: -stainless steel | ASTM D1000 Testing
Paste for 20 minutes Stick for 24 hours |
≥1900gf/inch ≥2000gf/inch |
-Initial adhesion -Hold adhesion | ASTM D2979 Testing ASTM D3654 Testing | 430g 310g(18.7oz) |
-light transmittance | ISO7686:2005 | 90% |
-fog level | ISO7686:2005 | 45% |
insulativity | ASTM D1000 Testing | 6000V |
inflammability | ASTM D1000 Testing Average burning time | Less than 10 seconds |
Function test method:
Use TR4510B series black color strip heat transfer printing sample tape.
function | test method | test result |
Maximum adaptation temperature | 70°C for 30 days | has/have no influence |
Maximum adaptation temperature | -40°C for 30 days | has/have no influence |
Moisture resistance | 37 ° C (100 ° F), relative humidity 95% for 30 days | has/have no influence |
ageing resistance | 30 days xenon arc aging test machine, one cycle | has/have no influence |
Chemical test
chemical reagent | Visual observation affects |
Base material/adhesive | carbon tape |
Cleaners and solvents |
|
|
isopropanol | No visible effects | No visible effects |
mineral spirits | No visible effects | No visible effects |
Northwoods TM Buzz Saw Terpene Cleaner | No visible effects | No visible effects |
deionized water | No visible effects | No visible effects |
Fuel, oil and lubricants |
|
|
gasoline | Slight lifting | No visible effects |
brake fluid | No visible effects | No visible effects |
SAE 30 WT Oil at 70°C | No visible effects | No visible effects |
Yellow 77 Lubricating oil | No visible effects | No visible effects |
Aerospace liquids |
|
|
JP-8, space fuel | No visible effects | No visible effects |
Skydro 500B-4 | Material damage | NA |
MIL-H-5606 | No visible effects | No visible effects |
Unless otherwise noted, tests are performed after 24 hours at room temperature. The test consists of five cycles, soaking in the specified test fluid for 10 minutes, then removing and placing for 30 minutes before testing. B-674G is not recommended for use in harsh organic solvents such as methyl ethyl ketone, acetone, or 1,1,1-trichloroethane.
Term of validity
The product can be stored for at least 1 year (from the date of receipt) in an unopened environment with room temperature 15 ° C-23 ° C and relative humidity 60%.
