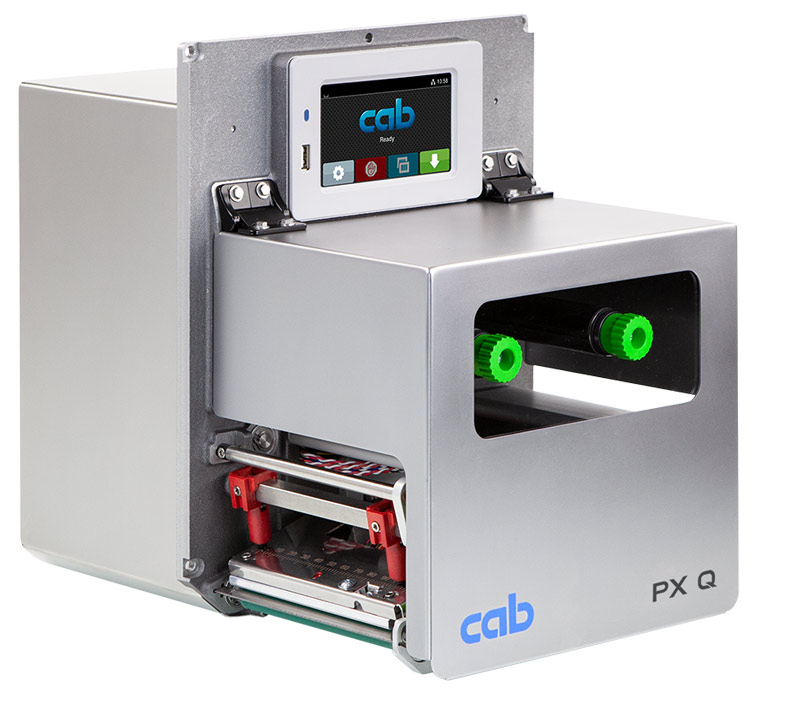

PX Q4 / PX Q4.3 Series (Standard Width)
Resolution: 203 dpi (PX Q4.3), 300 dpi (PX Q4 / PX Q4.3), 600 dpi (PX Q4)
Max Print Speed: 300 mm/s
Max Print Width: 104 - 108.4 mm
Ideal For: High-speed, high-accuracy labeling on standard size labels.

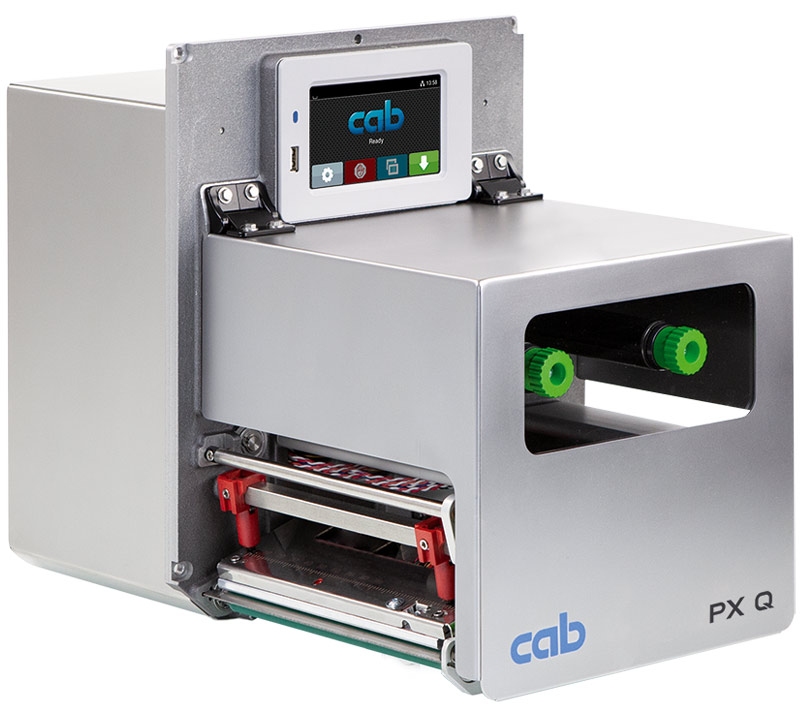

PX Q6.3 Series (Wide Format)
Resolution: 203 dpi or 300 dpi
Max Print Speed: 250 mm/s
Max Print Width: 162.6 - 168 mm
Ideal For: Odette and UCC standard wide labels used in automotive and logistics.
| Quantity: | |
|---|---|
PX Q
CAB

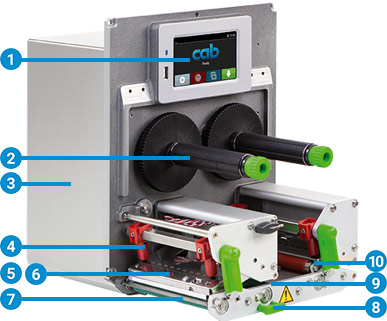

The PX Q series of industrial print and peel-off modules delivers full functionality, high reliability, and minimal maintenance downtime. Designed and manufactured in Germany, these modules are engineered for seamless integration into automated production lines, supporting both left and right-hand label transfer orientations. With resolutions ranging from 203 to 600 dpi and print speeds up to 300 mm/s, the PX Q family offers versatile solutions for complex industrial labeling tasks. Available in multiple models including PX Q4, PX Q4.3, and PX Q6.3, each module is built with a rugged cast aluminum chassis, food-safe coatings, and stainless steel casings for durability in harsh environments.
High-Speed Printing: Supports print speeds up to 300 mm/s (PX Q4/Q4.3) and 250 mm/s (PX Q6.3).
Multi-Resolution Options: Choose from 203, 300, or 600 dpi for precise imprints on small labels and graphics.
Rugged Construction: Torsion-resistant cast aluminum chassis with stainless steel casing.
Easy Operation: Intuitive touch panel with self-explanatory symbols and landscape/portrait display orientation.

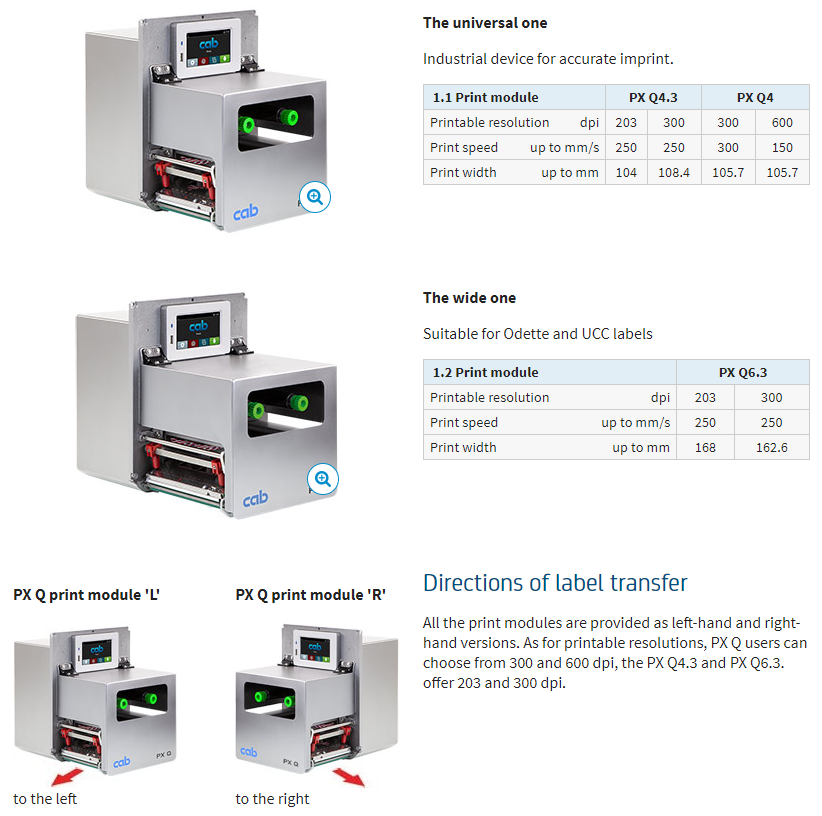

Flexible Integration: Compatible with competitive screwing systems and supports left/right-hand versions.
Automatic Ribbon Saving (Option): Reduces material consumption by lifting print head during label feed.
Interchangeable Print Heads: Automatically detected and calibrated; easily replaceable.
Versible Sensor Options: Gap sensor and reflective sensor for accurate label positioning and end-of-material detection.
Multiple Interfaces: USB, Ethernet, RS232, SD card slot, and digital I/O (24 V/5 V) for seamless connectivity.
Wide Material Compatibility: Supports paper, PET, PE, PP, PVC, Tyvec, and more.
The PX Q print modules are ideal for a wide range of industrial labeling applications, including:
Automotive and manufacturing part identification
Logistics and shipping labels (Odette and UCC standards)
Electronics and appliance serial number labeling
Food-safe compliant labeling in production environments
Pharmaceutical and medical device tracking
Warehouse and inventory management systems
For High-Accuracy Small Labels: Use PX Q4/600 dpi for sharp graphics and small text.
For Wide Labels (Odette/UCC): PX Q6.3/300 dpi offers a print width up to 168 mm.
For Rough Environments: PX Q4.3 and PX Q6.3 with 203/300 dpi are designed for durability and thermal direct printing.
To Reduce Material Waste: Enable the Automatic Ribbon Saving option for labels with ≥60 mm unprinted areas.
For High-Volume Printing: Use silicone-coated DRS print rollers for extended service life.
For Network Integration: Utilize built-in Ethernet, OPC UA, and database connectivity for Industry 4.0 readiness.

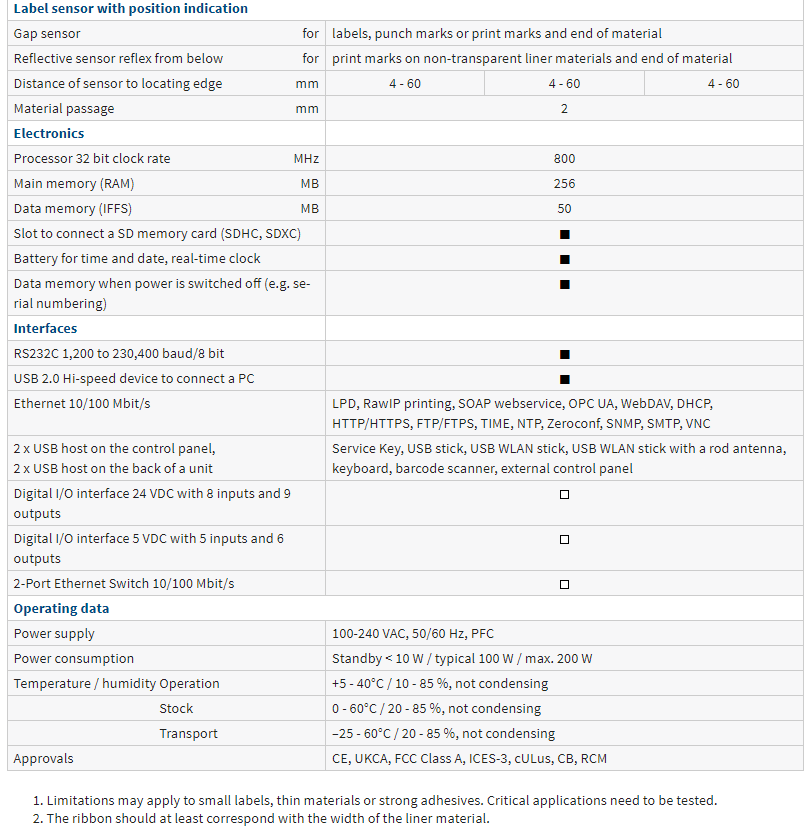

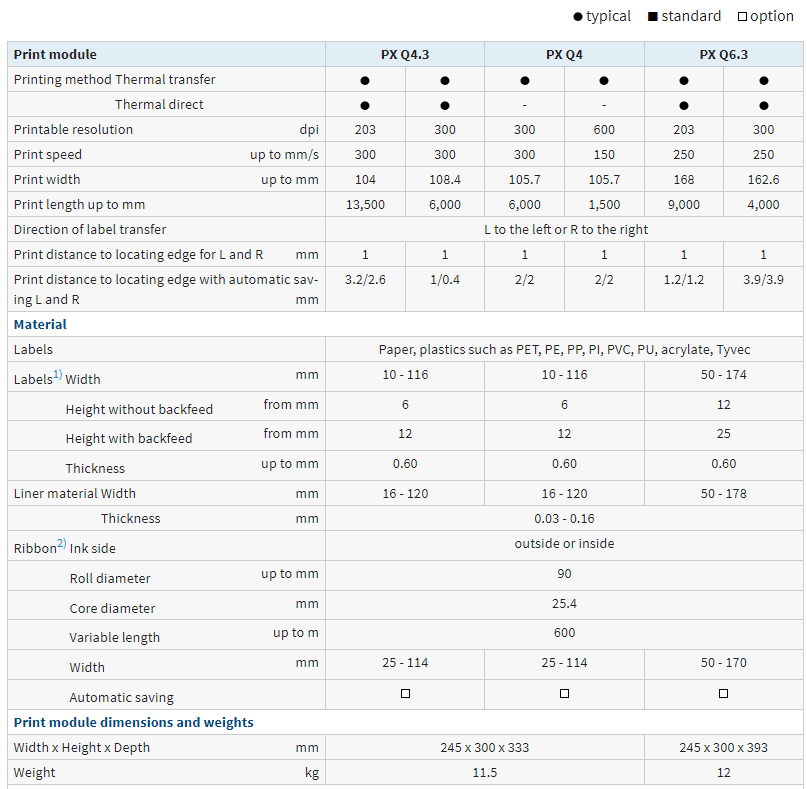

Specification
