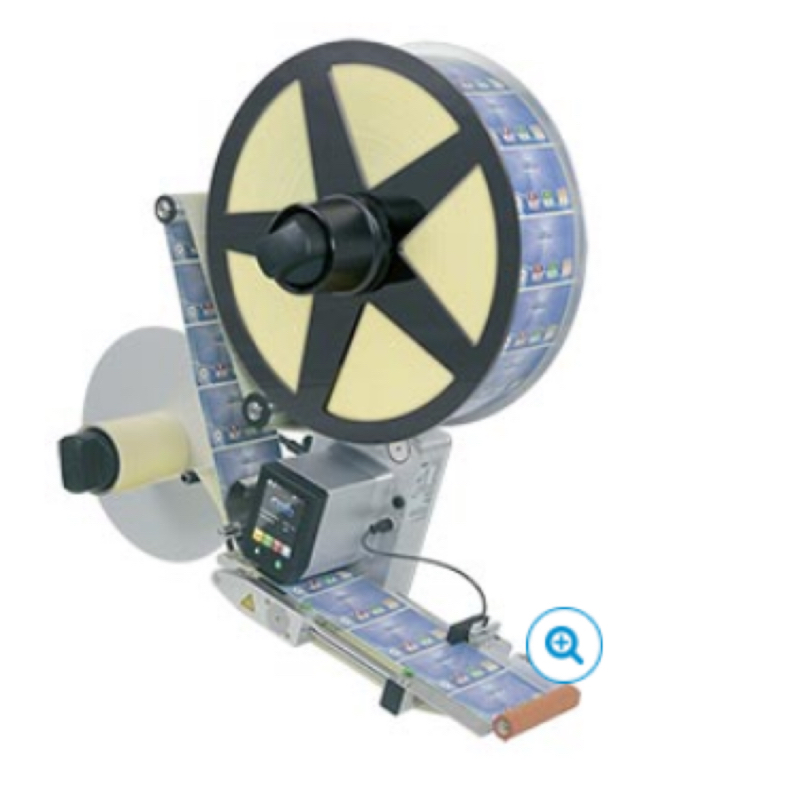

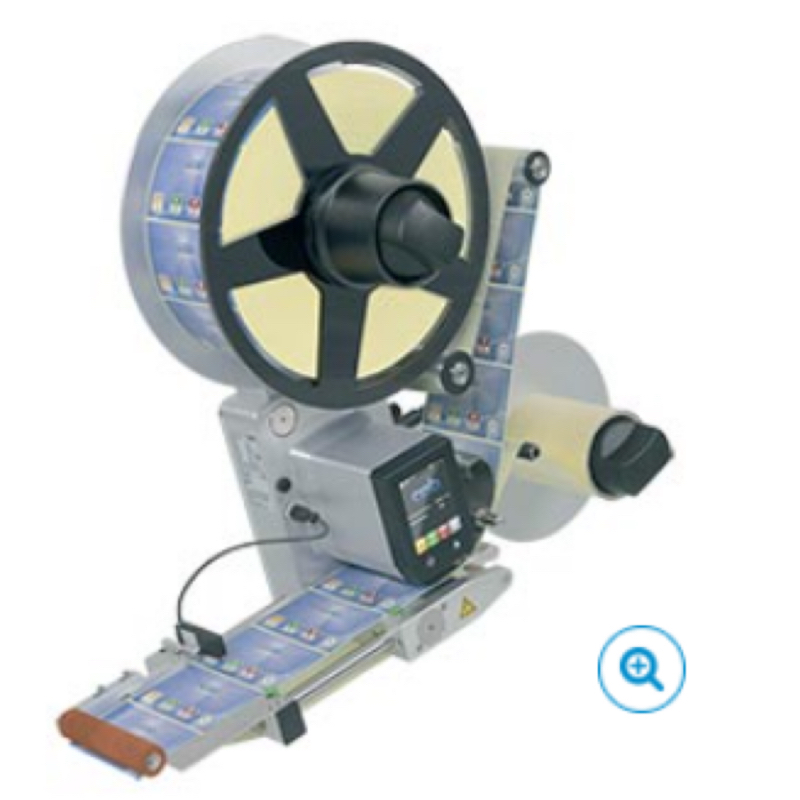

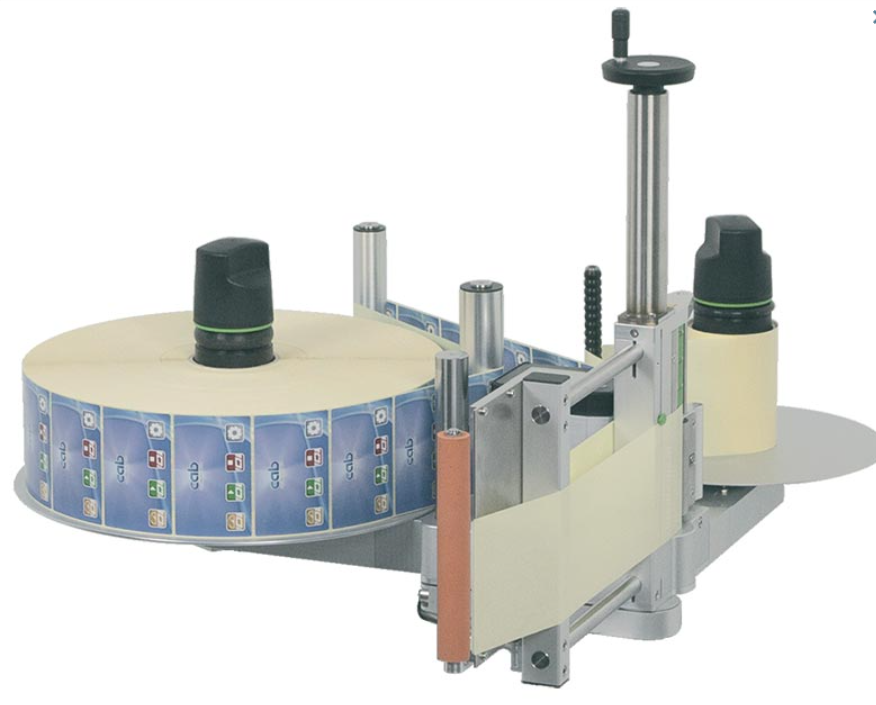

Labeling Head IXOR Smallest Servo-driven Labeling Head in Its Performance Class

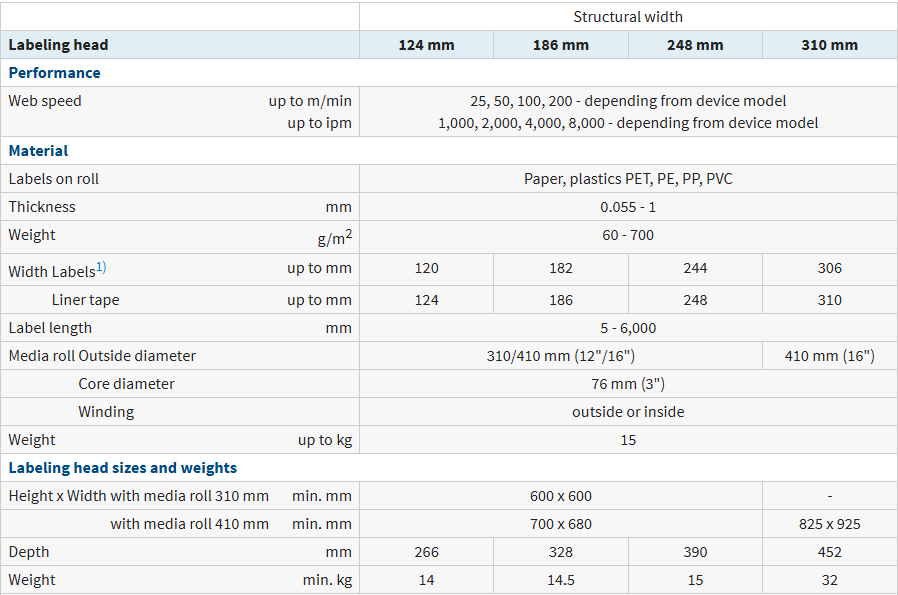

Labeling head :124 mm 186 mm 248 mm 310 mm
Performance
Web speed up to :25, 50, 100, 200 m/min
Material
Labels on roll: Paper, plastics PET, PE, PP, PVC
Thickness:0.055 - 1mm
Weightg/m2 60 - 700
Width Labels up to 120 182 244 306 mm
Liner tapeup to 124 186 248 310 mm
Label length: 5 - 6,000mm

Quantity:
Availability:





Inquire Add to Basket

Model:
IXOR
Brand:
CAB

labeling head labeling machine high speed

Product Description

A future-proof investment

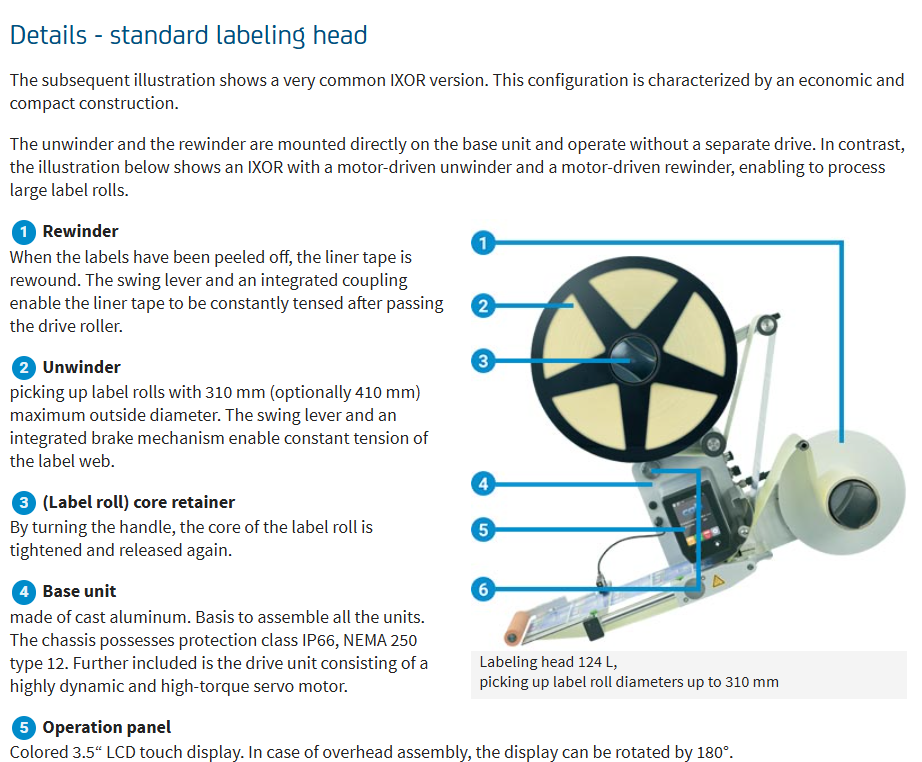

In the matter of mechanics, the IXOR can be ideally integrated in fully automatic labeling machines with the help of a modular construction kit. It can also be assembled to the conveyor belt of a production line by means of accessorial stands. Pre-printed labels are applied on products or packaging fast and precisely.

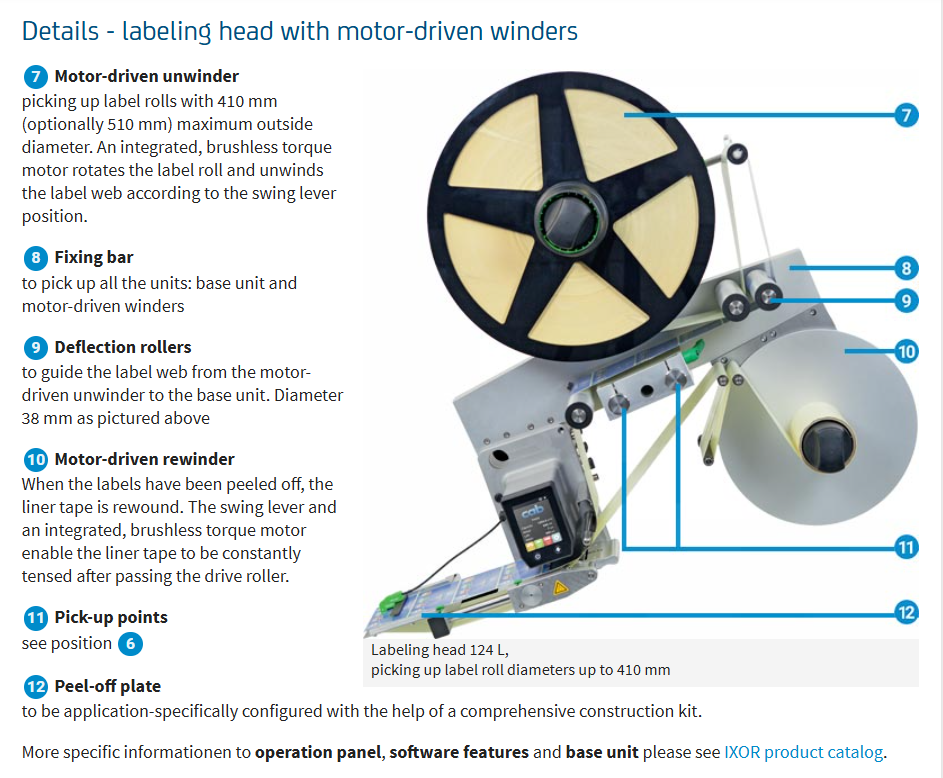

The device has the control unit integrated, a separate control cabinet is not required. The base unit can be selected from four structural widths in right-hand and left-hand designs. Unwinders pick up label rolls with 410 mm maximum outside diameter.

Zero downtime is possible through a redundant system.

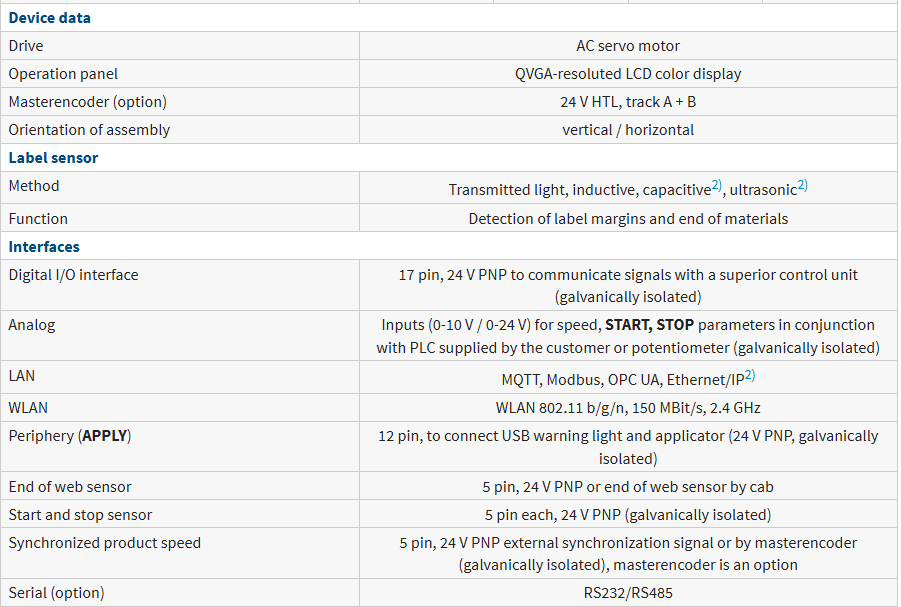

The labeling head is a key component for smart production. The LAN and WLAN interfaces enable the device to be connected to the superior control units of machines.

MQTT, Modbus and OPC UA ensure cross-platform and future-proof communication. Protocols are kept simple and lean, machine and plant data can be submitted event-driven. If data values change, updates are possible in real time.
