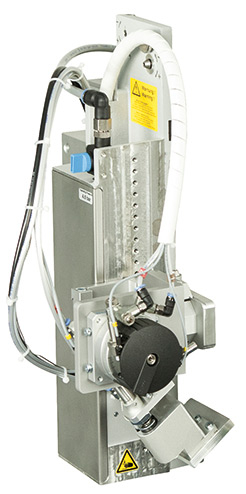

CAB Swing Applicator HQ 3214 - Precision Labeling Solution for HERMES Q Series Printers

Overview

The HQ 3214 is a swing-type labeling applicator designed for HERMES Q series industrial printers, enabling high-precision real-time labeling on production lines. Featuring an innovative swing mechanism, it is particularly suitable for side labeling applications in confined spaces.

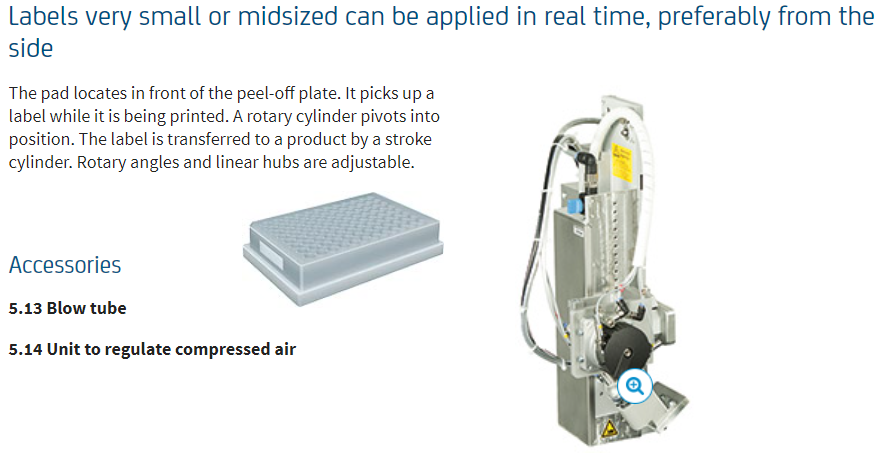

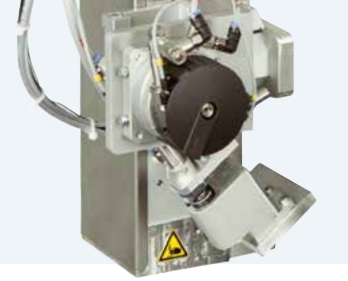

1. Precision Swing Mechanism: Uses rotary cylinder to accurately transfer labels to products with adjustable rotation angles and linear strokes

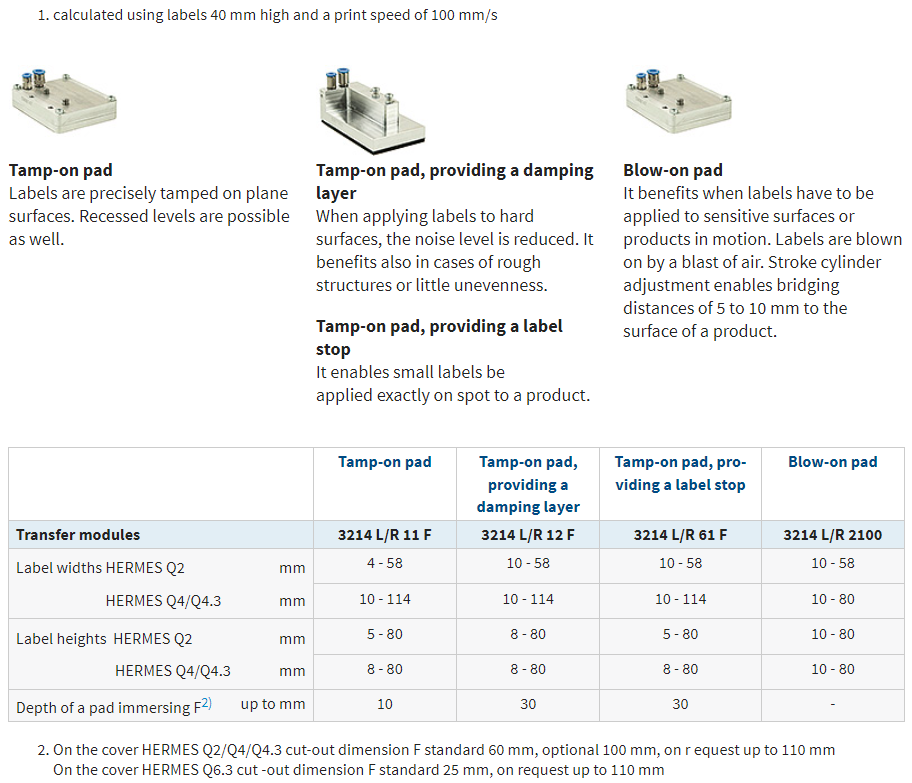

2. Multi-functional Labeling Pads: Three pad options available (with damping layer, with label stop, or blow-on type) for different requirements

3. Real-time Labeling: Simultaneously picks and applies labels while printing for maximum efficiency

4. Compact Design: Ideal for installations with space constraints

5. Easy Maintenance: Quick access to print mechanism for maintenance and material changes

6. Pneumatic Operation: Powered by 4.5bar compressed air with max power consumption of only 15W

Applications

Industries:

• Electronics manufacturing (PCB, component labeling)

• Automotive parts industry

• Medical device manufacturing

• Food & beverage packaging

• Logistics and warehouse management

Typical Use Cases:

1. Side labeling of serial numbers/QR codes on electronic products

2. Ingredient/expiry date labels on small packaging containers

3. Real-time product identification on production lines

4. Item marking in automated warehouse systems

5. Small label application on medical devices

Recommanded Printer:  HERMES Q （https://www.dggaofe.com/CAB-HERMES-Q-Labeling-System-Automated-Labeling-Solution-for-Production-Lines-pd500700548.html）

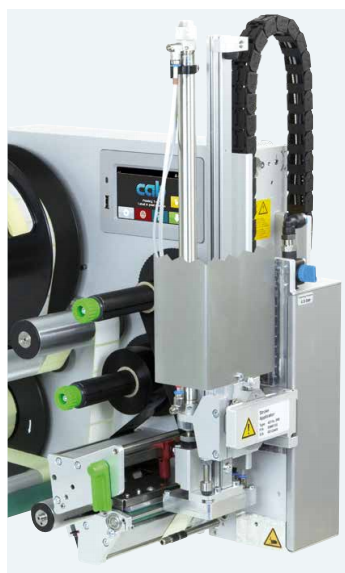

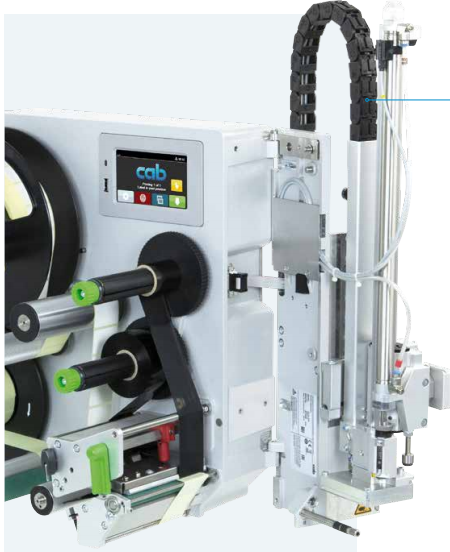

HERMES Q - Printing labels and applying them automatically in production lines

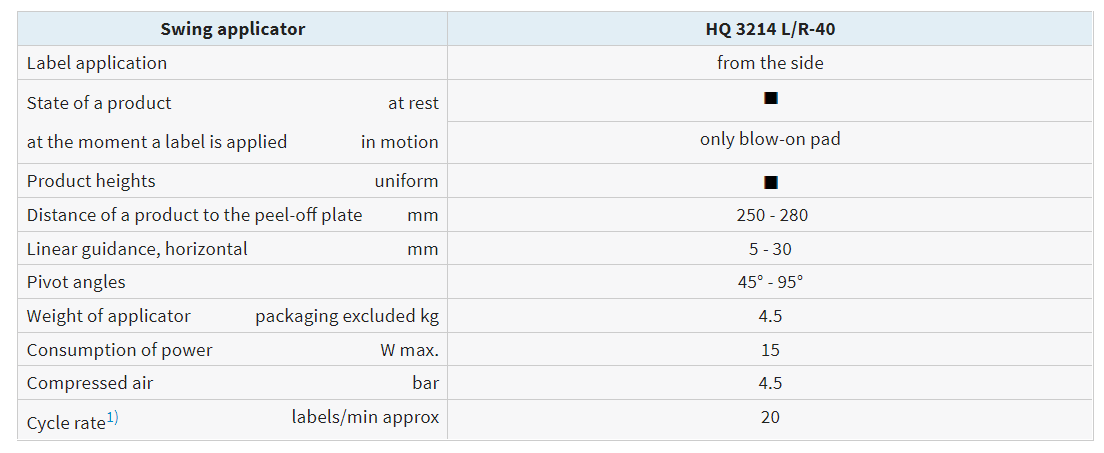

Specifications

The swing applicator can be configured for either left or right side label dispensing to accommodate different production line layouts.
