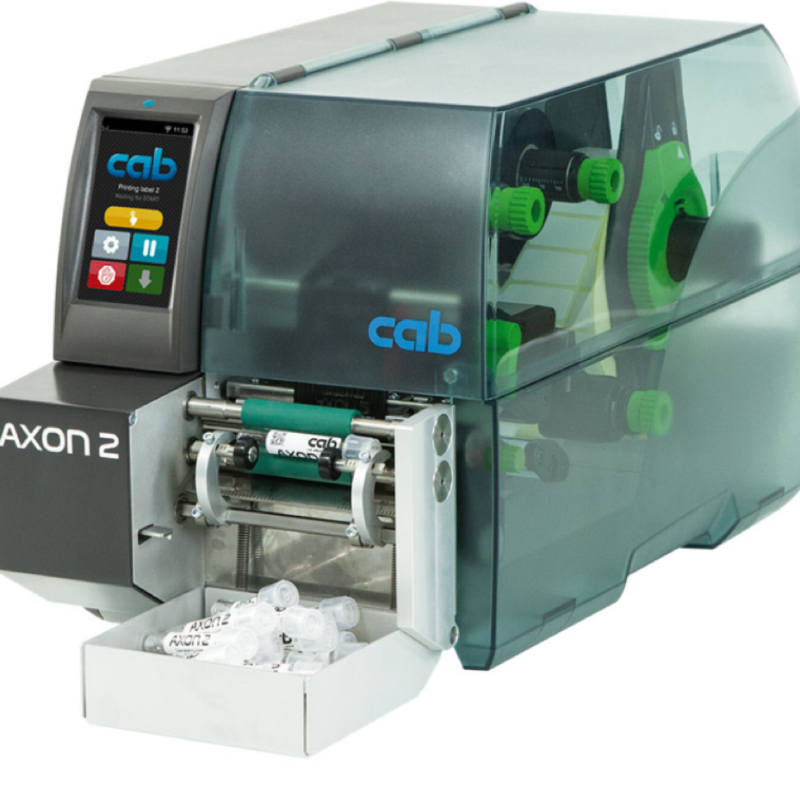

CAB AXON 2 Tube Labeling Module – Instant Barcode Labeling for Test Tubes & Vials

Overview

Unique labeling enables samples be assigned quick and reliably in labs. In practice, self-adhesive labels are applied individually to tubes or vials. 1D or 2D encoding enables samples be processed fully automated in transport and filing.

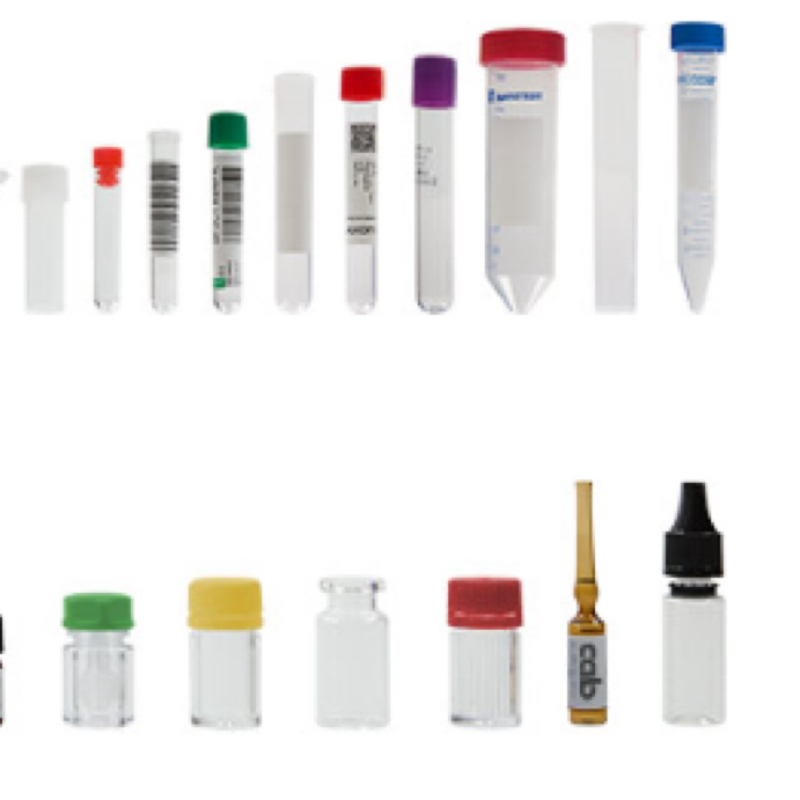

AXON has been designed for direct thermal and thermal transfer label printing. 300 dpi or 600 dpi print resolutions favor sharp-edge and high-contrast print images. The smallest codes and fonts can be verified reliably. A labeling cycle takes less than two seconds. Tubes and vials with or without a closure cap can be inserted by hand or automated by a handling system.

Symbols on the control panel support AXON be operated intuitively. Replacing a label roll or a ribbon is no big deal. In cases of cleaning or wear, print rollers and  transport rollers are easy to remove using a tool attached. RS232, USB, Ethernet and WLAN ensure data be transferred. AXON integrates to Laboratory Information Management Systems (LIMS).

If no PC is plugged, variable data can be entered on a control panel, with the help of a keyboard or a scanner. 110 VAC to 240 VAC input voltage at 50 / 60 Hz.

Application

1.Medical & Clinical Laboratories

Sample Management: Used for printing labels on test tubes and sample vials, supporting 1D/2D barcodes to meet strict medical sample tracking requirements (e.g., blood, urine, tissue samples).

Automated Workflow: Integrates with Laboratory Information Management Systems (LIMS), making it suitable for high-throughput sample processing in hospitals and third-party testing facilities.

2. Pharmaceutical & Biotechnology

Drug R&D and Production: Labels trial vials and raw material containers, complying with GMP traceability requirements.

Cold Chain Logistics: Low-temperature-resistant labels are ideal for tracking vaccines and biologics during transport.

Recommend Label Material

1. GAOFE B-376G Tube Labels (-80°C)https://www.dggaofe.com/Freezer-Grade-80-C-Transparent-PET-Labels-for-Cold-Chain-Barcode-Labels-for-Tuna-Frozen-Goods-pd505195548.html

• Suitable for cryovials, test tubes, and storage in ultra-low freezers


2. GAOFE B-364G Liquid Nitrogen Labels (-196°C)https://www.dggaofe.com/Chemical-Resistant-Cryogenic-Laboratory-Labels-pd536220058.html

•  Ideal for cryogenic storage in liquid nitrogen (vapor or liquid phase)

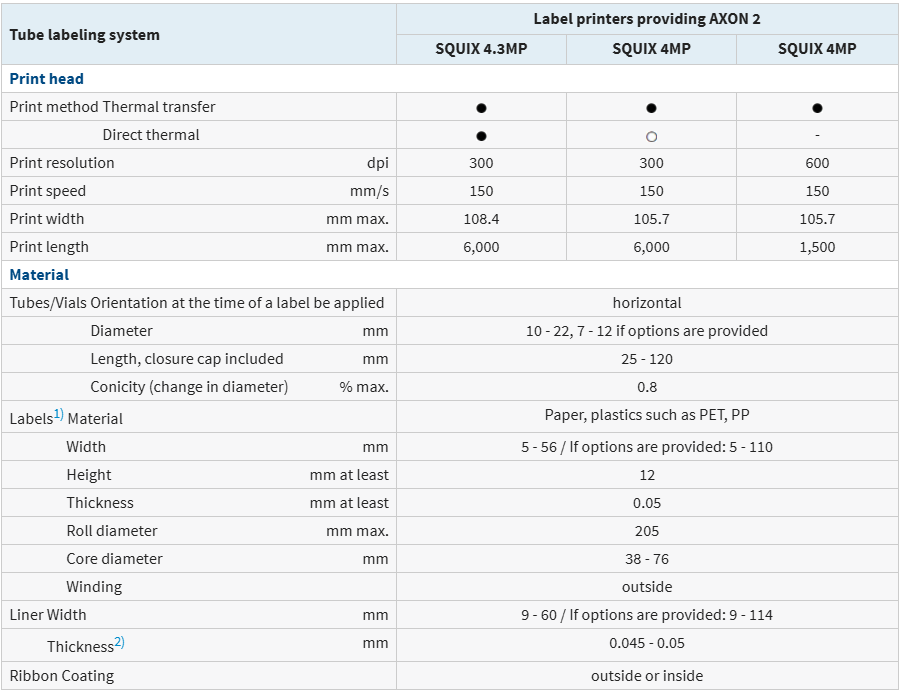

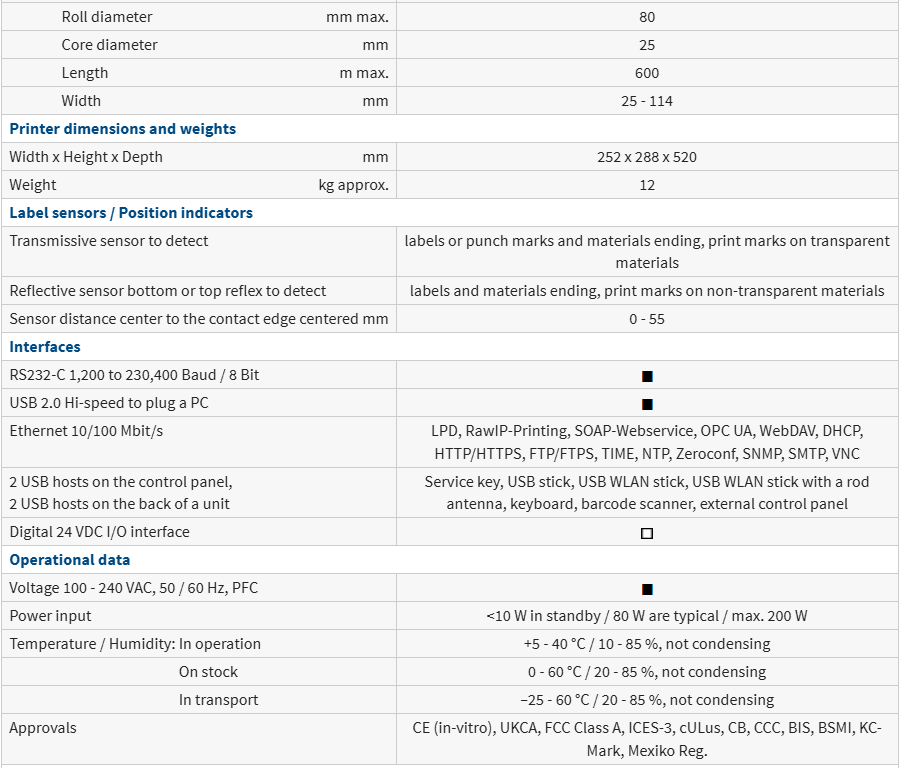

Specification
