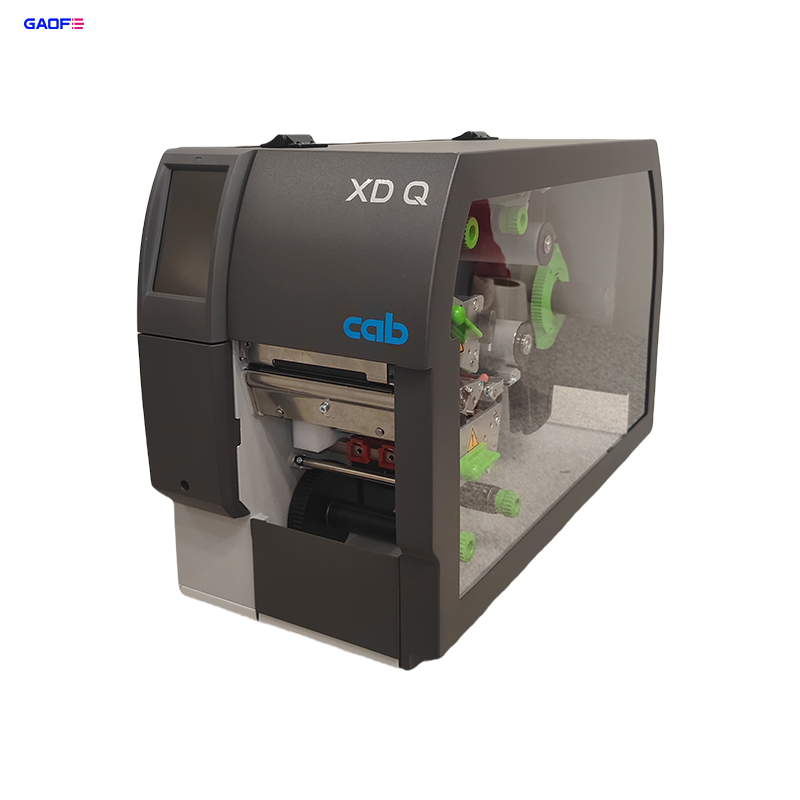

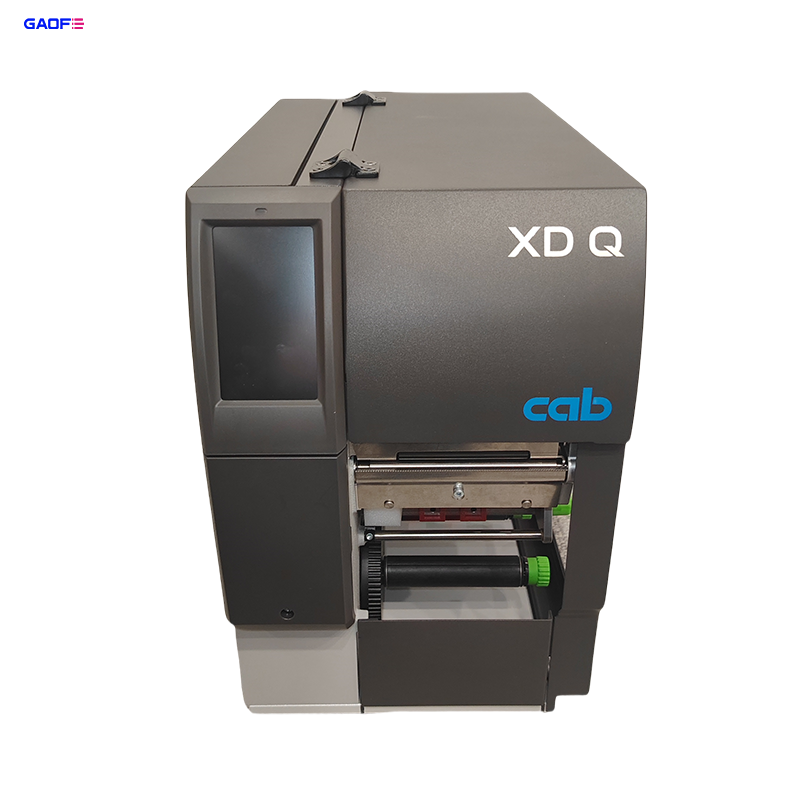

CAB XD4Q 300dpi Double-Sided Industrial Label Printer

Label printer : XD Q4/300
Print resolution : 300 dpi
Print speed mm/s max.: 150
Print width mm max.: 105.7
Width of a material mm max : 114
Print Technology:Direct Thermal,Thermal Transfer
Color Printing capability: Single Color
Printing side : top & bottom

Quantity:
Availability:





Inquire Add to Basket

Model:
CAB XDQ4
Brand:
CAB

300dpi Double-Sided Barcode Printing System Heavy-Duty CAB Printer XD4Q Series High-Speed 300dpi Label Printer

Product Description

Overview

High-Precision Industrial Printing System Overview

Our advanced industrial printing system delivers exceptional print quality with flexible resolution options—300 dpi for wider prints (up to 105.7 mm) and 600 dpi for high-detail applications (up to 54.1 mm) using the DR4-M60 print roller. The system features dedicated, non-interchangeable print heads for each resolution, ensuring optimal performance

Key Features & Benefits:

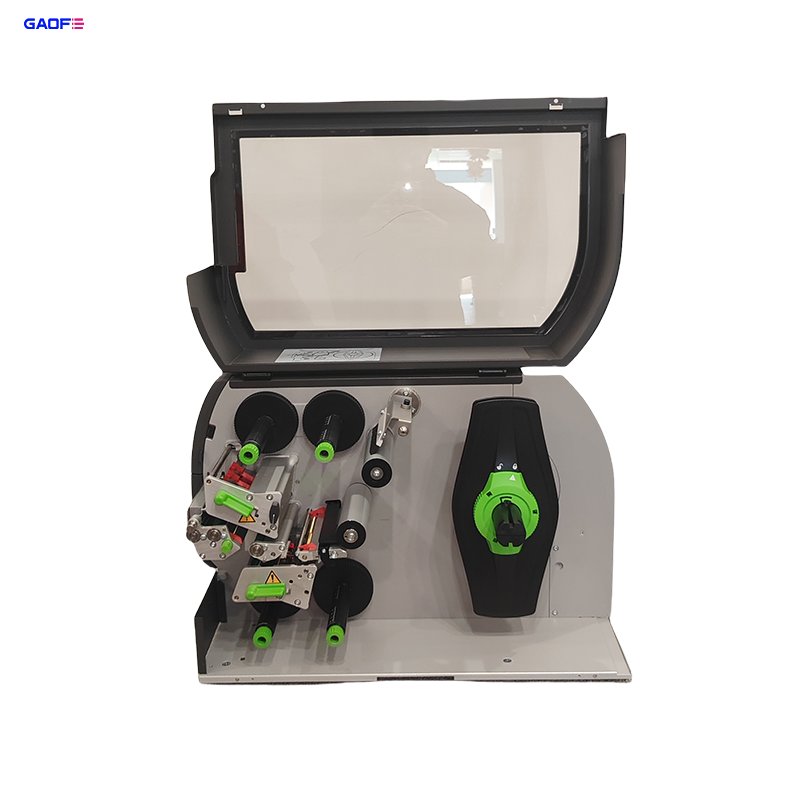

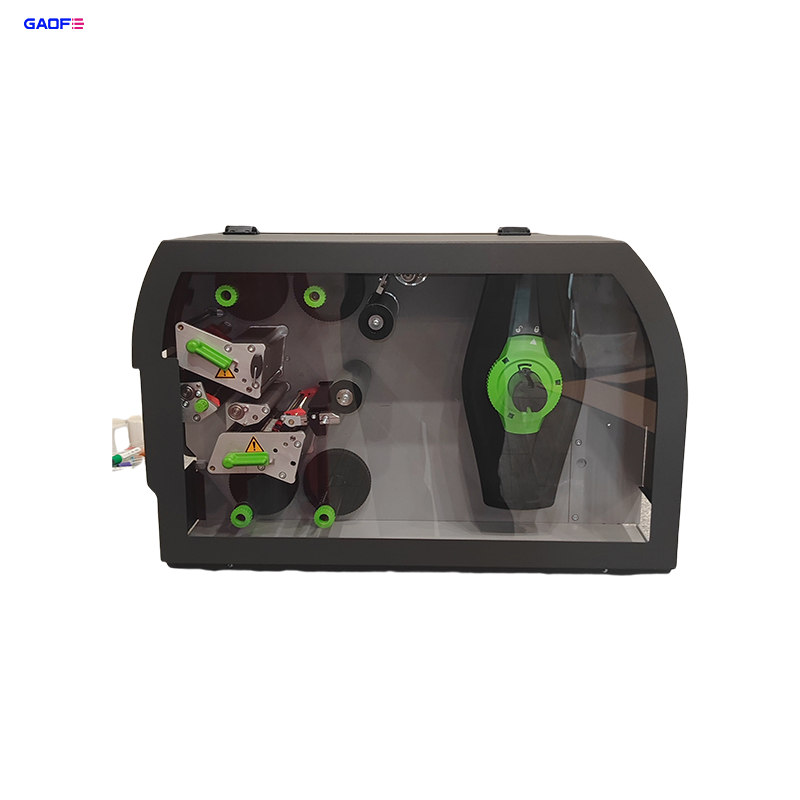

Dual Print Head Flexibility – Print on the top or bottom of materials with independent heating control for each head. When printing on top (Head 2), Head 1 automatically lifts, and the ribbon stops via an electromechanical brake for efficiency.
Precision Material Handling – Centered material guidance ensures sharp print alignment, especially for slim continuous materials, with adjustable width via a spindle mechanism.
Ribbon & Material Optimization – Automated ribbon saving on Head 1 when printing on the bottom, reducing waste. The system supports seamless continuous printing, eliminating label loss during cutting/perforation.
Versatile Cutting & Transport Options – Compatible with CSQ cutters and PSQ perforation cutters. Features a built-in separator for reliable ribbon detachment and improved feed accuracy.
Durable Transport Rollers – Steel rollers (standard for textiles) or optional rubber rollers (ideal for shrink tubes), with a pivoting design for easy material changes.
