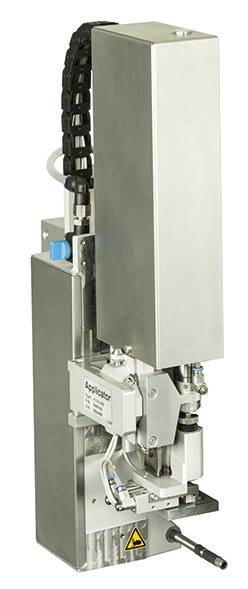

Stroke Applicators HQ 4114, HQ 4116 – Real-Time Label Application for Industrial Printing Systems

The Stroke Applicators HQ 4114 and HQ 4116 are robust, real-time label application modules designed for HERMES Q industrial printing systems. They enable precise, high-speed labeling from any direction, making them ideal for dynamic production environments.

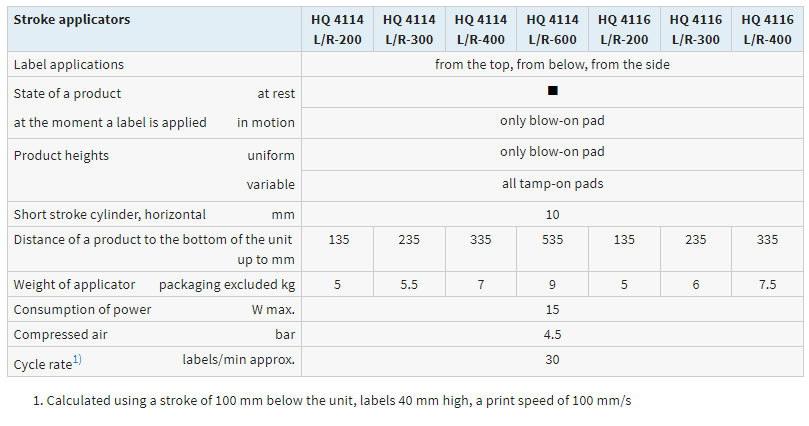

Function: Real-time label application
Compatibility: HERMES Q2, Q4, Q4.3, Q6.3
Label Size Range: Small to midsize labels
Operation: Pneumatic (short-stroke + main stroke cylinders)

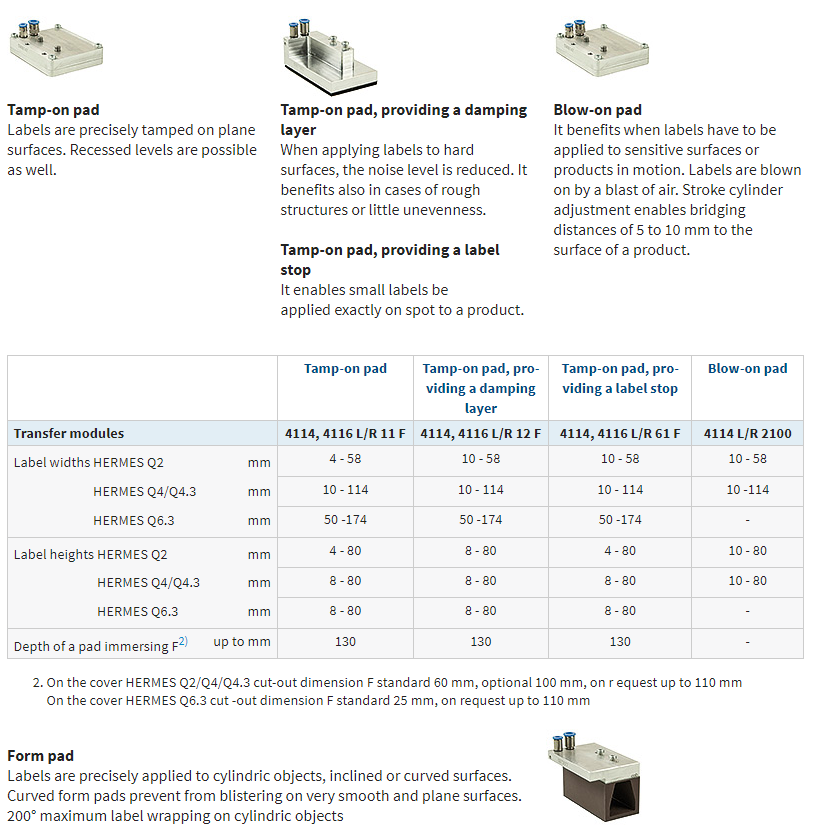

Pad Types: Tamp-on, blow-on, form pads

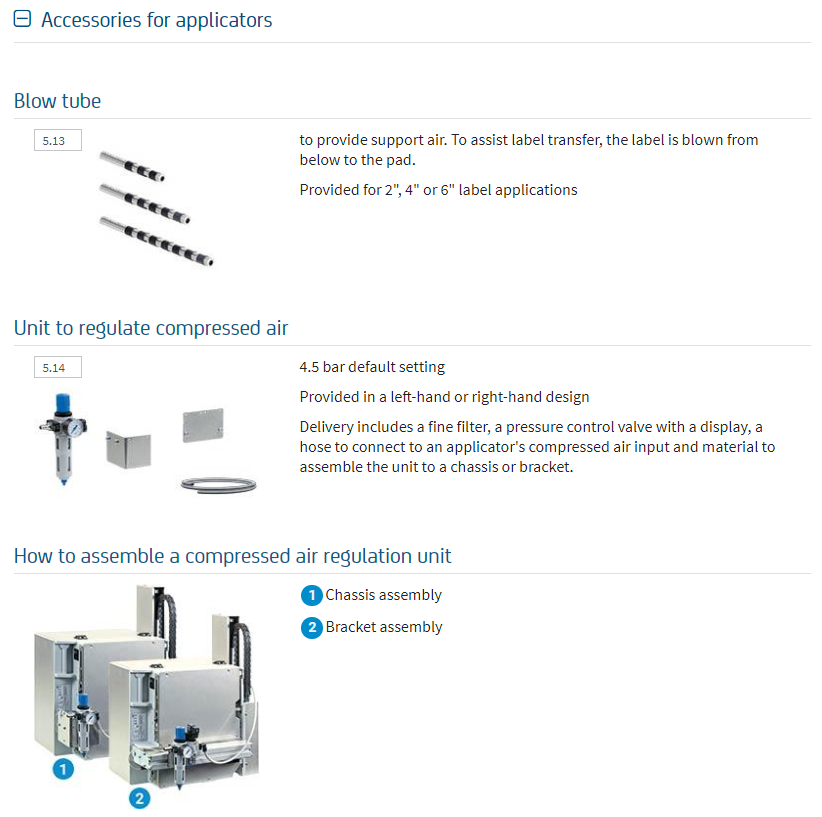

Air Pressure Requirement: 4.5 bar (default)
Max Label Height: 250 mm
Print Speed Sync: Up to 100 mm/s
Mounting Flexibility: Multi-directional integration

Quantity:
Availability:





Inquire Add to Basket

Model:
HQ 4114, HQ 4116
Brand:
CAB

industrial label applicators real-time labeling automatic label application Stroke Applicators HQ 4114 cab printing systems Hermes Q series labeling attachment HQ 4114 replacement labeling arm

Product Description

Overview

HQ 4114 & HQ 4116 Stroke Applicators: Professional Labeling Solutions for Hermes Q Printers

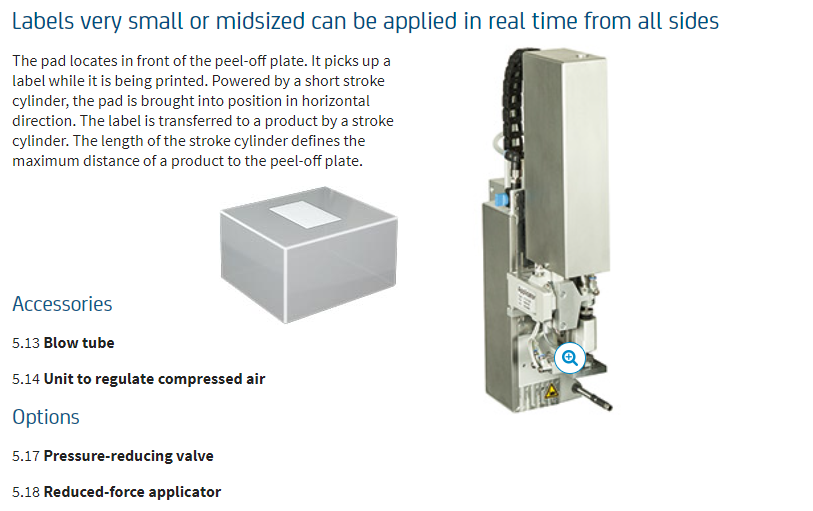

The cab Stroke Applicators HQ 4114 and HQ 4116 are high-precision printer accessory arms engineered exclusively for the Hermes Q series printers , delivering real-time labeling for very small to mid-sized labels across industrial and commercial applications. Designed for versatility, these applicators enable label placement from the top, below, or side—accommodating both stationary and moving products .
