Overview

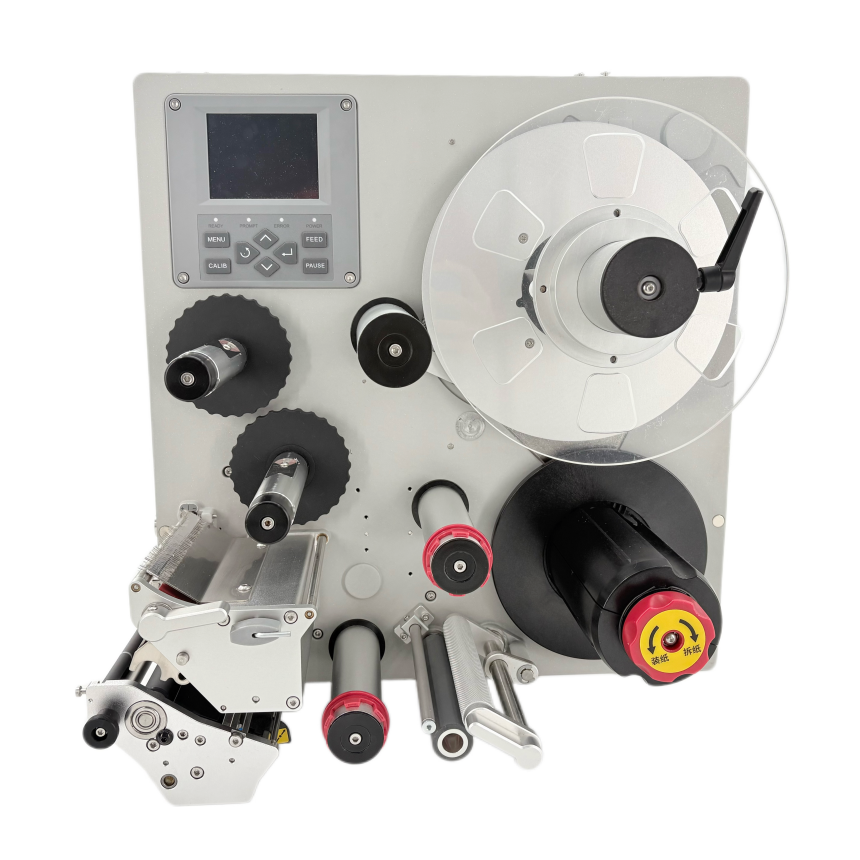

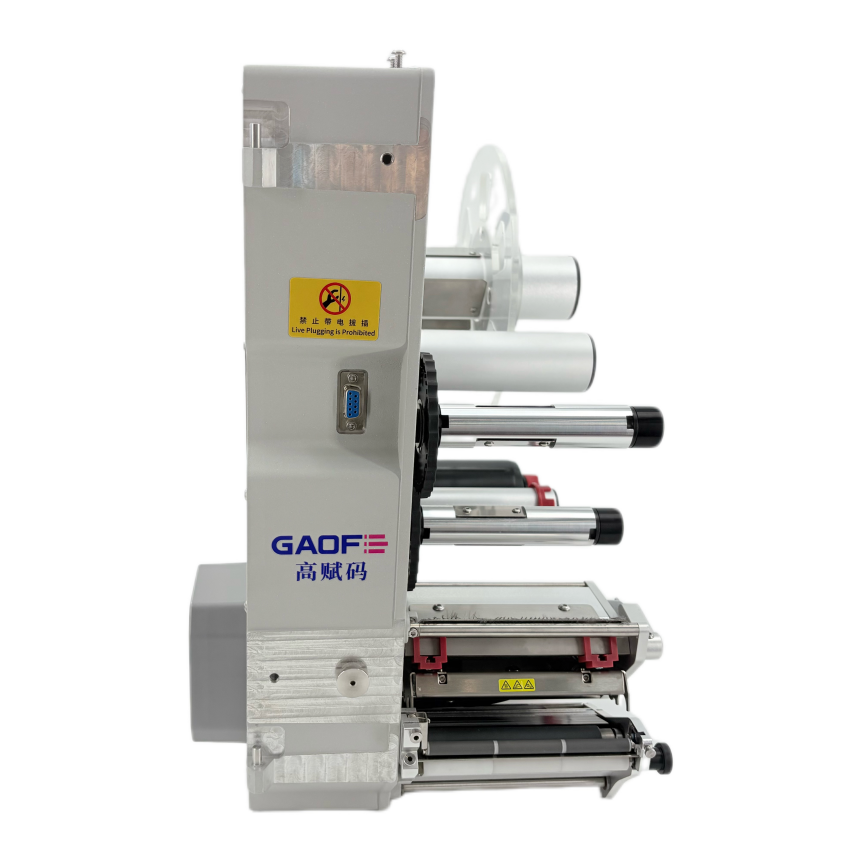

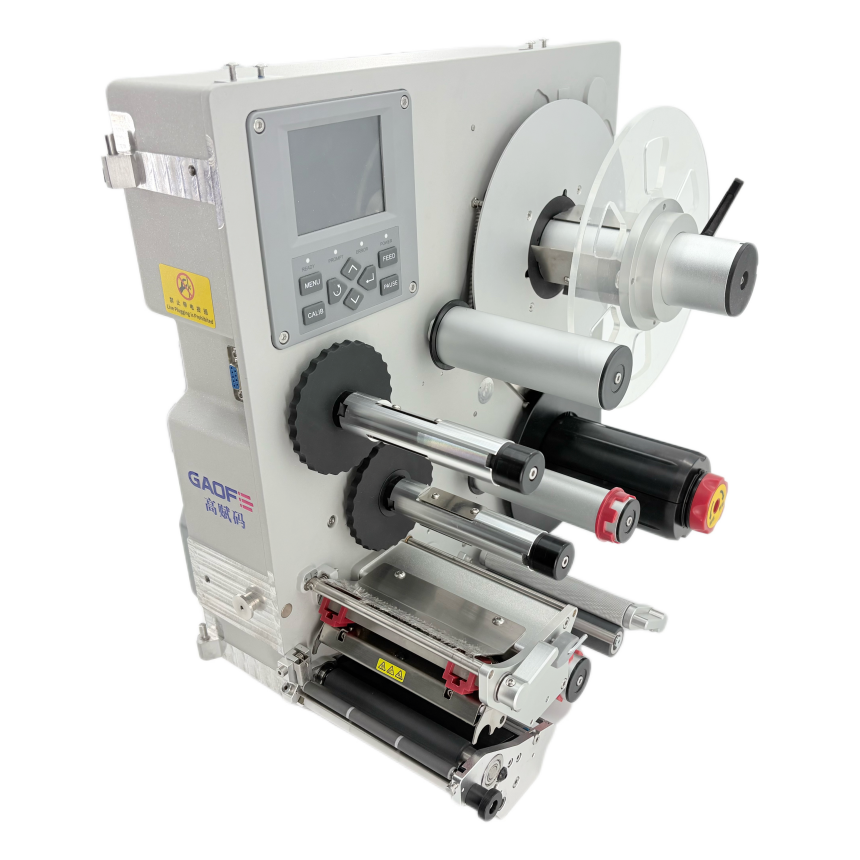

The GAOF GF-PP400 Automatic Printing and Labeling System is a robust, all-in-one industrial solution designed to streamline your production line's identification and tracking processes. It seamlessly integrates high-resolution barcode printing with precise automatic label application, eliminating manual handling and increasing efficiency. Engineered for high reliability and stability, it is the ideal "Barcode Butler" for demanding logistics, manufacturing, and warehousing applications that require consistent, high-quality labeling around the clock.
Features
High Reliability & Stability: Built for continuous 7 * 24-hour operation in industrial settings, ensuring uninterrupted production flow.
Versatile Printing Engine: Supports both Thermal Transfer and Direct Thermal printing modes on a wide range of label types (spacing paper, continuous, die-cut, black mark paper, etc.).
Superior Print Quality: 600 DPI resolution ensures crisp, highly scannable 1D and 2D barcodes, including QR Code, Data Matrix, PDF417, CODE128, and many more.
Fast & Accurate Application: Prints at 8 IPS (200mm/s) and applies labels with an accuracy of ±1mm using a pneumatic/electric applicator arm with a protective buffering mechanism to prevent product surface damage.
Smart Detection & Alerts: Integrated sensors for label exhaustion, ribbon low, print head open, and black mark detection. Features a 3-color LED with buzzer alarm for immediate warning prompts.

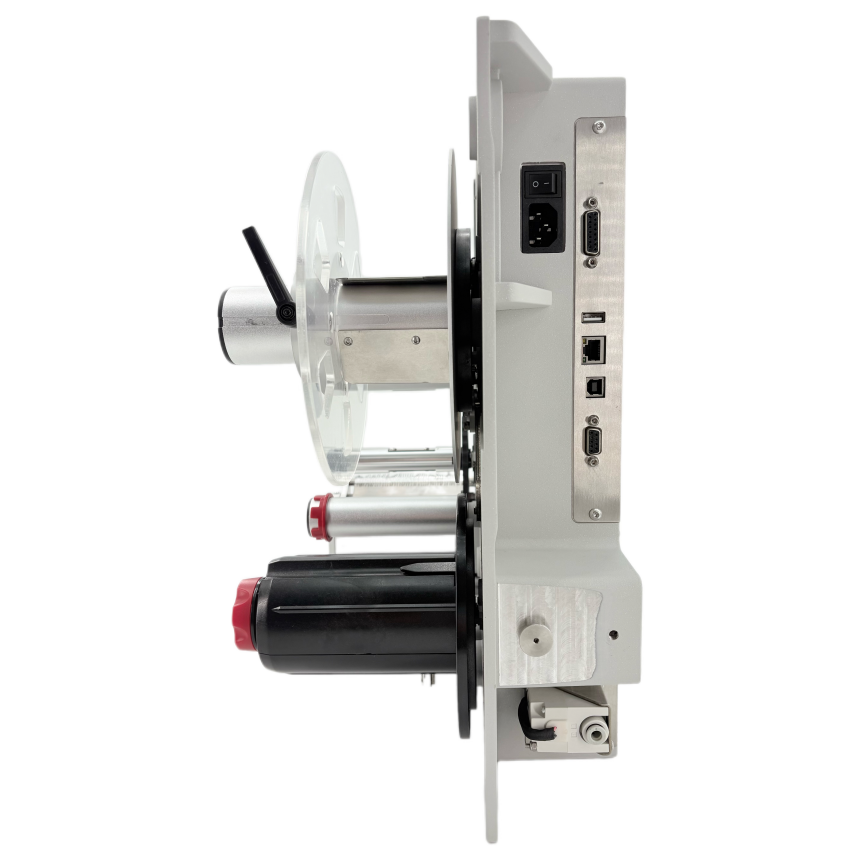

High Connectivity: Equipped with multiple interfaces including Ethernet (100/1000M), USB, RS232, Parallel port, and programmable I/O for seamless integration into existing factory networks and automation systems.
User-Friendly Operation: 3.5-inch touch screen displays real-time printing status, fault information, and supports a Chinese language interface for easy local management.
Application
Logistics & Parcel Sorting: Printing and applying shipping labels, tracking barcodes, and sortation labels directly onto cartons.
Manufacturing & Production Lines: Product identification, asset tagging, and compliance labeling on electronics, automotive parts, and consumer goods.
Warehousing & Inventory Management: Pallet labeling, bin location tags, and inventory control labeling.
Retail & E-commerce: Applying price tags, product information labels, and QR codes on various packaging.

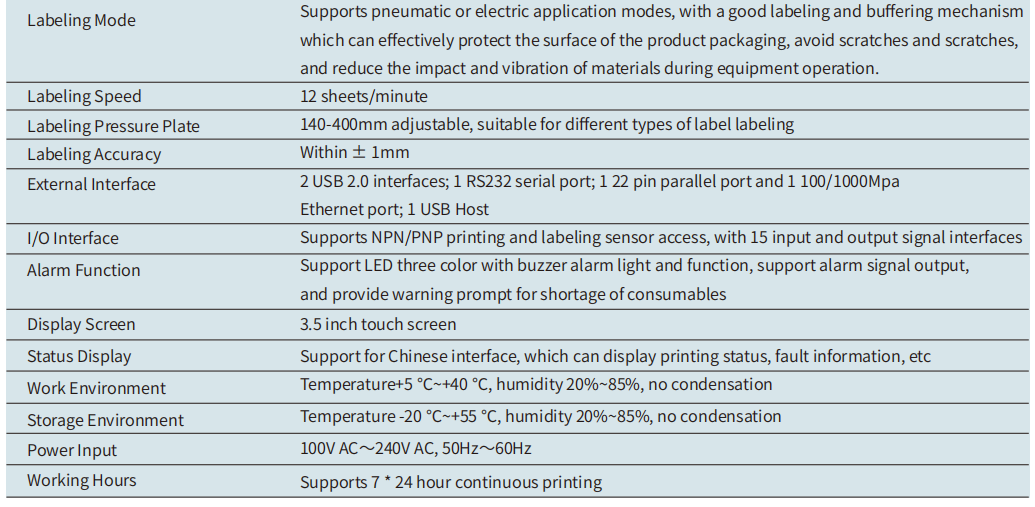

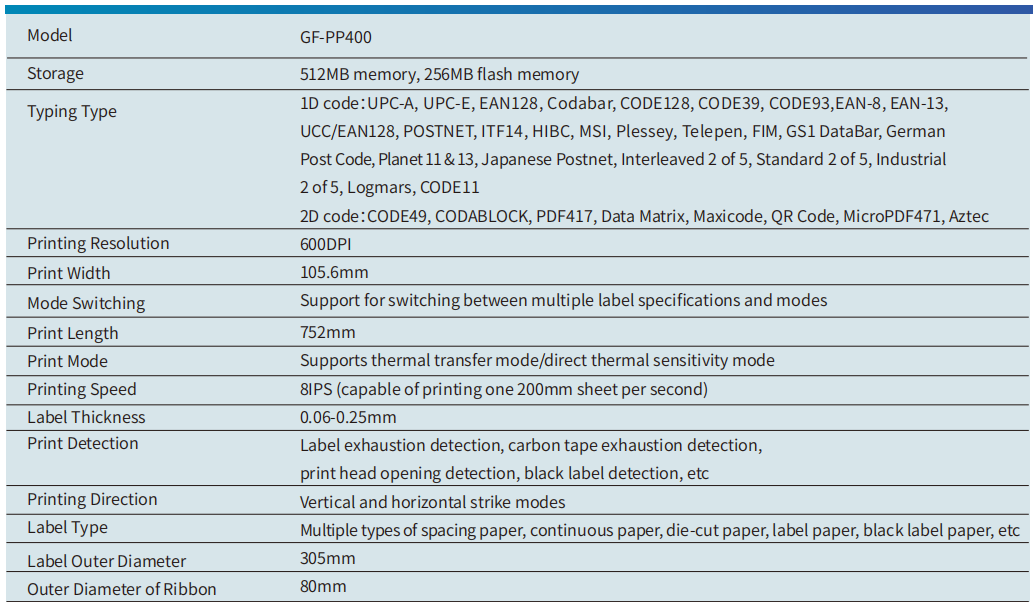

Specification
