Overview
The GF-120G is a premium transparent polyester label engineered specifically for demanding electronics and electrical applications. Designed to provide a clear, virtually “invisible” look on equipment while maintaining superior durability, these labels offer the perfect blend of aesthetics and functionality. The high-clarity polyester material allows the underlying surface color and texture to show through, ensuring critical identification and safety information remains permanently legible without obstructing the device's appearance. Ideal for nameplates, rating plates, and asset tagging where a clean, professional finish is required.
Feature
Crystal-Clear Finish: Provides a discreet, professional appearance that seamlessly blends with equipment surfaces.
Exceptional Durability: Resistant to abrasion, chemicals, solvents, and moisture, ensuring longevity in harsh environments.
High Temperature & Weather Resistance: Withstands exposure to heat, UV light, and varying climatic conditions without yellowing or degrading.
Excellent Dimensional Stability: Remains flat and adheres strongly without curling, even on curved surfaces.
Permanent Adhesive: Features a strong acrylic adhesive that bonds permanently to a wide variety of clean, smooth surfaces
Application
Electrical panel and component identification
Clear overlay labels for machinery and instrumentation
Rating plates and certification labels on electronic devices
Asset tracking tags for IT and lab equipment
Branding and model/serial number labels on consumer electronics
Warning and instruction labels where background visibility is desired
Optimal Printing Solutions
Recommended Ribbons:
Resin-Based Thermal Transfer Ribbons：Model: TR4032B https://www.dggaofe.com/Resin Ribbon TR4032B - Buy Resin ribbon Product on GAOFE https://www.dggaofe.com/Resin-Ribbon-TR4032B-pd551383948.html
Feature
This ribbon is specifically formulated for polyester materials. It provides excellent adhesion to the transparent surface, producing sharp, high-contrast barcodes and text that are highly resistant to smudging, scratching, and fading.
Recommended Printers:
Industrial-Grade Printers

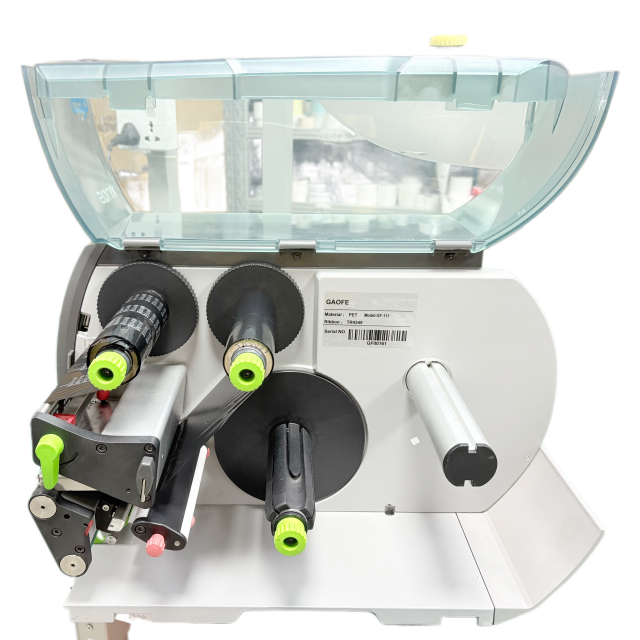

Recommended Printer: CAB Squix4 (600dpi)https://www.dggaofe.com/CAB-Squix-4-Industrial-Label-Printer-High-Efficiency-and-High-Resolution-Printer-pd563706548.html
This industrial-grade thermal transfer printer delivers high-resolution (600 dpi) output, which is critical for printing precise, high-density barcodes and QR codes on clear labels. Its consistent printhead pressure ensures reliable ribbon transfer onto the polyester material.
Other Option
| NO. | NAME | MODEL | Color |
| 1 | Gossy PET Label | GF-112G | white |
| 2 | Matte PET Label | GF-114G | white |
| 3 | Silver PET label
| GF-101G | silver |
| 4 | Normal synthetic label | B-363G | white |
Specification
| Category | Attribute | Specification / Value |
| Surface Material | Name / Type | Transparent Polyester Film (PET) |
| Thickness | 0.045 mm ± 0.005 mm |
| Basis Weight | 63 g/m² ± 5 g/m² |
| Color | Transparent |
| Smoothness | Excellent |
| Printability | Excellent |
| Die-Cutting | Excellent |
| Adhesive | Type | Permanent Acrylic |
| Thickness (Coating) | 0.020 mm ± 0.003 mm |
| Dry Coating Weight | 20 g/m² ± 3 g/m² |
| Initial Tack | ≥ 4 |
| Adhesion Strength (180° Peel) | ≥ 1 kgf/inch |
| Release Force | 6 gf/inch ± 3 gf/inch |
| Holding Power | 24 hr/kg×inch |
| Temperature Range | -5°C to +100°C |
| Release Liner | Name / Type | PE Coated Release Paper (Yellow) |
| Thickness | 0.155 mm ± 0.008 mm |
| Basis Weight | 140 g/m² ± 5 g/m² |
| Color | Yellow |
| Smoothness | Excellent |
| Performance | Weather Resistance | Excellent |
| Solvent Resistance | Excellent |
| Water Resistance | Excellent |
| Solvent Retention | ≤ 2.0% |
| General | Product Code | GF-120G |
| Full Material Construction | Transparent Polyester / Acrylic Adhesive / PE Liner |
| Storage Life | 12 Months |
| Storage Conditions | 25°C, 30%-70% RH; Cool, Ventilated, Avoid Direct Sunlight |
