GF-7816G
GAOFE
Overview
Feature
The matte PET facestock is topcoated for optimized thermal transfer printing, ensuring sharp, smudge-resistant printing of hazard information and barcodes.
Equipped with #310 acrylic adhesive (0.8 mil/20 micron), this label offers high-strength adhesion on a variety of surfaces including high surface energy (HSE) plastics, metals, glass, and polyethylene, resisting oozing and maintaining bond strength in harsh conditions.
55# densified kraft liner (3.2 mil/81 micron) ensures consistent die cutting and smooth label dispensing, reducing production waste.
Recognized by UL (File MH16411) and accepted by CSA (File 99316), meeting global safety and compliance standards for hazardous material labeling.
Excellent resistance to chemicals, temperature extremes, and humidity, ensuring label integrity in industrial, logistics, and storage environments.
Application

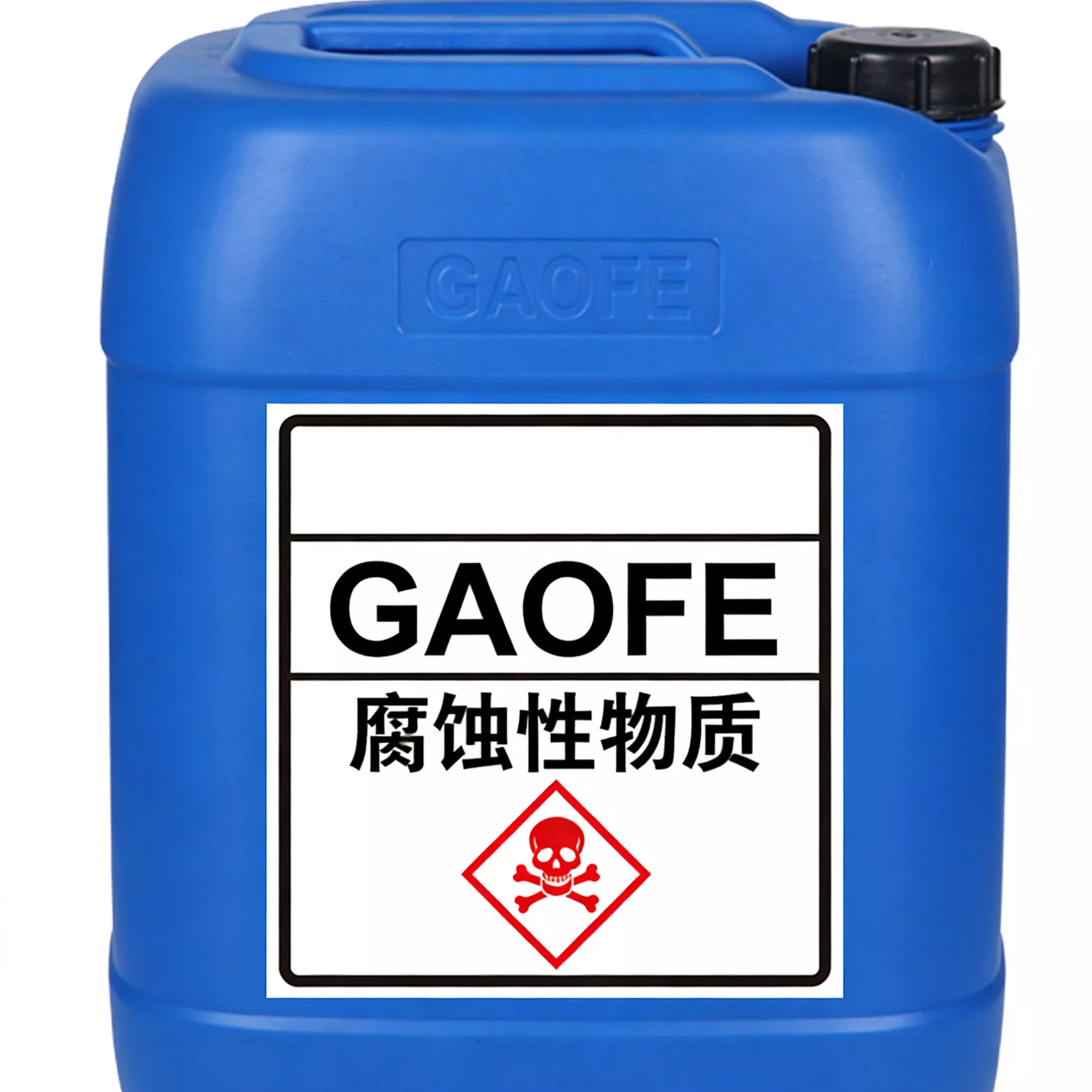

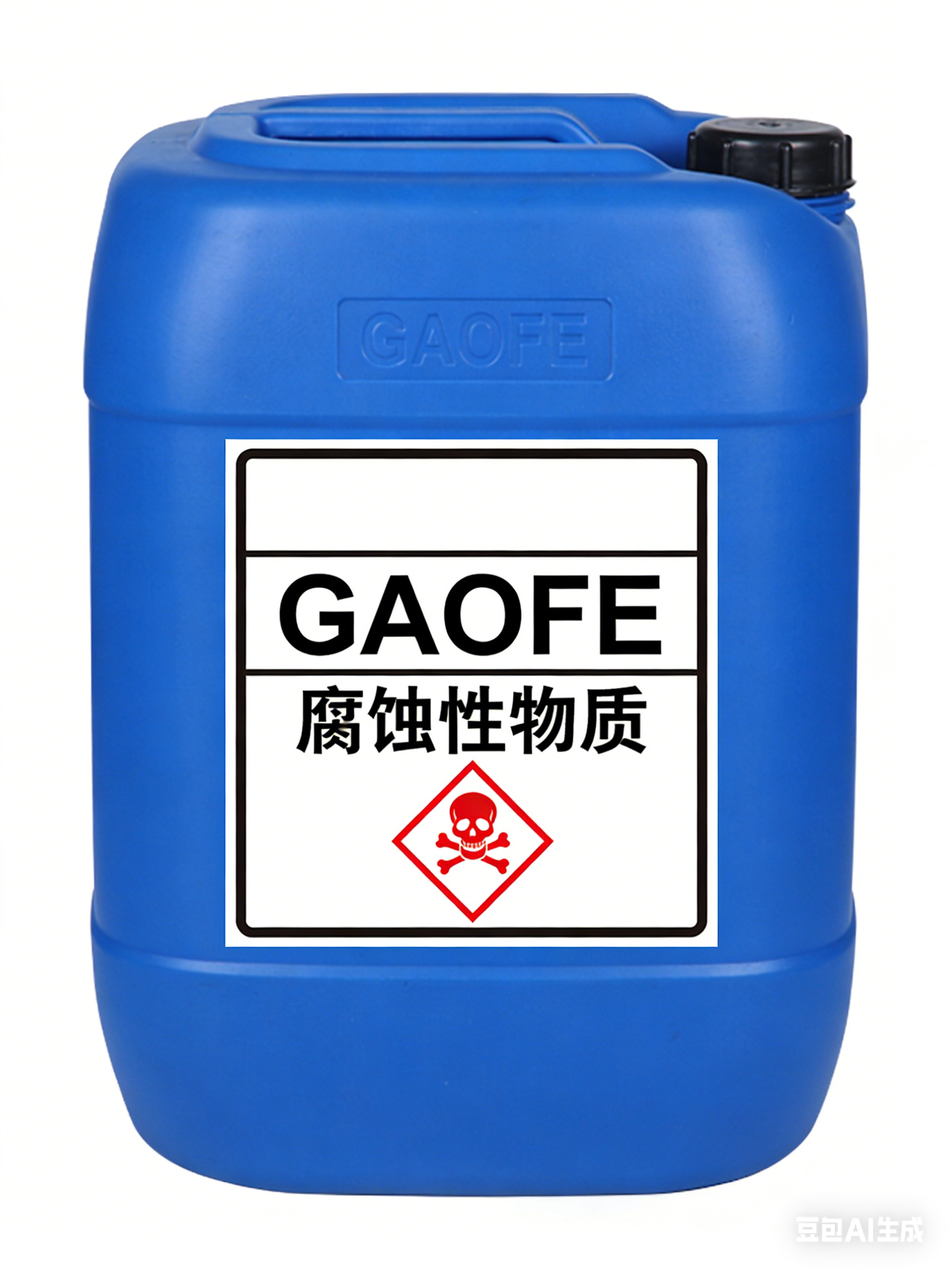

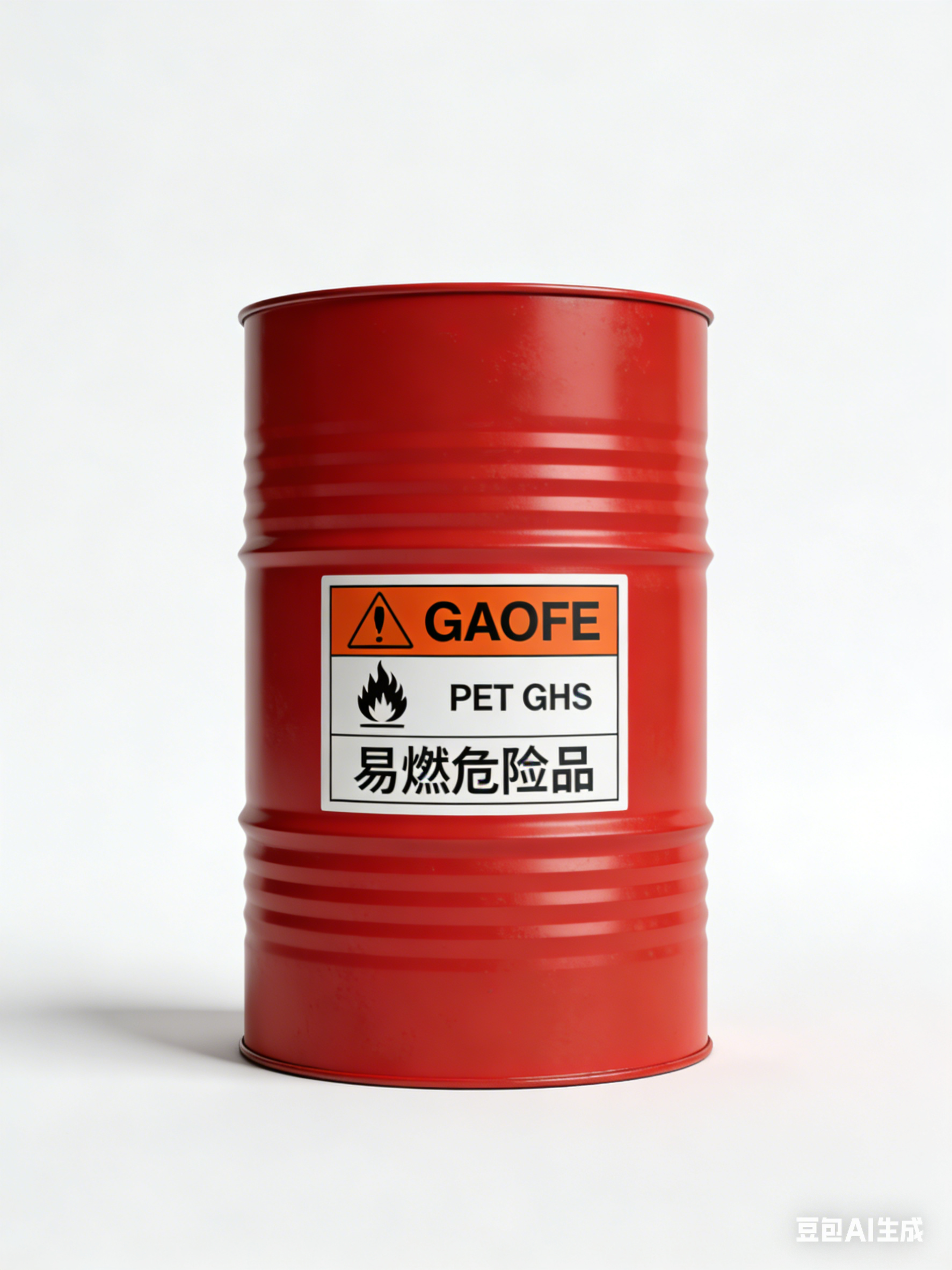

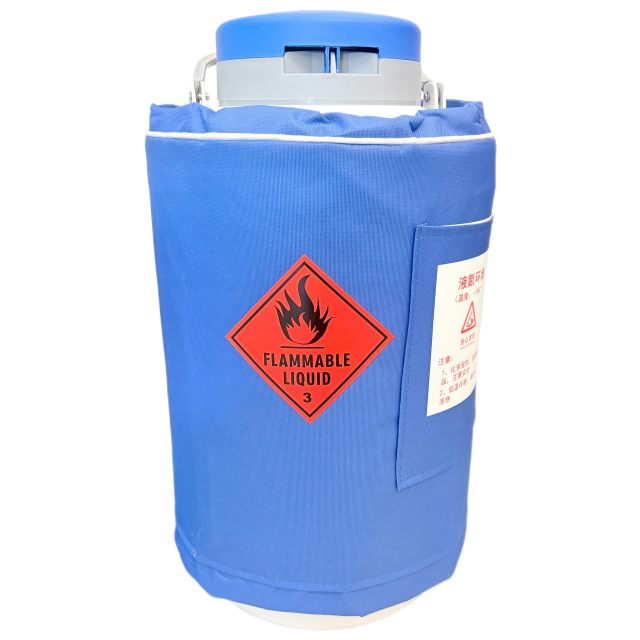

Hazardous Material Identification: GHS-compliant warning labels for chemical drums, containers, and packages, displaying flammable, corrosive, toxic, and other hazard classifications.
Logistics & Transport: UN dangerous goods labels for shipping containers, pallets, and transport vehicles, meeting international transport regulations for hazardous cargo.
Industrial & Manufacturing: Warning, instruction, and service labels for industrial equipment, hazardous storage areas, and production facilities.

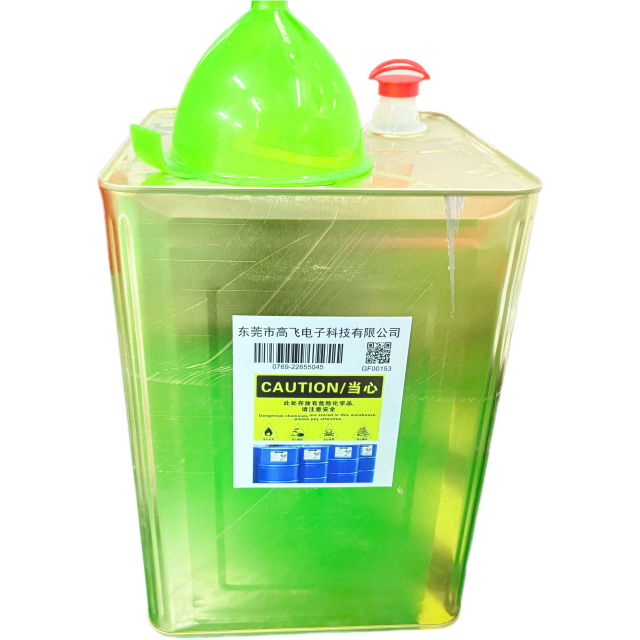

Warehouse & Storage: Hazardous storage area labels, shelf marking for hazardous substances, and waste disposal labels for hazardous waste containers.
Laboratory & Research: Chemical reagent labels, lab equipment warning labels, and safety instruction labels for academic and industrial labs.
Asset & Property Identification: Durable rating plates and asset labels for equipment used in hazardous environments.
Optimal Printing Solutions
Recommended Ribbons:
TR4510B Resin ribbon：https://www.dggaofe.com/GAOFE-TR4510B-Resin-Ribbon-for-High-Temperature-Labels-Durable-Printing-Solution-pd519083948.html
Recommended printer:
CAB SQUIX4 600 DPI: https://www.dggaofe.com/CAB-Squix-4-Industrial-Label-Printer-High-Efficiency-and-High-Resolution-Printer-pd563706548.html
This industrial-grade thermal transfer printer delivers high-resolution print output at 600 dpi, ensuring maximum legibility for small fonts, detailed GHS pictograms, and high-density barcodes. Its robust design is suited for continuous operation in demanding industrial labeling environments.
Specification:
| Component | Specification |
| Facestock | 2.0 mil (51 micron) Matte radiant white polyester (topcoated for thermal transfer printing) |
| Adhesive | 0.8 mil (20 micron) #310 Acrylic |
| Liner | 3.2 mil (81 micron) 55# Densified kraft |
| Surface | Initial (10 Minute Dwell/RT) 180° Peel | Initial (10 Minute Dwell/RT) 90° Peel | Conditioned 3 Days at 72°F (22°C) 180° Peel | Conditioned 3 Days at 72°F (22°C) 90° Peel |
| Stainless Steel | 43 oz./in (47 N/100 mm) | 35 oz./in (38 N/100 mm) | 51 oz./in (56 N/100 mm) | 41 oz./in (45 N/100 mm) |
| Polycarbonate | 47 oz./in (51 N/100 mm) | 37 oz./in (40 N/100 mm) | 52 oz./in (57 N/100 mm) | 43 oz./in (47 N/100 mm) |
| Polypropylene | 18 oz./in (20 N/100 mm) | 16 oz./in (18 N/100 mm) | 18 oz./in (20 N/100 mm) | 24 oz./in (26 N/100 mm) |
| Glass | 52 oz./in (57 N/100 mm) | 34 oz./in (37 N/100 mm) | 68 oz./in (74 N/100 mm) | 47 oz./in (51 N/100 mm) |
| HD Polyethylene | 24 oz./in (26 N/100 mm) | 16 oz./in (18 N/100 mm) | 33 oz./in (36 N/100 mm) | 20 oz./in (22 N/100 mm) |
| LD Polyethylene | 20 oz./in (22 N/100 mm) | 12 oz./in (13 N/100 mm) | 32 oz./in (35 N/100 mm) | 22 oz./in (24 N/100 mm) |
