Label failure during tire manufacturing introduces severe operational risks. Lost traceability leads to compliance violations, untrackable inventory, and expensive rework. The vulcanization process presents an extremely hostile environment. Labels must survive intense heat, immense pressure, and chemical cross-linking without losing barcode readability or structural integrity. Standard synthetic tags simply melt or detach under these extreme conditions. Procurement and engineering teams need a reliable technical evaluation framework to select the correct identification solutions. Choosing the right materials depends heavily on rubber composition, curing profiles, and factory printing requirements. This guide explores the critical factors involved in selecting high-performance Vulcanized Tire Labels to ensure seamless lifecycle tracking from the green tire stage through final distribution.
Temperature Thresholds: Vulcanized tire labels must consistently withstand curing temperatures ranging from 150°C to 210°C (300°F+) for extended cycle times.
Material Synergy: Successful application requires adhesives that chemically bond (co-vulcanize) with the green tire during the curing process rather than relying on standard tack.
Print Durability: High-durability thermal transfer printing with specialized resin ribbons is mandatory to maintain barcode contrast and scannability post-cure.
Testing is Non-Negotiable: Pilot testing against specific mold release agents and rubber compounds is required to mitigate implementation risks before full-scale deployment.

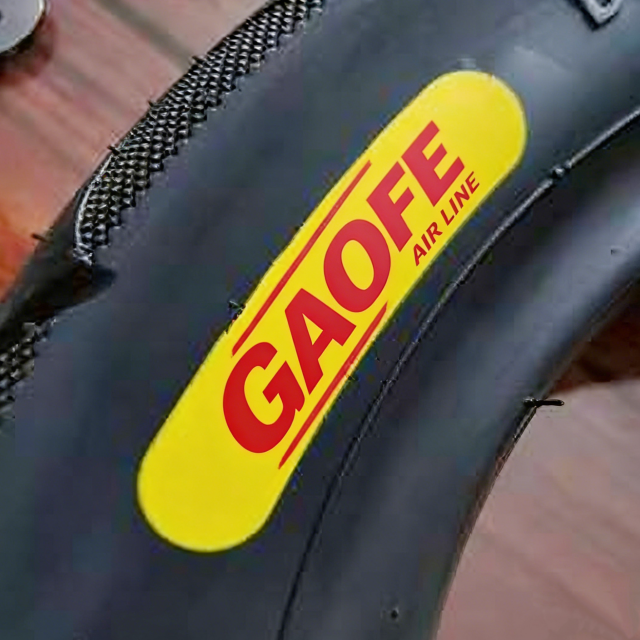

The Role of Vulcanized Tire Labels in Manufacturing Traceability
Why Standard Labels Fail During Curing
Standard synthetic labels undergo rapid physical degradation when exposed to vulcanization pressures and temperatures exceeding 150°C. The face stock warps, shrinks, or completely disintegrates inside the mold. Standard acrylic or rubber-based adhesives melt and carbonize under intense heat. They fail to cross-link with tire compounds, causing the label to detach as soon as the mold opens. When a standard label enters a curing press, the thermal shock immediately breaks down the adhesive polymers. The mechanical pressure from the curing bladder then shears the weakened label right off the green tire.
Mold release agents further complicate adhesion. These chemical barriers prevent the tire from sticking to the mold but also block standard adhesives from gripping the rubber surface. Without specialized co-vulcanizing properties, conventional labels simply slide off the sidewall during the curing cycle. Factory operators often find standard labels floating in the mold or stuck to the bladder, which requires stopping the press for cleaning and causes significant production downtime.
Furthermore, the chemical environment inside a curing press is highly reactive. Sulfur and other accelerators used to cure the rubber will attack standard label materials. The plasticizers in the green rubber migrate to the surface under heat, turning standard adhesives into a gooey, ineffective mess. This chemical incompatibility guarantees that non-specialized labels will fail, resulting in a completely untrackable tire.
Vulcanized Traceability Labels vs. Post-Cure Energy Labels
Pre-cure vulcanized labels serve internal work-in-progress (WIP) tracking, manufacturing control, and lifelong traceability. Operators apply them directly to the green tire before it enters the press. They permanently fuse with the rubber, remaining intact throughout the tire's lifespan. This permanent bond is critical for safety recalls, warranty claims, and retreading operations years down the line. The label becomes an indistinguishable part of the tire sidewall.
Post-cure consumer labels, such as EU Tire Energy Labels, indicate fuel efficiency, wet grip, and noise ratings. Manufacturers apply these after the tire cools down. Post-cure labels cannot survive the vulcanization press. They use standard heavy-coat adhesives designed to stick to cured rubber treads temporarily until the end-user removes them. Applying a post-cure label to a green tire is a guaranteed failure, as the paper or standard synthetic face stock will burn to ash inside the press.
Understanding this distinction is vital for procurement teams. You cannot substitute a post-cure label for a pre-cure application to save costs. The engineering requirements are entirely different. Pre-cure labels require advanced polymer science to survive the press, while post-cure labels focus on initial tack to rough, cured tread surfaces and clean removability for the consumer.
Defining Success: Adhesion, Readability, and Lifecycle Tracking
A successful vulcanized label demonstrates zero edge lifting and 100% barcode retention. It achieves permanent integration into the tire sidewall or bead area. The label must remain perfectly flat and legible after enduring the mechanical stress of mold expansion. If the edges lift even slightly, dirt and moisture will eventually penetrate the bond, leading to label loss during the tire's operational life on the road.
Traceability requirements map the tire's journey from manufacturing through warehousing, retail distribution, and end-user application. Reliable WIP tracking prevents component mix-ups on the factory floor. Permanent identification ensures rapid recall management and warranty verification years after the initial production date. A readable barcode allows automated sorting systems in massive distribution centers to route the tire correctly without manual intervention.
Success also means maintaining high contrast for optical scanners. The white background of the label must not yellow or scorch during curing, and the black printed barcode must not smudge or fade. Factory vision systems rely on this contrast to log the tire into the inventory management system automatically as it exits the curing line.
Core Material Requirements for Vulcanized Tire Labels

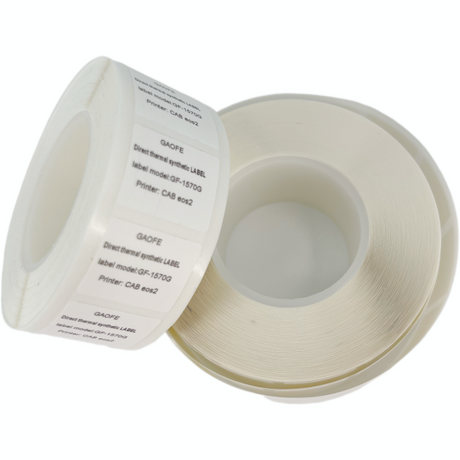

Substrate Durability: Polyester (PET) and Polyimide Options
Material selection dictates how well the label handles high heat and pressure. Polyester (PET) and Polyimide represent the two primary face stock options for extreme manufacturing environments. Engineers must evaluate the specific thermal profile of their presses to choose the correct substrate.
| Material Type | Temperature Resistance | Flexibility | Best Application |
| Polyester (PET) | Up to 150°C - 170°C | High | Standard passenger tires, curved sidewalls |
| Polyimide | Up to 210°C+ | Moderate to Low | Heavy commercial tires, extended curing cycles |
| Cross-linked Polymers | Up to 190°C | Moderate | Light truck and SUV tires |
PET offers excellent dimensional stability and flexibility. It conforms easily to tire curvature. Polyimide provides superior heat resistance but lacks the same flexibility. Engineers must balance rigidity to prevent barcode distortion against the flexibility needed to match mold expansion. If a rigid label is placed on a highly curved section of the tire, the mechanical forces during mold closure might crack the label or cause it to lift at the edges.
The thickness of the substrate also plays a role. Thicker materials resist embossing from the mold surface better, but they are harder to apply smoothly to the green tire. Thinner materials conform well but might allow the texture of the mold to ghost through, potentially distorting the barcode. Selecting the right caliper requires testing on the specific molds used in your facility.
Adhesive Chemistry: Co-Vulcanization and Chemical Composition Compatibility
Vulcanizable adhesives cure and cross-link simultaneously with the green tire rubber. Heat activates the adhesive chemistry, creating a permanent molecular bond. This process transforms the label into an integral part of the tire structure. Unlike pressure-sensitive adhesives that rely on surface tack, co-vulcanizing adhesives undergo a chemical reaction driven by the heat and pressure of the press.
Adhesive chemistry must match specific tire chemical compositions. Natural rubber requires different cross-linking agents than synthetic SBR blends. Passenger tire tread compounds behave differently than heavy commercial sidewalls. Component migration poses a significant challenge. Plasticizers, aromatic oils, and sulfur accelerators in the tire compound migrate to the surface during heating. These chemicals easily degrade non-compatible adhesives, leading to premature label failure.
To combat migration, advanced Vulcanized Tire Labels utilize barrier coats between the adhesive and the face stock. This prevents the migrating oils from reaching the printed surface and destroying the barcode. The adhesive itself is formulated to absorb specific amounts of sulfur from the green tire, using it to fuel the cross-linking reaction that binds the label to the rubber.
Post-Cure Environmental Resistance: UV, Moisture, and Warehousing
Post-manufacture environments subject labels to harsh conditions. Tires often sit in distributor yards exposed to direct sunlight, heavy rain, and extreme temperature fluctuations. Labels must feature UV-stable substrates and weather-resistant overcoats to prevent fading or peeling. A label that survives the curing press is useless if it becomes unreadable after six months in an outdoor storage yard.
Heavy stacking pressures in warehouses test the physical durability of the face stock. When tires are laced or stacked vertically, the labels can rub against the aggressive tread patterns of adjacent tires. The topcoat of the label must resist this severe abrasion to keep the barcode intact.
Labels also require high resistance to industrial chemicals. They must withstand exposure to sulfur, zinc oxide, automotive solvents, and aggressive cleaning agents without losing barcode contrast. During the mounting process, mechanics often use soapy water or specialized tire lubricants. The label must repel these liquids and remain firmly attached to the sidewall.
Navigating Temperature Resistance and Curing Profiles
Sustaining Peak Temperatures (150°C to 210°C)
Standard passenger tire curing generally operates between 150°C and 170°C. Heavy-duty commercial tires often push peak temperatures up to 210°C. Labels must survive these thermal spikes without degrading. The heat is transferred through steam or hot water inside the curing bladder, and through the heated metal mold on the outside.
Face stock yellowing or shrinking at peak temperatures destroys barcode readability. Specifying highly stabilized polymers prevents thermal distortion. The label must maintain its original dimensions to ensure scanner optical systems can read the printed data accurately. Even a 2% shrinkage in the face stock can alter the spacing of a 1D barcode enough to cause a failed scan.
Engineers must also account for temperature variations across the mold. The bead area might experience different thermal loads than the upper sidewall or the shoulder. Labels placed in hotter zones require higher thermal ratings. Mapping the temperature profile of the mold helps in selecting the exact material specification needed for reliable performance.
Time-at-Temperature: Extended Curing Cycle Considerations
Prolonged heat exposure severely impacts label integrity. Thick-tread off-road tires require significantly longer curing times than standard passenger tires. The longer the label sits inside the hot press, the higher the risk of material breakdown. A passenger tire might cure in 10 to 15 minutes, while a large earthmover tire might stay in the press for several hours.
Evaluating label specifications against specific time-at-temperature curves is critical. A label rated for 200°C might survive a five-minute cycle but fail completely during a thirty-minute cycle. Engineers must validate the exact thermal profile of their specific manufacturing presses. The cumulative heat load is often more destructive than the peak temperature alone.
For extended cycles, polyimide materials are usually mandatory. While more expensive than PET, they offer the thermal endurance required for long-duration curing. Attempting to use a standard PET label on a 45-minute commercial tire cycle will result in a charred, unreadable tag and a loss of traceability for a high-value asset.
Pressure, Mold Deflection, and Physical Construction
The mechanical pressure of the curing bladder forces the green tire against the mold. This intense pressure impacts the label surface directly. Label shape and die-cutting play crucial roles in resisting mechanical shear. Radius or rounded corners prevent edge-lifting during mold expansion. Sharp 90-degree corners create stress concentration points where peeling usually begins.
Preventing label embossing or ghosting is essential. If the mold surface imprints heavily onto the label, it distorts the printed image. This distortion renders 1D and 2D barcodes completely unscannable. Proper substrate thickness and protective topcoats mitigate this mechanical interference. Some manufacturers use a slightly textured topcoat on the label to diffuse the pressure and prevent the mold pattern from transferring to the barcode.
The placement of the label relative to mold vents is also critical. If a label is placed directly over a micro-vent, the escaping trapped air can blow a hole through the label or cause a massive blister. Operators must be trained to apply labels in designated safe zones on the green tire to avoid these mechanical hazards.
Evaluating Printing Methods for High-Heat Environments

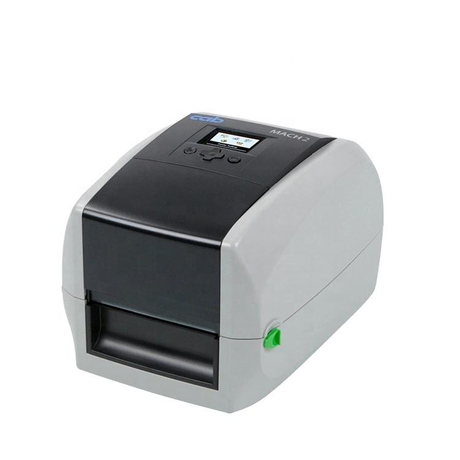

Thermal Transfer Printing: Resin Ribbon Selection
Thermal transfer printing stands as the industry standard for on-demand factory labeling. It produces crisp, high-contrast images capable of surviving harsh industrial processes. The technology uses a heated printhead to melt ink from a ribbon onto the label substrate, creating a durable bond.
Ultra-durable, heat-resistant resin ribbons are mandatory. Wax or wax-resin blends melt instantly inside the curing press. Pure resin ribbons cross-link with the label topcoat under printer heat, creating an indelible image. This prevents ink transfer, smudging, or fading during the vulcanization cycle. If you use a wax ribbon, the barcode will literally wash off the label as soon as the mold heats up.
Matching the specific resin ribbon to the label topcoat is a critical engineering task. Not all resin ribbons perform equally on all substrates. You must test the ribbon and label combination together in the actual curing press to verify that the ink does not offset onto the mold surface. Ink transfer to the mold requires shutting down the press for abrasive cleaning.
Pre-Printed vs. Print-on-Demand (In-House) Workflows
Purchasing pre-printed serialized labels offers operational simplicity. It eliminates printer maintenance and ribbon inventory management on the factory floor. However, it reduces flexibility for dynamic data requirements. If a production schedule changes suddenly, you might not have the correct pre-printed sequence available.
In-house print-on-demand systems allow immediate generation of batch numbers, timestamps, and unique identifiers. This workflow requires industrial thermal transfer printers equipped with high-resolution printheads. Heavy-duty vulcanized materials demand robust printer hardware capable of handling thick substrates and high print-head temperatures. Desktop printers will fail quickly under the demands of printing thick, rigid tire labels.
Maintaining print quality in a factory environment requires strict protocols. Dust, rubber particles, and airborne oils can contaminate the printhead, leading to dead pixels and unreadable barcodes. Regular cleaning schedules and enclosed printer cabinets are necessary to ensure consistent print-on-demand performance.

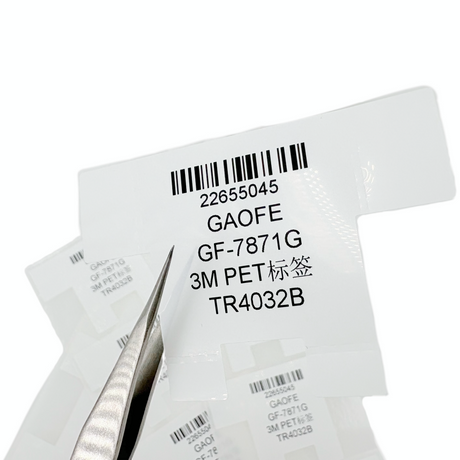

Barcode Scannability and Contrast Retention Post-Cure
Automated factory systems rely on flawless barcode scanning. Labels must meet strict ANSI/ISO barcode grading standards post-vulcanization. A grade of 'C' or higher is typically required for seamless automated scanning. The curing process naturally degrades contrast slightly, so the initial print must be a perfect grade 'A'.
Substrate finish interacts directly with factory lighting and scanner optics. Matte finishes reduce glare, improving readability for laser scanners and automated camera vision systems. Glossy finishes often reflect overhead lighting, causing scanner misreads and slowing down production lines. When specifying a label, always opt for a matte or satin topcoat to optimize optical scanning.
The size and density of the barcode also matter. High-density 2D DataMatrix codes offer robust error correction, allowing the scanner to read the data even if a small portion of the label is damaged. 1D barcodes require more physical space and are more susceptible to failure if a single bar is scratched or distorted during the curing process.
Implementation Risks and Mitigation Strategies
Surface Contamination and Mold Release Agents
Mold release agents represent the primary risk factor for label adhesion failure. Silicone-based and PTFE sprays create non-stick barriers on the mold surface. These chemicals frequently transfer to the label area, preventing the adhesive from bonding with the rubber. Even trace amounts of silicone can completely neutralize the co-vulcanizing properties of the label adhesive.
Mitigation strategies include applying specialized barrier coatings on the label surface. Modifying application zones to avoid heavy release agent concentrations also improves adhesion. Some facilities utilize localized chemical washing to prep the green tire surface before label placement. Alternatively, switching to water-based, silicone-free release agents can drastically improve label retention rates.
Operators must also ensure their hands or gloves are clean when applying the labels. Transferring oils or dirt from gloves to the adhesive side of the label will create a weak spot in the bond, leading to edge lifting after the tire exits the press.
Application Timing: Green Tire vs. Post-Cure Labeling
Applying labels to green tires requires precise timing and placement. Operators or robotic arms must position the label accurately to avoid mold interference. Proper placement ensures optimal co-vulcanization and prevents the label from sliding during mold closure. The green tire is tacky, but the label must be pressed down firmly to eliminate trapped air bubbles.
Post-cure labeling involves entirely different material requirements. Energy labels use aggressive rubber-based adhesives applied to cold, cured treads. Mixing up these workflows results in immediate label failure and lost traceability. A pre-cure label applied to a cold, cured tire will simply fall off, as it requires heat to activate the bonding chemistry.
Automation is increasingly used for green tire labeling. Robotic applicators ensure consistent placement pressure and exact positioning, eliminating the variability of manual application. This consistency is crucial for maintaining high barcode read rates downstream.
Testing Protocols: Validating Label Performance Before Scaling
Rigorous pilot testing prevents catastrophic production failures. Start with laboratory heat testing to verify substrate and ink stability. Move to small-batch press testing using actual green tires and production molds. Never roll out a new label specification across the entire factory without extensive validation.
Conduct laboratory thermal chamber tests to verify face stock stability at peak curing temperatures.
Perform ribbon compatibility tests to ensure the printed barcode does not offset or smudge under heat.
Run a small batch of 50 green tires through the standard curing presses to evaluate initial adhesion and edge lifting.
Scan all test tires with factory optical equipment to verify ANSI/ISO barcode grades post-cure.
Subject the cured test tires to simulated warehouse conditions, including UV exposure and chemical wipe-downs, to validate long-term durability.
Measure key performance indicators during the pilot phase. Track defect rates, barcode scan rates, and peel strength. Evaluate chemical migration resistance by storing cured test tires in simulated warehouse conditions for several weeks. Only after passing all these gates should you approve the material for full-scale production.
Compliance with Industry Standards (DOT, ECE)
Traceability mandates require permanent tire identification. Department of Transportation (DOT) regulations and Economic Commission for Europe (ECE) standards demand accurate lifecycle tracking. Vulcanized labels ensure manufacturers can trace specific batches back to the exact date and machine of origin. This data is critical during safety investigations or targeted product recalls.
Supplier capabilities matter immensely. Select partners who provide materials meeting global regulatory standards. Always request full technical data sheets (TDS) to verify temperature ratings, adhesive chemistry, and compliance certifications before implementation. A supplier should be able to provide documented proof of their label's performance under specific curing profiles.
Failure to maintain readable traceability data can result in severe regulatory fines and forced recalls of larger-than-necessary tire batches. By utilizing robust vulcanized labels, manufacturers protect themselves from these compliance risks and ensure they can pinpoint exact production runs instantly.
Conclusion
Define your maximum curing temperatures and time cycles accurately by mapping the thermal profiles of your specific presses.
Identify your specific rubber compound compatibility to ensure the label adhesive will properly co-vulcanize without degrading.
Select high-quality resin-based thermal transfer printing systems and validate ribbon compatibility to guarantee post-cure readability.
Mandate rigorous pilot testing across your actual production equipment, tracking defect rates and scan grades before scaling up.
Request comprehensive technical data sheets and sample rolls from specialized label engineering suppliers to begin factory-floor validation.
FAQ
Q: What is the maximum temperature vulcanized tire labels can withstand?
A: High-performance vulcanized labels typically withstand peak curing temperatures between 150°C and 210°C. Polyimide-based labels handle the upper end of this spectrum, making them suitable for heavy commercial tire manufacturing.
Q: How do vulcanized labels bond to green tires during manufacturing?
A: They use specialized cross-linking adhesives. During the heat and pressure of the curing cycle, the adhesive chemically reacts and co-vulcanizes with the green rubber, creating a permanent molecular bond.
Q: What is the best printing method for labels exposed to the vulcanization process?
A: Thermal transfer printing using pure resin ribbons is the industry standard. Resin ink withstands extreme heat and pressure without smudging, ensuring barcodes remain scannable after curing.
Q: Can mold release agents prevent vulcanized tire labels from adhering?
A: Yes. Silicone or PTFE-based mold release agents create a non-stick barrier that blocks adhesive bonding. Specialized label coatings and precise application positioning are required to mitigate this interference.
Q: What is the difference between a pre-cure vulcanized tire label and a post-cure tire energy label?
A: Pre-cure labels are applied to green tires, survive the vulcanization press, and provide permanent lifecycle traceability. Post-cure energy labels are applied to finished tires for retail display and cannot survive extreme heat.
Q: Do I need a special thermal transfer ribbon for printing vulcanized labels?
A: Yes. Standard wax or wax-resin ribbons will melt and blur inside the curing press. You must use ultra-durable, heat-resistant pure resin ribbons designed specifically for harsh industrial environments.
