Overview

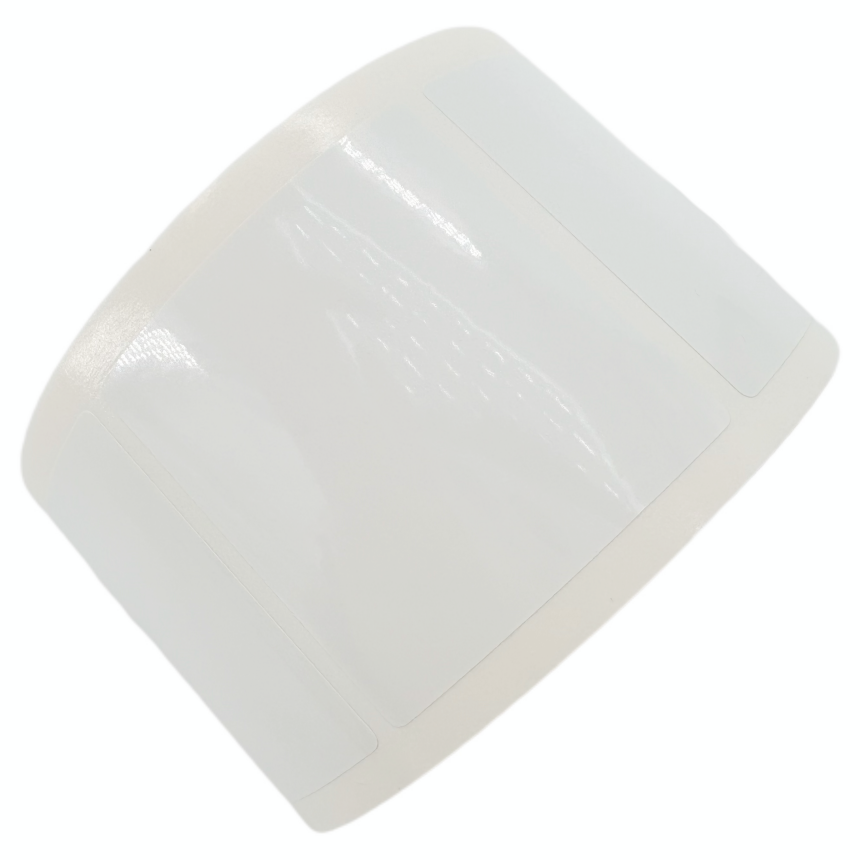

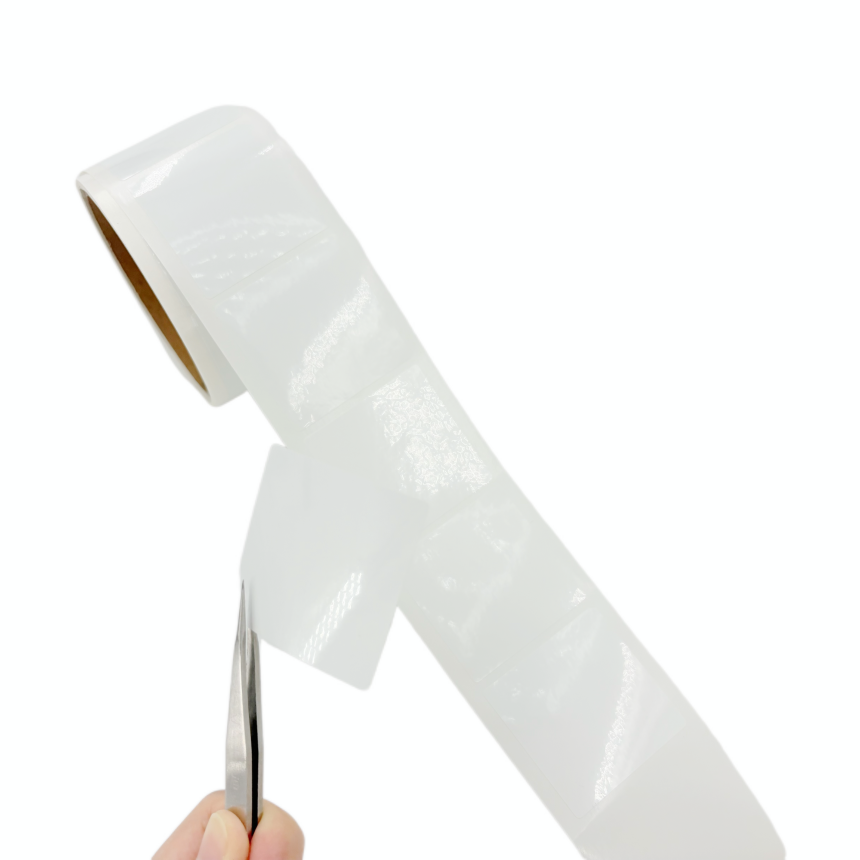

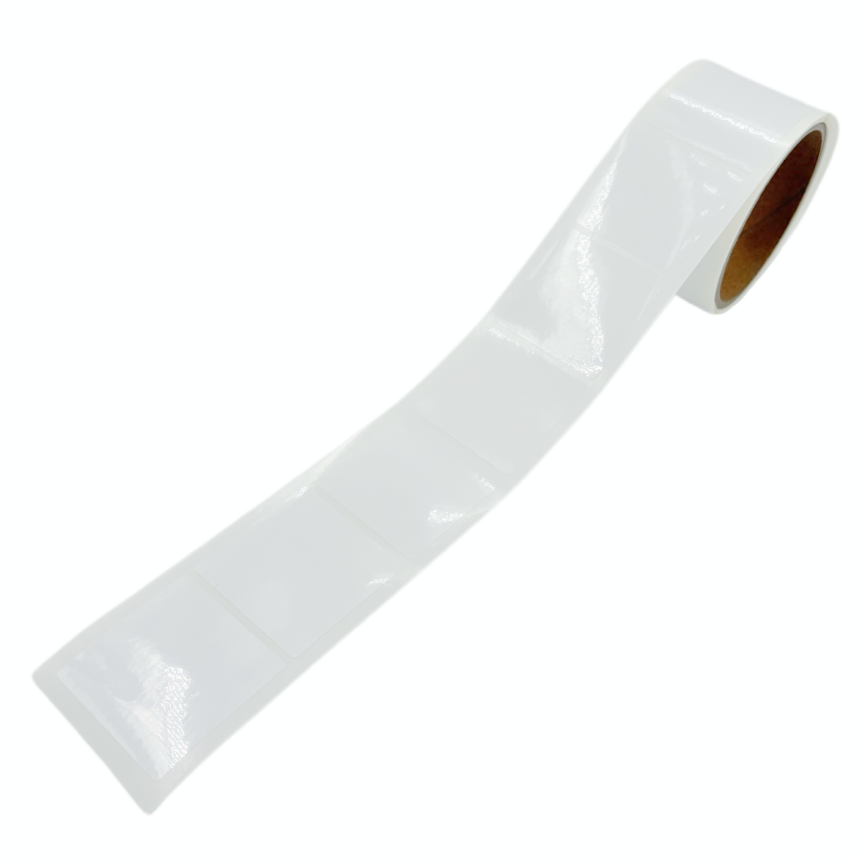

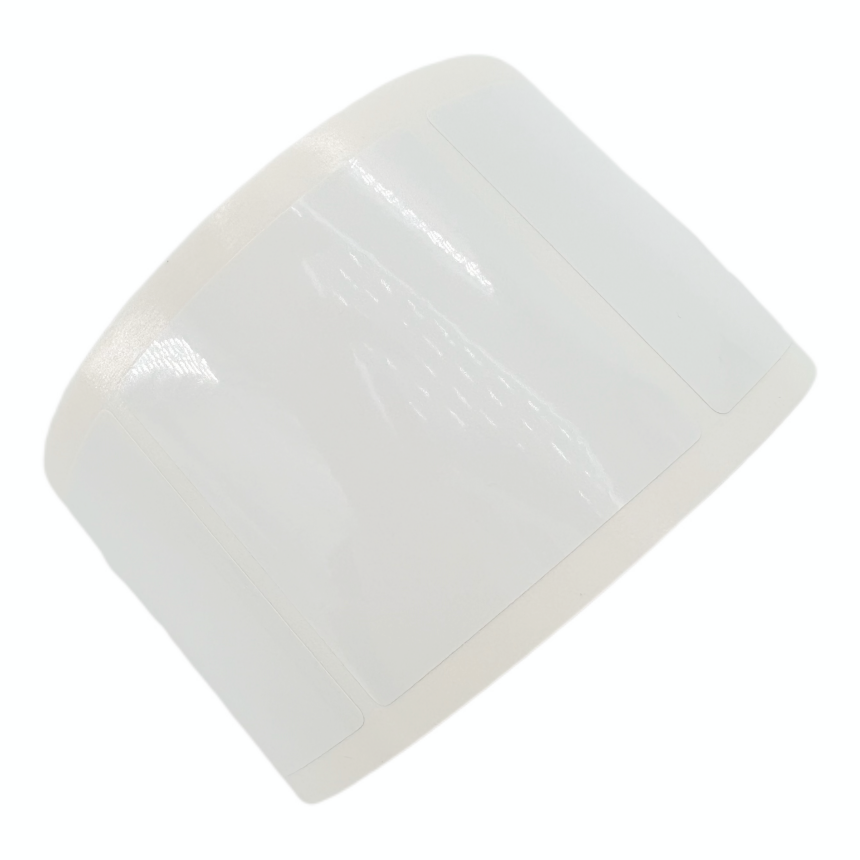

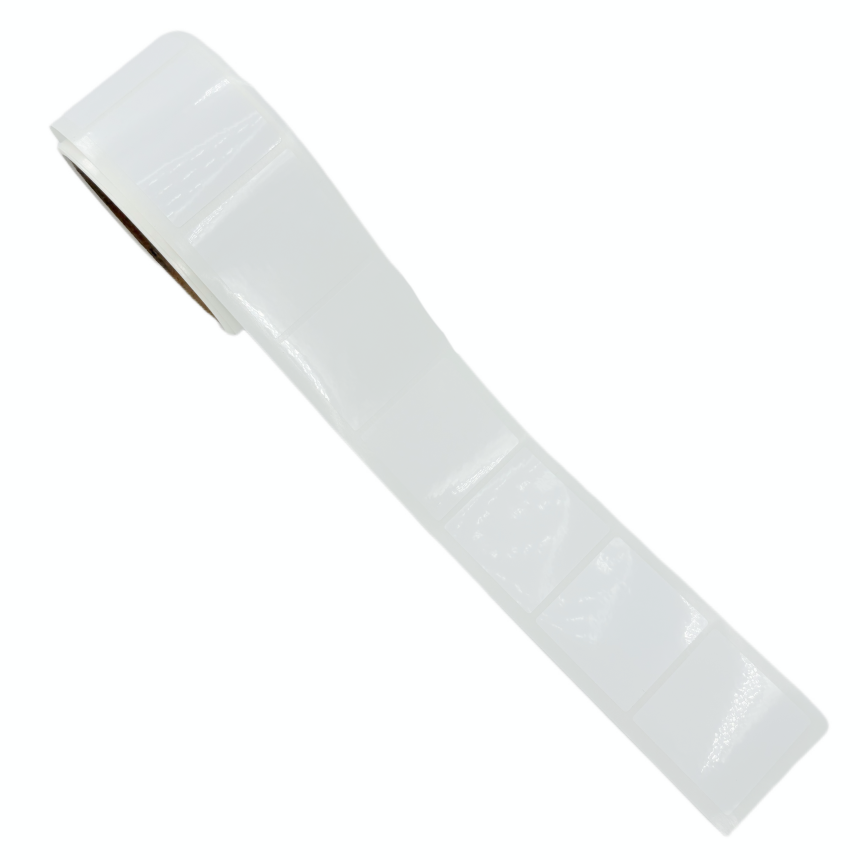

Label Model B-769G is a premium ESD-Safe cable label engineered for the precise demands of modern Data Center and Communication Systems. As part of the Network and Cable Labels category, it is constructed from Bright White Anti-static Polyester (PET) material. This specialized formulation prevents the buildup of static electricity, protecting sensitive network and electronic equipment from potential electrostatic discharge (ESD) damage. The label ensures reliable, long-term identification of patch cords, fiber optic cables, and critical wiring without compromising signal integrity or safety in static-sensitive environments.
Features
ESD-Safe Material: Prevents static charge accumulation, safeguarding sensitive hardware.
Signal Protection: Non-conductive and anti-static properties ensure no interference with data transmissions.
Durability: High-grade polyester (PET) offers excellent resistance to abrasion, chemicals, moisture, and heat.
Bright White Surface: Provides superior contrast for sharp, highly legible text and barcodes.
Permanent Adhesive: Ensures a strong, long-lasting bond on various cable jackets and surfaces.
Wide Temperature Range: Performs reliably in both extreme cold and hot conditions found in data centers.
Applications
Identifying patch cords and cables in server racks and network switches.
Labeling critical infrastructure in data centers and communication rooms.
Organizing fiber optic and high-speed data cables.
Marking wiring in static-sensitive electronics assembly and repair areas.
Asset identification and management for IT and telecom systems.
Optimal Printing Solutions
1. Recommended Ribbons:
Resin Ribbon TR4032B: https://www.dggaofe.com/Resin Ribbon TR4032B - Buy Resin ribbon Product on GAOFE https://www.dggaofe.com/Resin-Ribbon-TR4032B-pd551383948.html
This ribbon is specifically formulated to bond permanently with synthetic materials like polyester, creating extremely smear-proof, chemical-resistant, and durable images.
2. Recommended Printers:
CAB Squix4 Thermal Transfer Printer (600dpi): https://www.dggaofe.com/CAB-Squix-4-Industrial-Label-Printer-High-Efficiency-and-High-Resolution-Printer-pd563706548.html
This printer delivers high-resolution (600 dpi) output, ensuring crisp text, precise scannable barcodes, and efficient batch printing for professional labeling.
Other Options
NO.
| Name | Model |

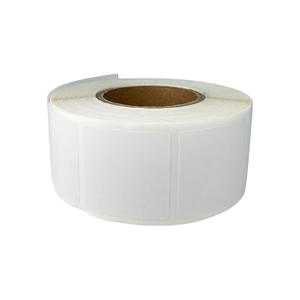

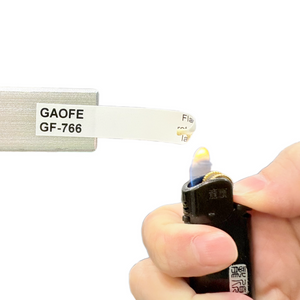

| 1 | Flame-Retardant Cable Labels | GF-766 |

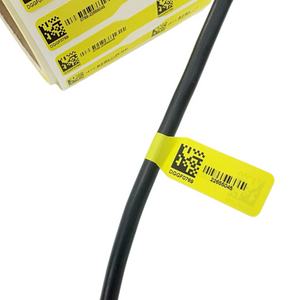

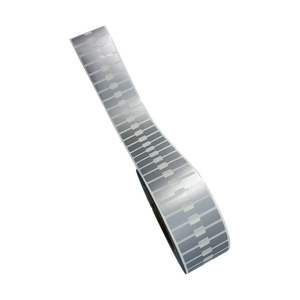

| 2 | Fold cable label | B-678G |

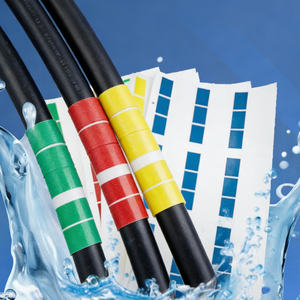

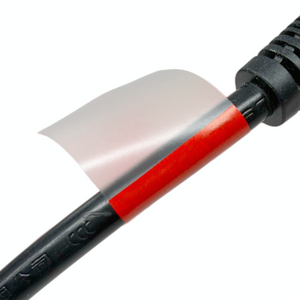

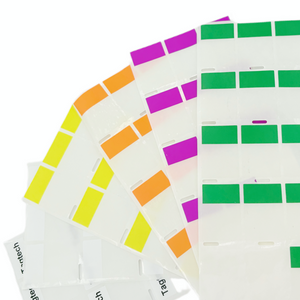

| 3 | Cable Wrap Labels | B-674G |

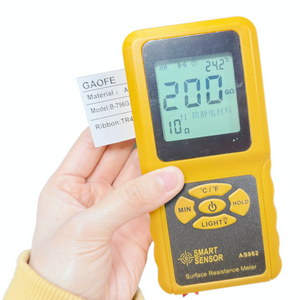

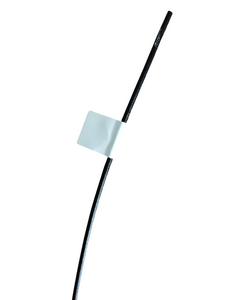

| 4 | Anti-static PI label | B-459G |
Specifications
| Category | Item | Specification / Value |
| Material Structure | Face Stock | 50# Bright White Anti-static Polyester (PET) |
| Thickness | 0.050 mm ± 0.005 mm |
| Basis Weight | 70 ± 5 g/m² |
| Adhesive | Permanent Acrylic |
| Thickness | 0.020 mm ± 0.002 mm |
| Basis Weight | 20 ± 2 g/m² |
| Liner | 80g White Glassine (Semi-transparent) |
| Thickness | 0.070 mm ± 0.005 mm |
| Basis Weight | 80 ± 5 g/m² |

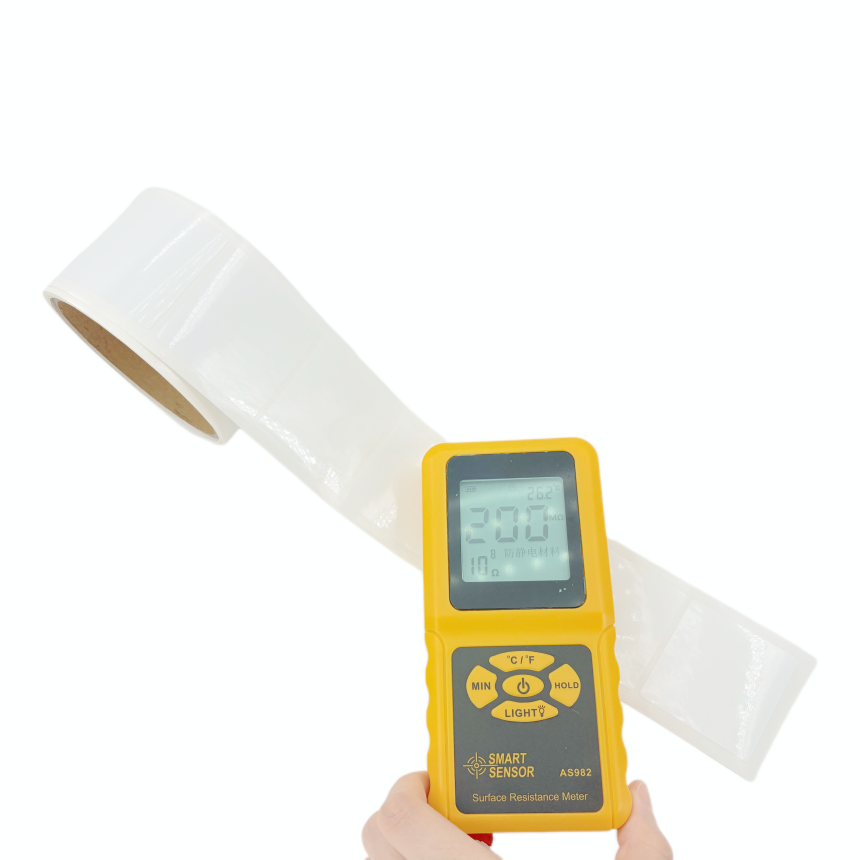

| Key Properties | Anti-static Index | 10⁸ |
| Static Voltage | ≤ 25V |
| Service Temperature Range | -20°C to 120°C |
| Adhesion (to Stainless Steel) | ≥ 6 N/in |
| Initial Tack | ≥ 3 (# Ball No.) |
| Cohesion (Holding Power) | ≥ 24 Hours |
| Surface Energy | ≥ 38 Dynes/cm |
| Weather Resistance | OK |
| Printability | Good |
| Barcode Scannability | OK |
| Storage & Standards | Shelf Life | 3 years (in sealed condition at 23°C, 50% RH) |
| Storage Conditions | 23°C, 50% RH (as specified) |
| Test Standards | Adhesion: GB/T2792-1998
Tack: GB/T4852-2002
Cohesion: GB/T4851-1998 |
